High-Visibility Ultra Red 3mm Dot Matrix LED Display

Name: High-Visibility Ultra Red 3mm Dot Matrix LED Display
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03572EUR1B-D
Price: 0.20 USD
Availability: InStock

Brand Name:	Light Bo
Model Number:	LB03572EUR1B-D
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	50000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Packing Size:

43.5 X 14.0 X 7mm

Pin Type:

DIP

Tube Chip Color:

Ultra White

Emitting Color:

Super Bright Red

Storage_Temperature:

-40°C To +100°C

Strength:

Long Lifetime

Emitting Colour:

Green/Red

Applications:

Battery Power

Life Time:

80,000 Hours

Life:

50000h

Surface Color:

Black Or Grey Color

Shipping:

By DHL TNT UPS EMS Etc.

Reverse Current:

10uA

Forward Current:

12-15mA

Pixels:

10mm

Packaging Details:

EPE+CARTON

Supply Ability:

50000 PCS/Day

Highlight:

high-visibility red dot matrix LED display

3mm ultra red LED display

7 segment dot matrix display

Product Description

High-Visibility Ultra Red 3mm Dot Matrix LED Display

Product Overview

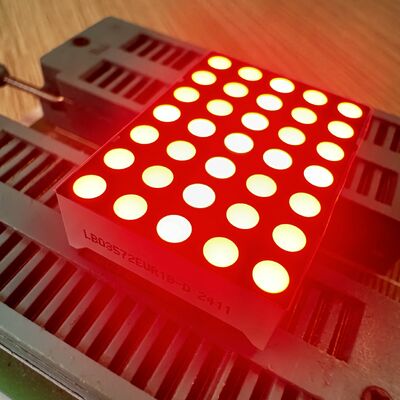

Ultra Red 3mm 5×7 Dot Matrix LED Display - Row Cathode for Display Screens

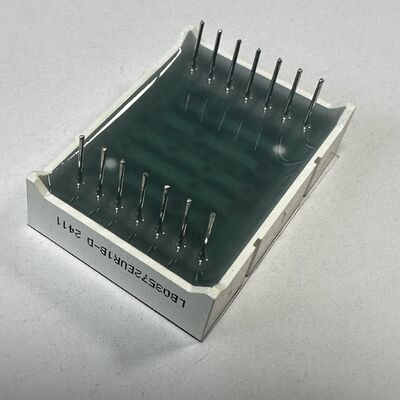

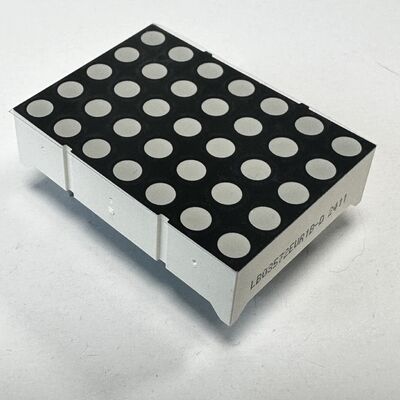

This high-visibility 5×7 dot matrix LED display is engineered for display screens, message boards, and indicator systems. Featuring an emitting dot diameter of 3mm and compact outer dimensions of 22.75 × 31.8 × 8.5mm, it delivers exceptional readability in various lighting conditions.

Key Features

5×7 dot matrix LED display with 3mm emitting dot diameter
Compact outer dimensions: 22.75 × 31.8 × 8.5mm
Row cathode and column anode connection configuration
Ultra bright red LED illumination (620-625nm wavelength)
Luminous intensity of 80-100mcd for clear visibility
Low forward voltage: 1.8-2.2V per LED
High luminous intensity with low power consumption
Stable performance across wide operating conditions
Long operational lifespan
Continuous uniformity of light across all dots
Easy assembly with standard through-hole pins
Compatible with common driver ICs and microcontrollers
RoHS compliant for international environmental standards
Multiple emitting colors available including red, blue, yellow, green, orange, white, and amber

Applications

Lift position indicators and elevator floor displays
Moving signs and message boards
Display screens and information panels
Home appliances and consumer electronics
Industrial control panels and status indicators
Public information displays
Custom LED screen assemblies
OEM display solutions

Technical Specifications

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Electrical & Optical Characteristics

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Manufacturer Information

SHENZHEN GUANGZHIBAO TECHNOLOGY CO., LTD. (BRAND: LIGHT-BO) - Established in 2006, we are an ISO 9001:2015 certified company specializing in R&D, manufacturing, and sales of optoelectronic LED displays. With over 15 years of OEM and ODM experience, LIGHTBO is committed to providing high-quality, cost-effective customized solutions to enhance customer competitiveness.

Product Applications

7 Segment LED Display, Customized LED Display, Numeric LED Display, Dot Matrix LED Display - widely used for home appliances, temperature indicators, humidity indicators, refrigerator controllers, thermostat indicators, heating and cooling control systems, and more.
