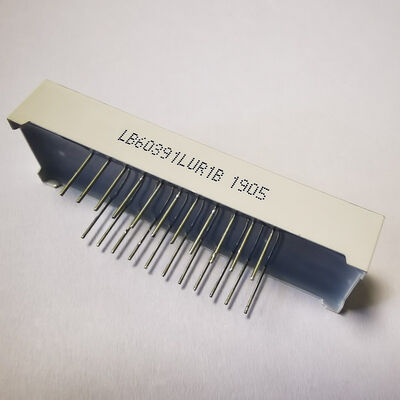

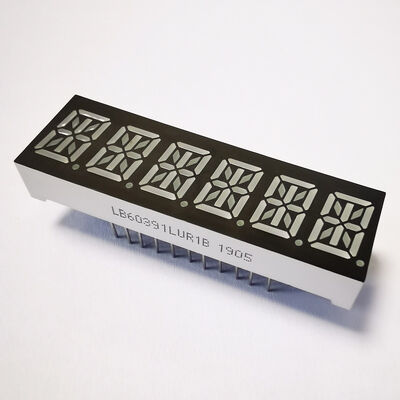

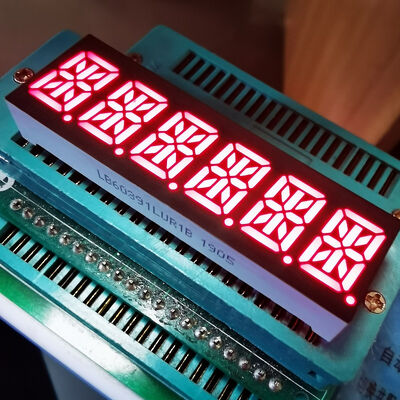

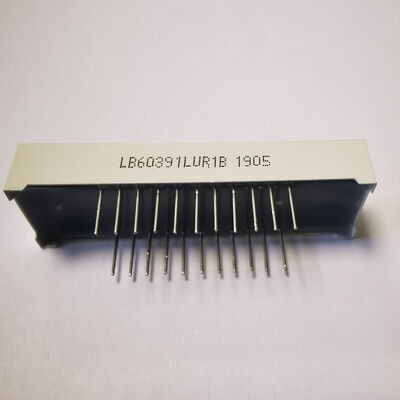

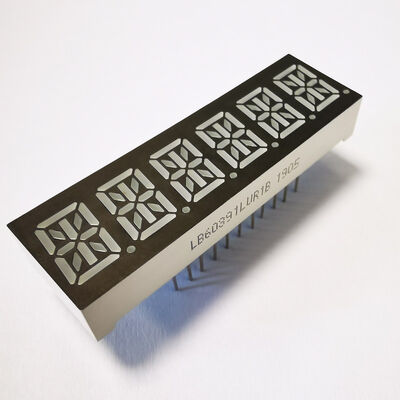

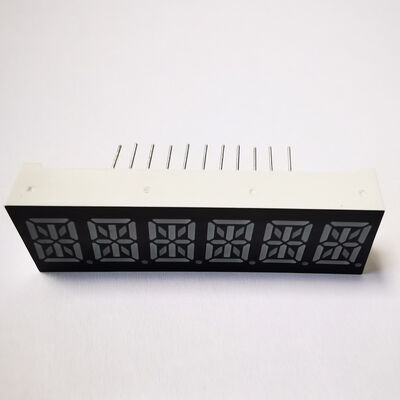

Ultra Bright Red 10mm 6 Digit 14 Segment Alphanumeric LED Display Common Cathode for Taximeter

Name: Ultra Bright Red 10mm 6 Digit 14 Segment Alphanumeric LED Display Common Cathode for Taximeter
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB60391LUR1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHTBO
Model Number:	LB60391LUR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT,Western Union
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&ROHS

Polarity:

Common Anode

Emitting Color:

Ultra Bright Red

Digit Height:

10mm (0.39")

Dimensions:

49*15*9mm

Forward Voltage:

1.8-2.2v/LED

Forward Current:

5-10mA/ LED

Wavelength:

620-625nm

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

14-segment LED display with high brightness

14-segment LED display for clear visibility

14-segment LED display with superior clarity

Product Description

Ultra Bright Red 10mm 6 Digit 14 Segment Alphanumeric LED Display Common Cathode for Taximeter

Descriptions	Custom 6-Digit 14 Segment Alphanumeric LED Display
Dimensions	49159mm
Digit height	10mm (0.39")
Polarity	Common cathode
Elitting Color	Ultra bright red
Wavelength	620-625nm
Luminous Intensity	80-100mcd/LED
Forward voltage	1.8-2.2v/LED
Forward current	5-10mA/ LED

Emitting Colors: Available in red, blue, yellow green, pure green, amber, orange and pure white

Custom design
High luminous intensity and reliability
Low power consumtion
Stable performance
Continuous uniform segments
Easy mounting
IC Compatible
Long lifetime
Meet RoHS Compliant

Applicaton :
Widely used for digital indicators, taximeters,instrument panel and so on .

Ultra Bright Red 10mm 6 Digit 14 Segment Alphanumeric LED Display Common Cathode for Taximeter

Key Features

High forward voltage for superior luminous intensity output
Low power consumption
Extremely low current operation
Evenly distributed luminous intensity across each segment
Industrial standard size compatibility
Excellent reliability in bright ambient light conditions
Stable performance characteristics
Long operational lifetime
Compliant with RoHS/REACH standards

Applications

Audio equipment and instrument panels
Home electronic appliances
Numeric display systems
Multimedia products
Digital indicators for temperature, humidity, and process monitoring
Refrigerator temperature controllers
Thermostat indicators
Heating and cooling control systems

Technical Parameters

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Yellow Green (Code: J)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green (Code: G)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
