DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White

Brand Name: LIGHTBO
Model Number: LB40381EWH-S
MOQ: 1000PCS
Price: Negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Name:
Common Cathode Four Digit 7 Segment Display Module
Character Height:
9.92mm ( 0.38")
Polarity:
Common Anode /Common Cathode
Face Color:
Black
Emitting Colour:
Available In Red,blue,green,white, Amber, Orange
Pin Type:
DIP /SMD
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

low power 7 segment display

,

seven segment led display

Product Description



Custom LED Display , Common Cathode 7 Segment Display Pure White





Quick details



  • 7 Segment LED Display
  • 9.92mm ( 0.38")
  • Black Face Color
  • DIP /SMD Pin type
  • for home appliance, Digital Oven Timer
  • Common Cathode





Description:



Package Dimensions 44  16 x 11.85 mm
Character height 9.92mm ( 0.38")
Polarity Common Anode /Common Cathode
Face Color Black
Emitting Colour Available in red,blue,green,white, amber, orange
Pin type  DIP /SMD
Operating temperature Max. +125 ℃





Package Dimensions & Internal Circuit Diagram:

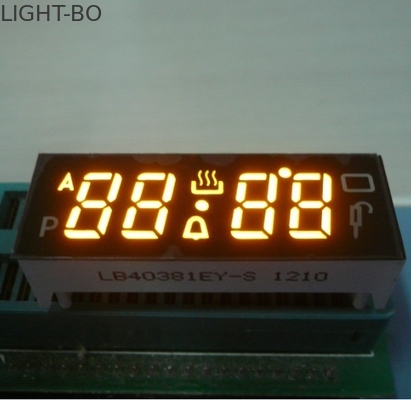

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 0



Application :





Application : Ideal for home appliances , Built-in Oven Control,Multifunction Digital Oven Timer Control

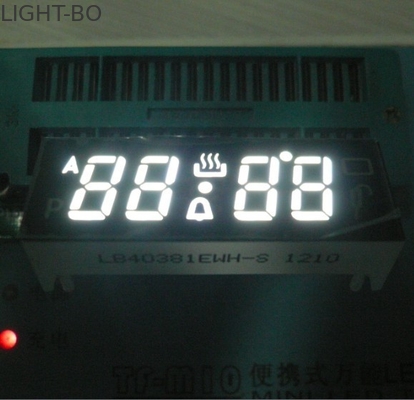

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 1

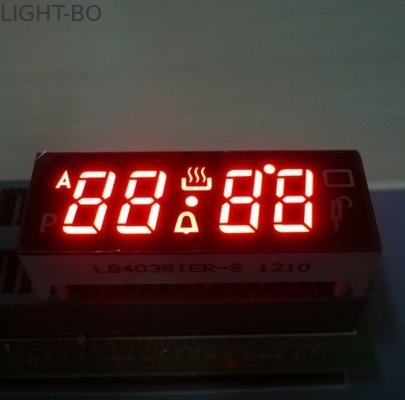

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 2

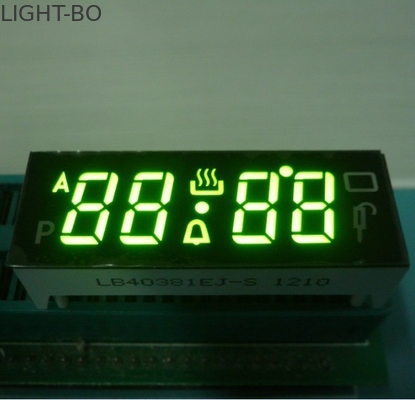

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 3

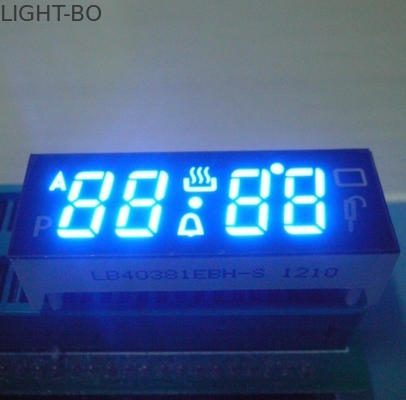

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 4

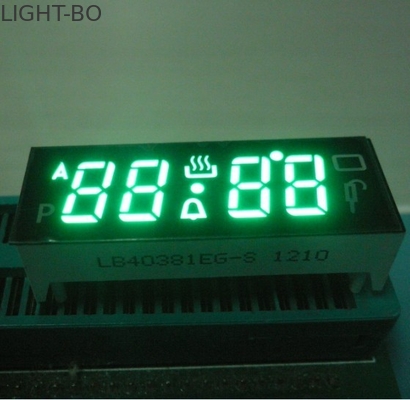

DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 5DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 6DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 7DIP /SMD Pin Custom LED Display , Common Cathode 7 Segment Display Pure White 8
