Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display
Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display

Large Image :  Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB20561DBH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display

Description
Digit Height:: 14.2mm ( 0.56 Inches) Outer Dimensions: 25x19mm
Colour: Ultra Bright Blue Polarity: Common Cathode
Surface: White Segment Black Surface
High Light:

seven segment led display

,

low power 7 segment display



Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display



Product Description:



1.  Height: 0.56 inch (14.20mm)

2. Outer dimensions: 25 x 19mm

3. Polarity: common anode/cathode

4. Made with white segment black surface



Product Feature:



1. High luminous intensity and reliability

2. Low power requirement

3. Stable performance

4 . long lifetime

5. Easy mounting on PC Boards

6. Easy assembly

7. IC compatible

8. Meet RoHS Compliant

Widely used in instrument panels ,home appliances,and digital numeric displays ,digital indicators

Customized requirements can be meet.



Why choose us?



 1. Your inquiry related to our products will be replied in 24 hours.

 2. Experienced staffs to answer your inquiries in fluent English.

 3. Providing OEM and ODM service for more than 10 years.

 4. Protection of your sales area, ideas of design and all your private information.

 5. No matter big order or small order, we will serve you with best quality and best service.

 6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.

 7. If you become our VIP,you will enjoy more preferential policy.



We Promise:



1. Your inquiry related to our products or prices will be replied in 24 hours.

2. Experienced staffs to answer all your enquires in fluent English.

3. We are doing the OEM and ODM service for more than 10 years.

4. Protection of your sales area, ideas of design and all your private information.

5. No matter big order or small order , we will provide all the best  quality , best service.

6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.

7. High brightness and low power consumption .

8. If our products have any problem , we will send free in the next  order if it is our mistake.





Code:W-Ultra Bright Blue


Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 460   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃

Absolute Maximum Ratings (Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260

5. Emitting color: ultra bright red, ultra bright blue, yellow green, pure green, pure white, amber and orange

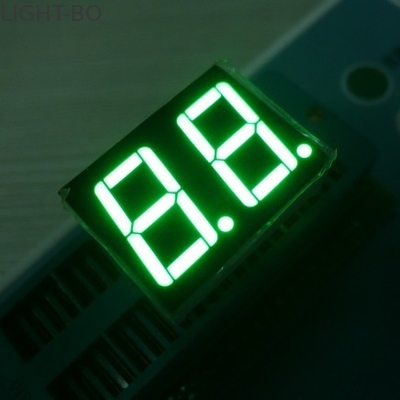

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display 0

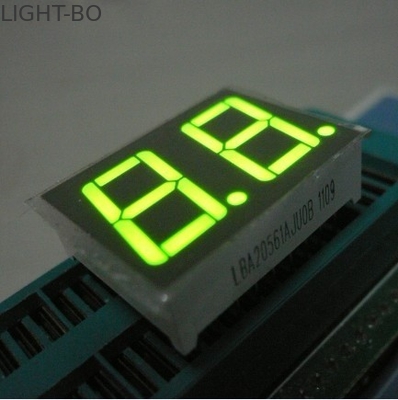

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display 1

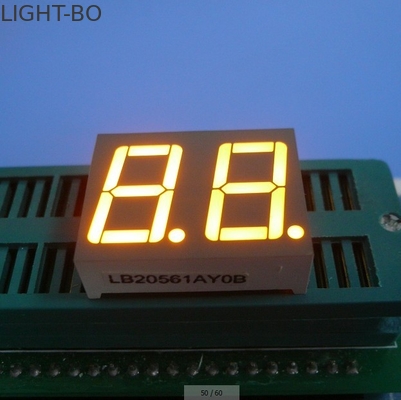

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display 2

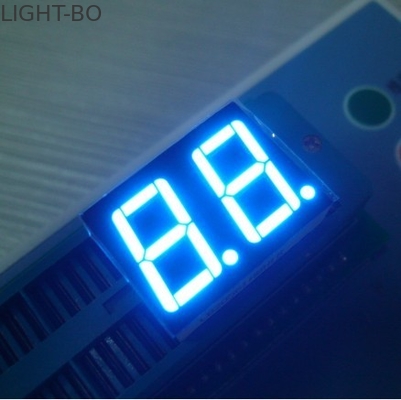

Common Cathode 7 Segment Led Display / Easy Assembly Led Seven Segment Display 3
