10mm Large Triple Digit Seven Segment Black Face Led Display

Description
Package Dimension: 30.02x12.8 X 7 Mm Character Height: 10.00mm ( 0.39")
Polarity: Common Anode Colour: Ultra White
Highlight:

7 segment numeric display

,

low power 7 segment display



Triple - Digit 10mm Large 7 Segment Led Black Face Seven Segment Display



Product Description:


Outer dimension: 30.02x12.8 x 7 mm
Character height: 10mm (0.39-inch)
Polarity: CC/CA
White segments Black face
Emitting colors: available in red, yellow green, pure green, pure white, blue, amber and orange


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright White
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=40uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Chromaticity Coordinates X If=20mA 0.29   0.33 nm
Chromaticity Coordinates Y If=20mA 0.29   0.33 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃



Feature:


High luminous intensity
Low power consumption
Extremely low current
Stable performance
big viewing angle
Continous uniform segments
Long lifespan
IC Compatible
Easy assembly
Meet RoHS Compliant


Applicatiom:


Widely used for air conditioner controllers, temperature controllers and digital indicators,home appliances,instrument panels and so on .



Product Photo:

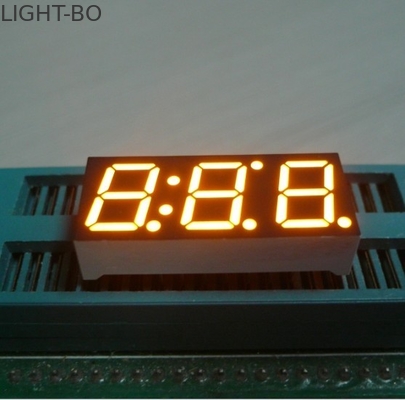

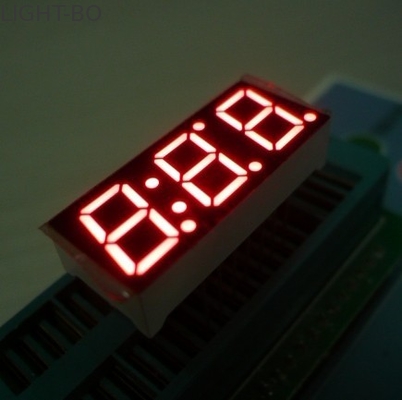

10mm Large Triple Digit Seven Segment Black Face Led Display 010mm Large Triple Digit Seven Segment Black Face Led Display 1

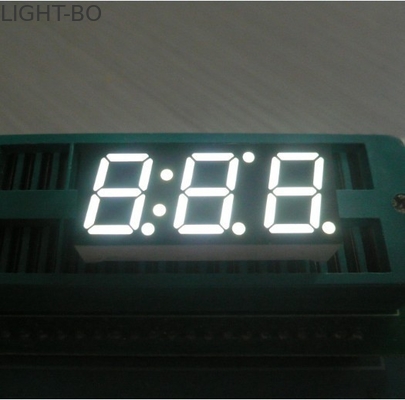

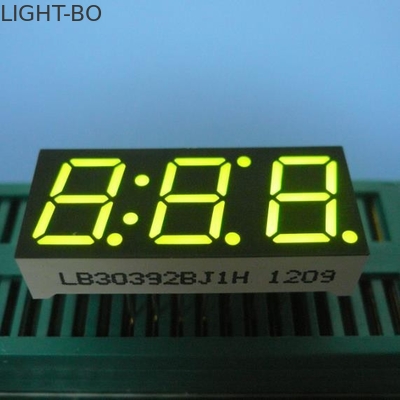

10mm Large Triple Digit Seven Segment Black Face Led Display 210mm Large Triple Digit Seven Segment Black Face Led Display 3
Dimensions and Circuit diagram:
10mm Large Triple Digit Seven Segment Black Face Led Display 4
