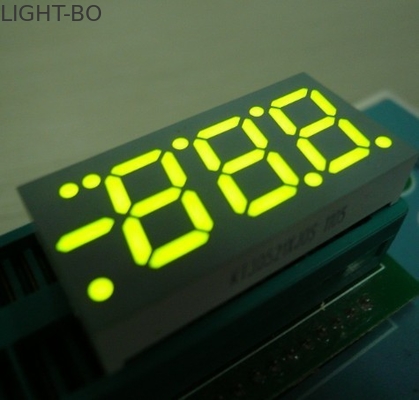

Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible

Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible
Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible

Large Image :  Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB30521XJ0S
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible

Description
Outer Dimension: 38.5x19X8mm Digit Height: 0.52 Inch (13.2mm)
Polarity:: Common Anode Colour: Super Green
High Light:

seven segment led display

,

low power 7 segment display

Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible

Description:
Character height: 0.52 inches (13.2mm)
Outer dimensions: 38.5 x 19 x 8mm
Polarity: common anode
Made with white segments and gray surface
Emitting colors: red , blue , green , white , amber , yellow and orange

Feature:
High luminous intensity
Low power consumption
Extremely low current
Stable performance
Good consistency
Big viewing angle
Longe lifetime
IC Compatible
Easy assembly
Meet RoHS Compliant

Applications:
Audio equipments or instrument panels
Home electronic appliances and air conditioner controllers
General use for digital indicators
Multimedia products
Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260


Code:J-Ultra Bright Green

Parameter Sym
bol
Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 40   50 mcd
Spectrum With Of Half Value If=20mA   30   nm
Wavelength D If=20mA 569   573 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 70 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃


Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible 0Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible 1
Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible 2Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible 3
Stable Ultra Bright Green Small 7 Segment Led Display IC Compatible 4
