Product Details:
|
| Dimensions: | 39x17.5x7.5mm | Polarity: | Common Anode |
|---|---|---|---|
| Colour: | ULTRA Bright Blue | Wavelength: | 462-465nm |
| Luminous Intensity: | 80-100mcd | Forward Voltage: | 2.8-3.3v/led |
| Forward Current: | 12-15mA | ||
| High Light: | 7 segment numeric display,seven segment led display |
||
Custom ultra blue common anode Seven Segment Led Display Apply To Digital Temperature Controller
Product Description:
Dimensions: 39*17.5*7.5mm
Polarity: Common Anode
Color: ultra bright blue
Wavelength:462-465nm
Luminous intensity: 80-100mcd
Forward voltage: 2.8-3.3V/led
Forward current: 12-15mA/led
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Product Feature:
High luminous intensity and reliability
Low power consumption
Stable performance
Contiunous uniform segments
Easy mounting on PCB
IC Compatible
Long lifetime
Meet RoHS
Code: W-Ultra Bright Blue
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | 3.3 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 30 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 462 | 465 | nm | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||
Application:
Widely used for digital temperature indicators,humidity indicators,home appliances, instrument panels and so on.
Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 9 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.

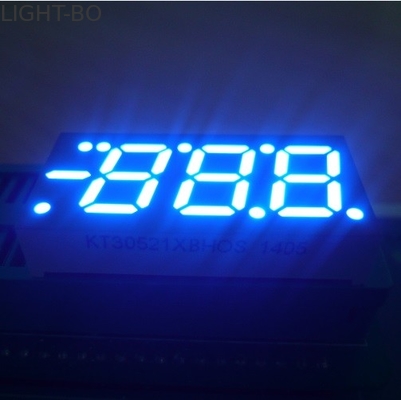

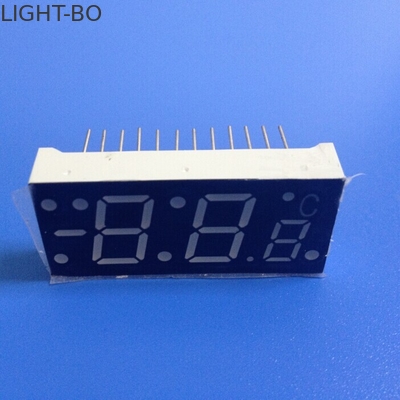

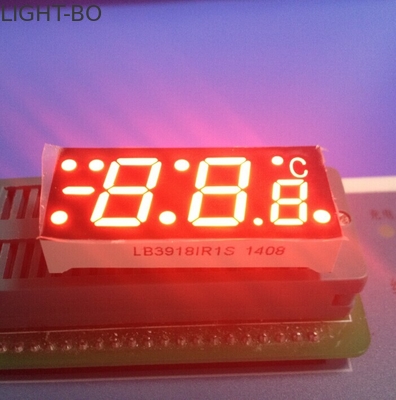

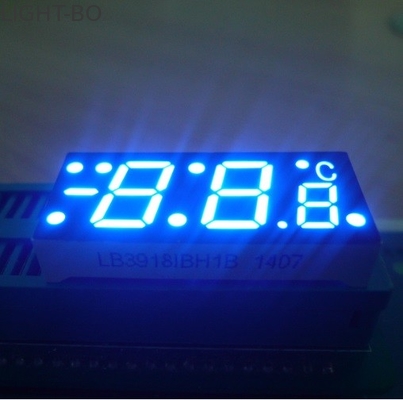

Product Picture:
