| Brand Name: | LIGHTBO |
| Model Number: | LB20561IWH1B |
| MOQ: | 1000PCS |
| Price: | negotiable |
| Payment Terms: | TT in advance& Western Union |
| Supply Ability: | 50000PCS/Day |

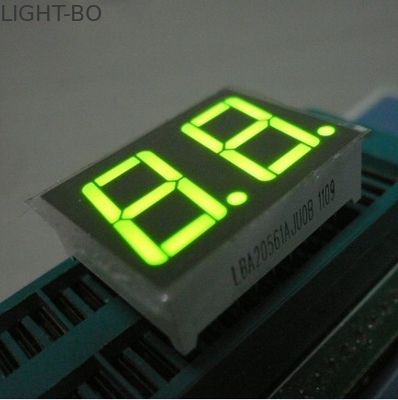

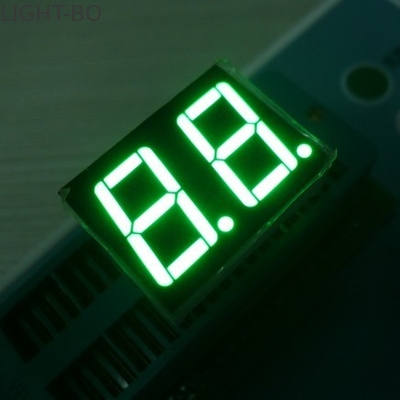

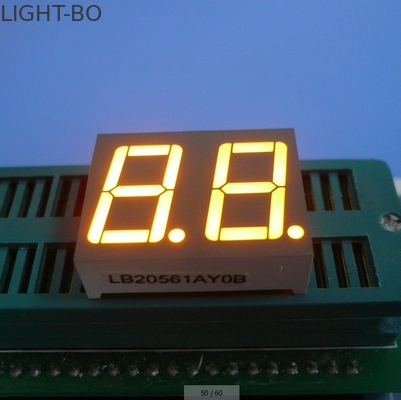

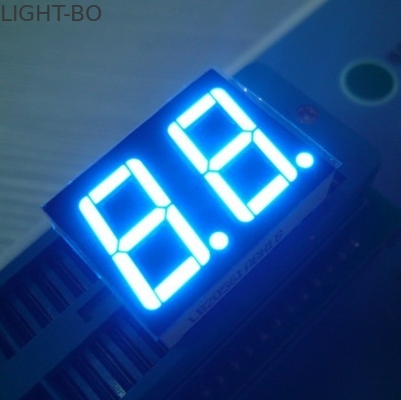

Long Lifetime Ultra White 7 Segment Led Displays 2 Digit For Home Applications
Product Description:
Height: 0.56 inch (14.20mm)
Outer dimensions: 25 x 19 x 8 mm
Polarity: common anode/cathode
Emitting color: ultra bright red, ultra bright blue, yellow green, pure green, pure white, amber and orange
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |

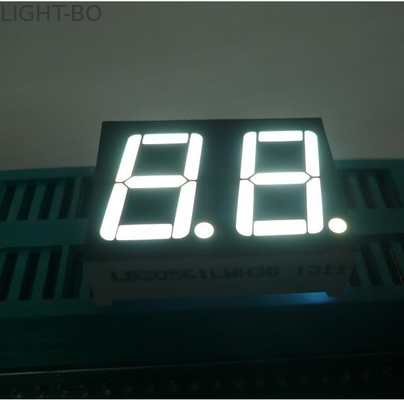

Code:W-Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | 3.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=40uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | 120 | mcd | |
| Chromaticity Coordinates | X | If=20mA | 0.29 | 0.33 | nm | |
| Chromaticity Coordinates | Y | If=20mA | 0.29 | 0.33 | nm | |
| Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse | Ifp | 100 | mA | |||
| Operating Temperature Range | Torp | -35℃～+85℃ | ||||
| Storage Temperature Range | Tstg | -35℃～+85℃ | ||||
| SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃ | ||||||
| Absolute Maximum Rating at Ta=25℃ | ||||||
Product Feature:
High luminous intensity and reliability
Low power requirement
Stable performance
long lifetime
Easy assembly
IC compatible
Meet RoHS Compliant
Product Application:
Widely used in instrument panels ,home appliances,and digital numeric displays ,digital indicators and so on.
We Promise:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next order if it is our mistake.
