Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch

Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch

Brand Name: LIGHTBO
Model Number: LB30401LR0B
MOQ: 1000PCS
Price: negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Character Height:
0.4"( 10.16mm)
Outer Dimensions:
30.1 X 16 X 7 Mm
Polarity:
Common Cathode
Emitting Colour:
Super Bright Red
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

seven segment led display

,

low power 7 segment display

Product Description



Super Bright Red 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch



Product Description:



Character height 0.4"( 10.16mm)
Outer dimensions 30.1 x 16 x 7 mm
Polarity Common cathode
Emitting colours

red, blue, green, white, amber, orange and yellow





Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260

Code:R-Super Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 50   60 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength  Dλ If=20mA 630   635 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃



Product Feature:



1.Forward voltage (high luminous intensity output)

2.Low power consumption

3.Extremely low current

4.Luminous evenly distributed on each segment

5.Industrial standard size

6.Provides excellent reliability in bright ambient light

7.Stable performance

8.Long lifetime

9.Meet RoHS compliant



Applications:

1.Audio equipments or instrument panels

2.Home electronic appliances

3.Numeric displays

4.Multimedia products

5.General use for digital indicators,temperature indiators, humidity indicators,process indicators,and so on .

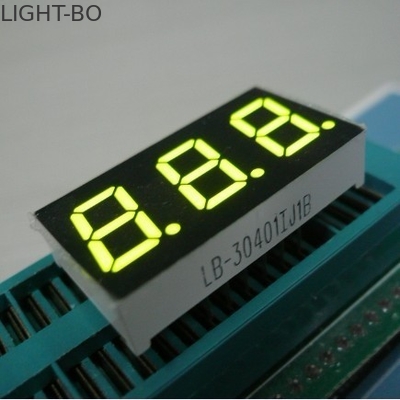

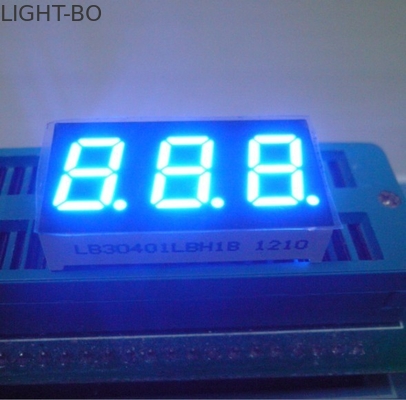

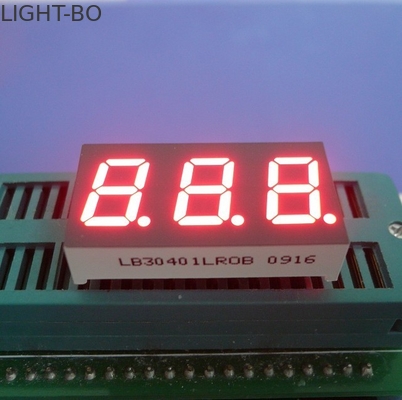

Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch 0Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch 1

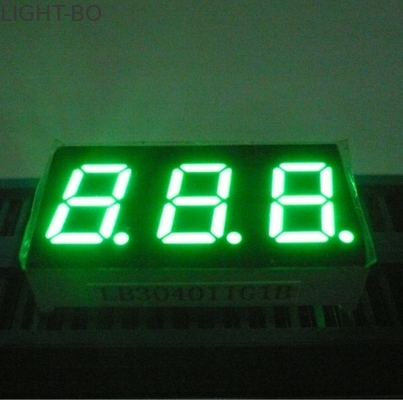

Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch 2Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch 3

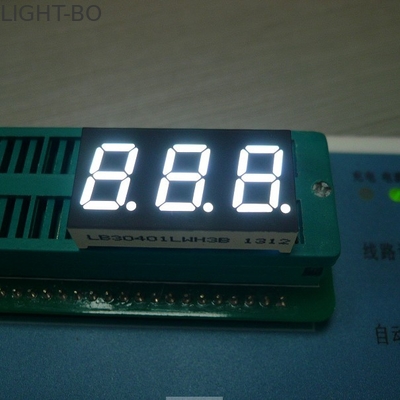

Super Bright Red Green Blue Yellow White 3 Digit 7 Segment Led Display Common Cathode 0.40 Inch 4
