Product Details:
|
| Brand Name:: | Light-Bo | Character Height::: | 14.2mm (0.56 Inch) |
|---|---|---|---|
| Package Dimensions:: | 76 X 19 X 8 Mm | Polarity:: | Common Anode |
| Color:: | Super Bright Red | ||
| High Light: | 7 segment numeric display,seven segment led display |
||

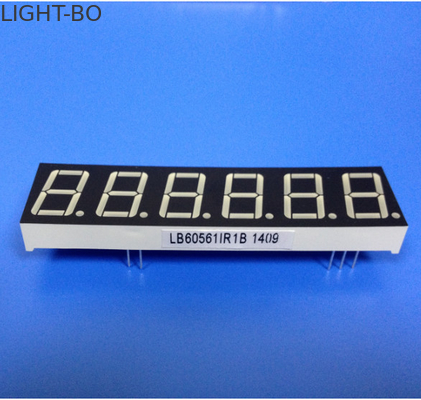

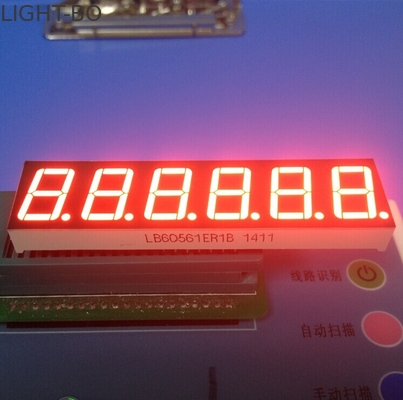

6 Digit 0.56 Inch Ultra Bright Red 7 Segment Led Display For Weighing Scale
Product Descriptions:
Package Dimensions :63 x 19 x 8 mm
Character Height : 14.2mm (0.56 inch )
Polarity: Common cathode/anode
White Segments Black Face
Emitting Colour:red,green,yellow,orange,blue,white.
Product Features:
RoHS Directive-compliant
High Luminous intensity output
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Continuous uniform segments
Easy mounting on PC Boards and sockets
Long lifetime
Meet RoHS Compliant
OEM and ODM orders are accepted
Applications:
Widely used in set-top boxes, oven timer control,home appliances and instrument panels, clock displays, digital timers and so on .
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:UR(Ultra Bright Red)
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 80 | 100 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 622 | 625 | nm | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||
Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If our products have any problem , we will send free in the next order if it is our mistake.
8.We are doing the OEM and ODM service for more than 10 years.
Product Pictures:
