Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch common anode For Instrument Panel

Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel
Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel

Large Image :  Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch common anode For Instrument Panel

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB40562AG0B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch common anode For Instrument Panel

Description
Digit Height: 14.2mm (0.56 Inch) Packing Size: 50.3 X 19 X 8mm
Polarity: Common Anode Color: Pure Green
High Light:

digital clock display

,

common anode 7 segment display

Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch common anode For Instrument Panel​



Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 0
Product Descriptions:

Digital height: 14.2mm (0.56 inch)
Packing size: 50.3 x 19 x 8mm
Polarity: Common anode
LED Color:pure green

Wavelength:525-535nm

Luminous intensity:120-140mcd

Forward voltage:2.8-3.5V/led

Forward current:10-15mA/led
Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260


Code:R(Super Red)


Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 120   140 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength  Dλ If=20mA 525   535 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃

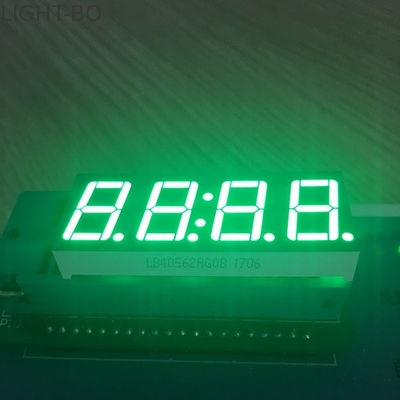

Product Pictures:

Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 1Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 2
Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 3



Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 4Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 5Pure Green 4 Digit 7 Segment Led clock Display 0.56 Inch  common anode For Instrument Panel 0
