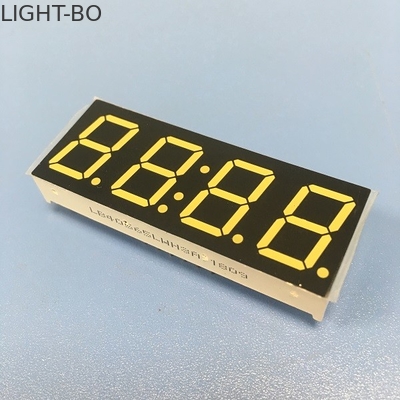

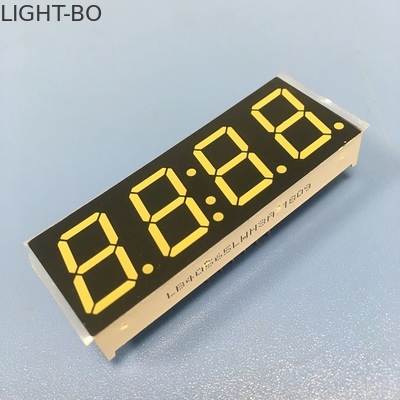

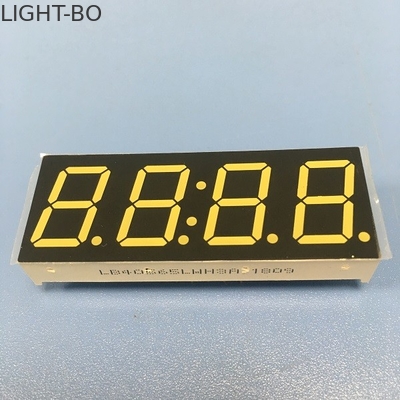

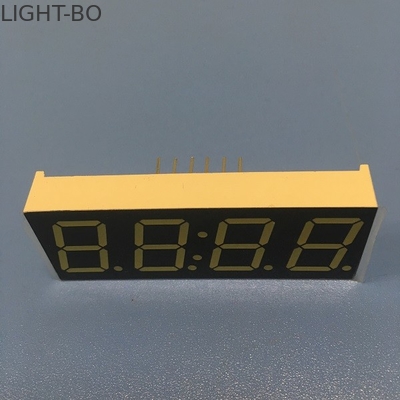

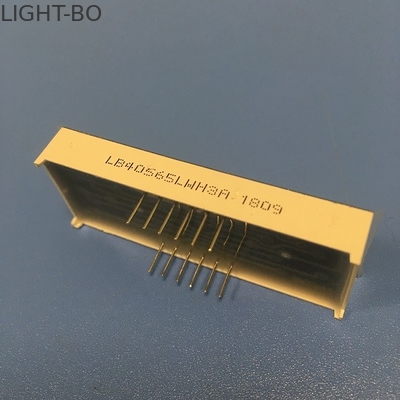

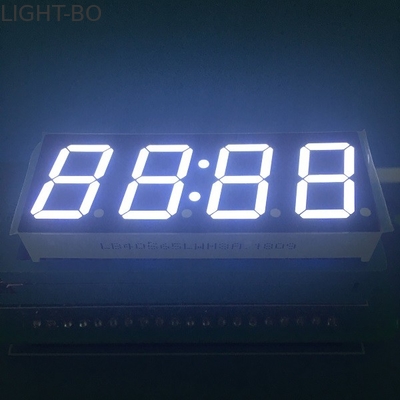

High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption

High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption
High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption
High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption

Large Image :  High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB40565LWH3A
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

High Brightness 0.56" LED Clock Display Ultra White Color Low Power Consumption

Description
Digit Height: 14.2mm (0.56 Inch) Packing Size: 50.3 X 19 X 8mm
Polarity: Common Cathode Color: Ultra Bright White
High Light:

digital clock display

,

common anode 7 segment display

High brightness Ultra white 0.56" LED Clock Display common cathode for digital timer controller







Product Descriptions:

Digital height: 14.2mm (0.56 inch)
Packing size: 50.3 x 19 x 8mm
Polarity: Common cathode
Yellow diffusedepoxy grey face
LED Color:ultra bright white
Luminous intensity:80-100mcd
Forward voltage:2.8-3.5V/led
Forward current:10-15mA/led
Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260
