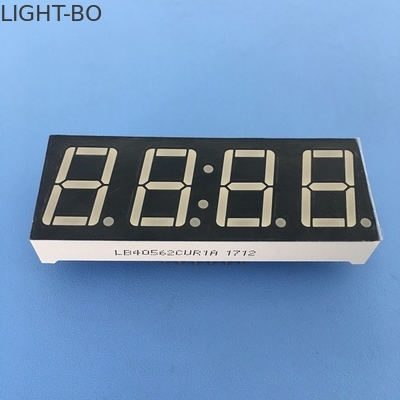

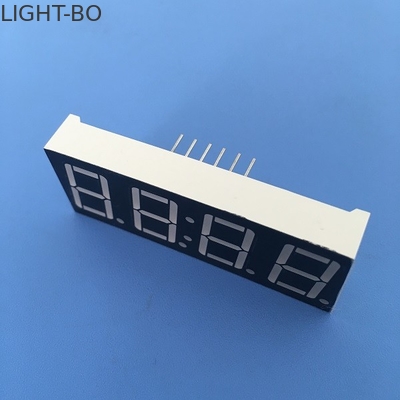

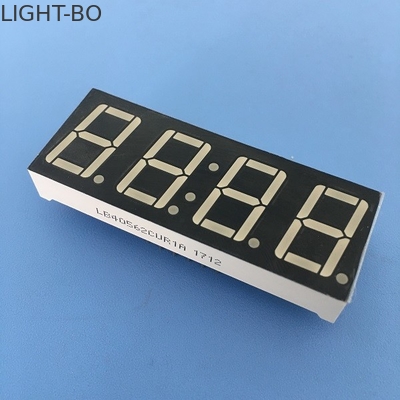

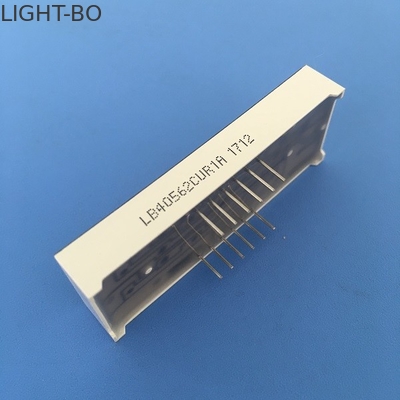

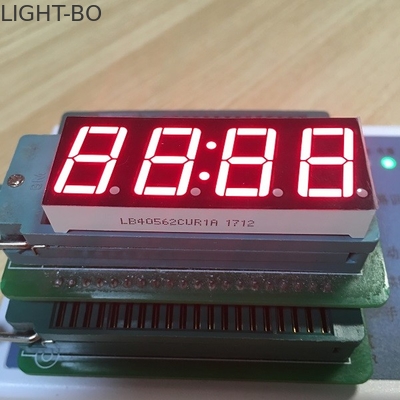

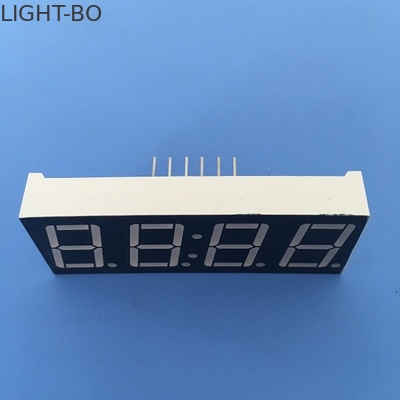

Super Red Digital Clock Led Display 0.56" 4 Digit 80-100mcd Lumious Intensity

Super Red Digital Clock Led Display 0.56" 4 Digit 80-100mcd Lumious Intensity

Brand Name:	LIGHTBO
Model Number:	LB40562CUR1A
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Digit Height:

14.2mm (0.56 Inch)

Packing Size:

50.3 X 19 X 8mm

Polarity:

Common Anode

Color:

Super Bright Red

Digital Height:

14.2mm

Forward Voltage:

1.8-2.3V/led

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

common anode 7 segment display

common cathode seven segment display

Product Description

Super red common anode 0.56" 4 Digit LED Clock display for digital clock indicator

Product Descriptions:

Digital height: 14.2mm (0.56 inch)
Packing size: 50.3 x 19 x 8mm
Polarity: Common anode
white segments blacksurface
LED Color:Super bright red
Wavelegnth:630-635nm
Lumious intensity:80-100mcd
Forward voltage:1.8-2.5V/led
Forward current:10-15mA/led
Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	50	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:R(Super Red)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	1.8		2.5	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	630		635	nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃
