Product Details:
|
| Package Dimensions: | 38.5x19X8mm | Character Height: | 0.52 Inch (13.2mm) |
|---|---|---|---|
| Polarity: | Common Anode | Emitting Colour: | Ultra Bright Blue |
| High Light: | 7 segment numeric display,seven segment led display |
||
0.52 Inch 7 Segment Led Display 3 Digit , 7 Segment Blue Led Display For Air Conditioner Control
Product Description:
Outer dimensions: 38.5x19X8mm
Digit height: 0.52 inch (13.2mm)
Polarity: common anode
Colour: Ultra bright blue
With white segments and gray surface
Emitting colors: red, blue, green, white, amber, yellow and orange
Product Feature:
1. High luminous intensity and reliability
2. High efficiency
3. Low power consumption
4. Extremely low current
5. Luminous evenly distributed on each segment
6. Big viewing angle
7. Stable performance
8. Long lifespan
9. Easy assembly
10. IC Compatible and Meet RoHS Compliamt
Application:
Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .
Why choose us?
1. Key raw materials are sourced from the US, Japan and Taiwan area
2. Full-automation ASM,such as automatic dice bonding and wire soldering machines
3. Specializing in the production of full range,full color LED digital tube,especially blue green and white
4. The OEM and ODM experiences has more than 10 years
5. It can be customized that according to customer requirement of varous size and color
6. Before sale and after sale services are good
7. Stable performance,prices is reasonable,delivery time is quickly
We Promise:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next order if it is our mistake.
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:W-Ultra Bright Blue
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | 3.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=10uA | 30 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 460 | 465 | nm | |
| LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃ | ||||||

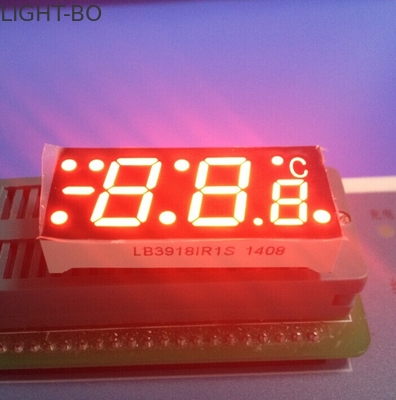

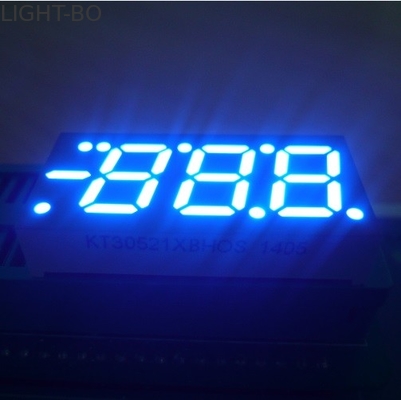

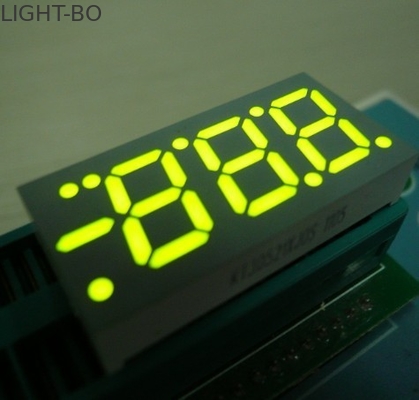

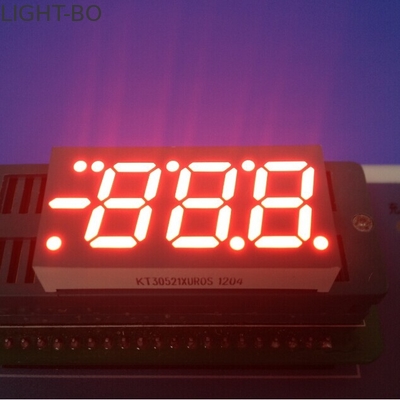

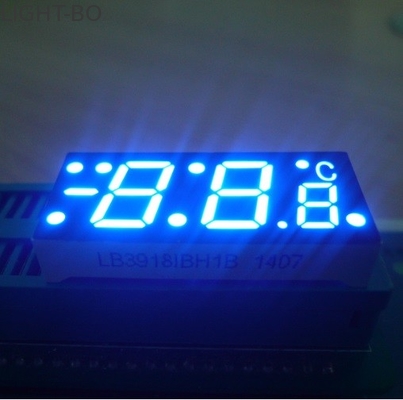

Product Pictures:
