High Efficiency Dual Digit 7 Segment Led Display For Digital Indicator

High Efficiency Dual Digit 7 Segment Led Display For Digital Indicator

Brand Name:	LIGHTBO
Model Number:	LB20501BBH3B
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Package Dimensions:

25.0 X 19.0 X 8.0mm

Character Height:

0.5-inch (12.7mm)

Polarity:

Common Anode/common Cathode

Emitting Colour:

Ultra Bright Blue

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

7 segment numeric display

seven segment led display

Product Description

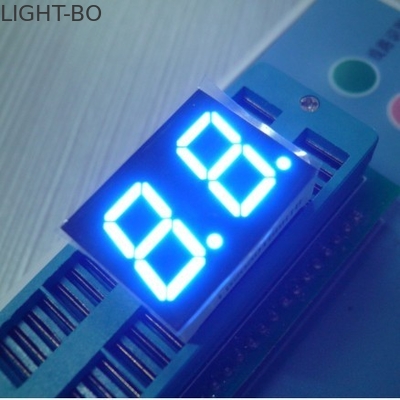

High Efficiency Dual Digit 7 Segment Display For Digital Indicator

Product Description:

Outer dimensions:25.0 x 19.0 x 8.0mm
Digit height: 0.5-inch (12.7mm)
Polarity: Common anode/common cathode
Colour: Ultra Bright Blue
Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange

Product Feature:

1. High luminous intensity and reliability
2. High efficiency
3. Low power consumption
4. Extremely low current
5. Luminous evenly distributed on each segment
6. Big viewing angle
7. Stable performance
8. Long lifespan
9. Easy assembly
10. IC Compatible and Meet RoHS Compliamt

Application:

Widely used in set-top boxes, home appliances and instrument panels,temperature indicators, humidity indicators,electric meters, digital indicators and so on .

We Promise:

1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:W-Ultra Bright Blue

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.5	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	30			V
Luminous Intensty(Per dice)	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA	460		465	nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

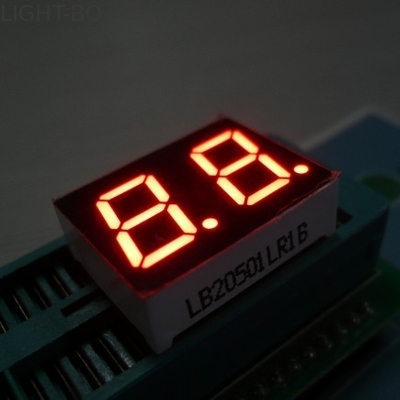

Product Pictures:
