4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display

4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display
4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display 4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display 4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display

Large Image :  4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB14001AUR9B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiation
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display

Description
Digit Height:: 101.6nm (4-inch) Outer Dimensions: 90 X 122 X 15mm
Polarity: Common Anode Color: Ultra Bright Red
Wavelength: 620-625nm Luminous Intensity: 80-100mcd
Highlight:

7 segment numeric display

,

low power 7 segment display



4 Inch Seven Segment Display , Common Anode Red Segment LED Display





Product Descriptions:



Dimensions: 90 x 122 x 15 nm

Digit Height: 01.6nm( 4 inch)
Polarity:Common Anode
Emitting colour: Ultra bright red

Wavelength: 620-625nm

Luminous Intensity: 80-100mcd

Forward voltage: 1.8-2.5V/LED

Emitting colors: available in red, blue, yellow green, pure green, pure white, amber and orange



Product Features:



High luminous intensity

Low power consumption

Extremely low current

Stable performance

Wide viewing angle

Continuous uniform segments

Long lifespan

Fast heat-dissipation

IC Compatible

Easy assembly

Meet RoHS Compliant



Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:UR(Ultra Bright Red)

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 1.8   2.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5     V
Luminous Intensty(Per dice) Iv If=20mA 80   100 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength  Dλ If=20mA 622   625 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃




Applications:



Widely used for instrument panels,home appliances,digital temperature/humidity indicators and so on .

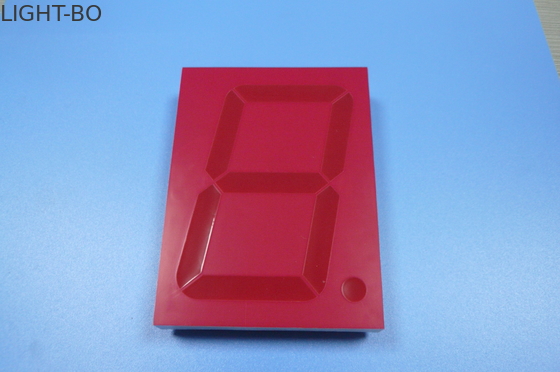

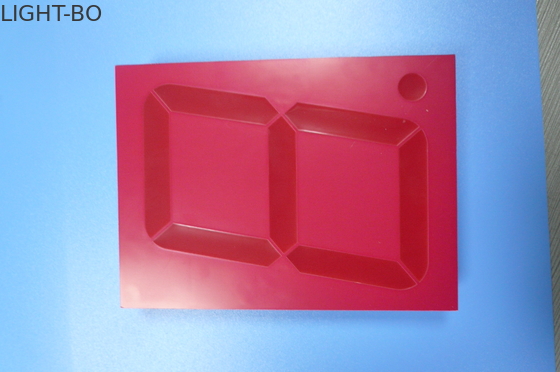

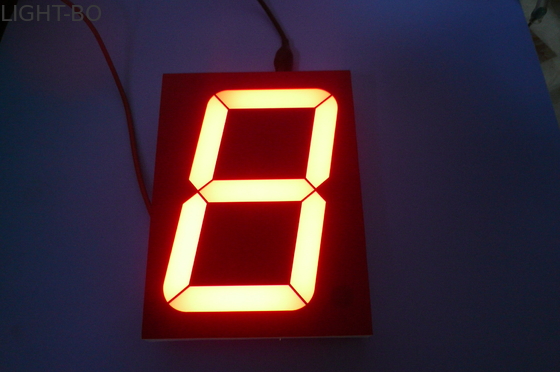

Product Pictures:



4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display 0

4 Inch Seven Segment Led Display , Common Anode Red Segment LED Display 1
