Product Details:
|
| Package Dimensions: | 76 X 19 X 8mm | Character Height: | 14.2mm (0.56 Inch) |
|---|---|---|---|
| Polarity: | Common Cathode | Emitting Colour: | Ultra Bright White |
| High Light: | seven segment led display,low power 7 segment display |
||

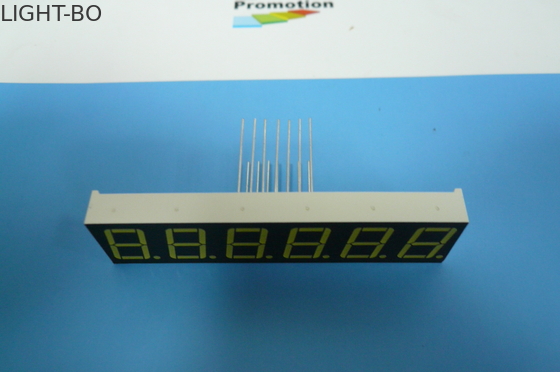

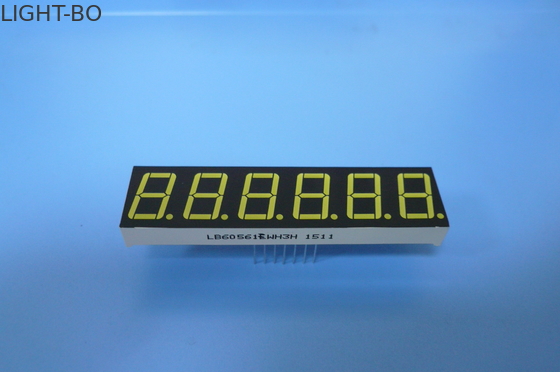

Ultra Bright White 7 Segment LED Display 100mcd - 120mcd Luminous Intensity
Product Description:
Outer dimensions: 76 x 19 x 8mm
Digit height: 14.2mm (0.56 inch)
Polarity: Common cathode
Colour: Ultra bright white
Ultra bright white
X/Y:0.29-0.33
Luminous intensity:100-120mcd
Forward voltage: 2.8-3.5V/led
Emitting colors:Available in red, yellow green, pure green, blue and white, amber, orange
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+85 | ℃ |
| Storage Temperature Range | Tstg | -40～+85 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:W-Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage(Per dice) | Vf | If=20mA | 2.8 | 3.5 | V | |
| Reverse Voltage(Per dice) | Vr | Ir=40uA | 5 | V | ||
| Luminous Intensty(Per dice) | Iv | If=20mA | 100 | 120 | mcd | |
| Chromaticity Coordinates | X | If=20mA | 0.29 | 0.33 | nm | |
| Chromaticity Coordinates | Y | If=20mA | 0.29 | 0.33 | nm | |
| Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse | Ifp | 100 | mA | |||
| Operating Temperature Range | Torp | -35℃～+85℃ | ||||
| Storage Temperature Range | Tstg | -35℃～+85℃ | ||||
| SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃ | ||||||
| Absolute Maximum Rating at Ta=25℃ | ||||||
Product Feature:
High luminous intensity and reliability
High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Big viewing angle
Stable performance
Long lifespan
Easy assembly
IC Compatible and Meet RoHS Compliamt
Application:
1. Key raw materials are sourced from the US, Japan and Taiwan area
2. Full-automation ASM,such as automatic dice bonding and wire soldering machines
3. Specializing in the production of full range,full color LED digital tube,especially blue green and white
4. The OEM and ODM experiences has more than 10 years
5. It can be customized that according to customer requirement of varous size and color
6. Before sale and after sale services are good
7. Stable performance,prices is reasonable,delivery time is quickly
We Promise:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next order if it is our mistake.

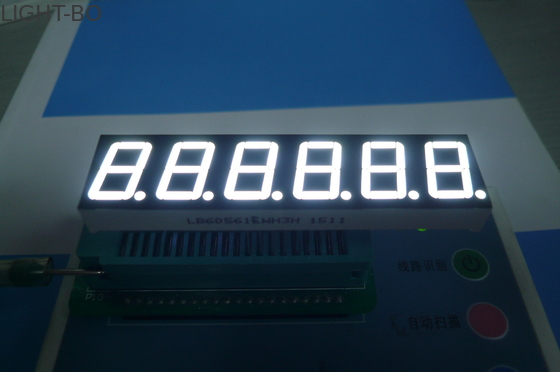

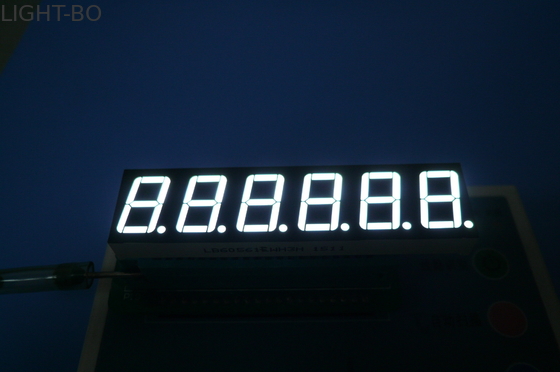

Product Pictures:
