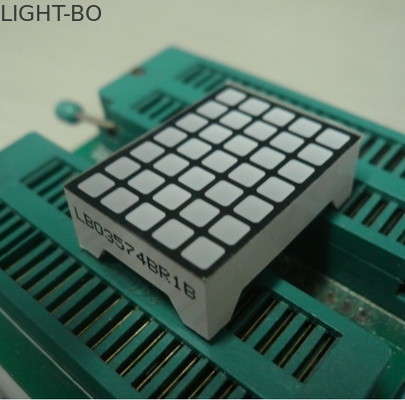

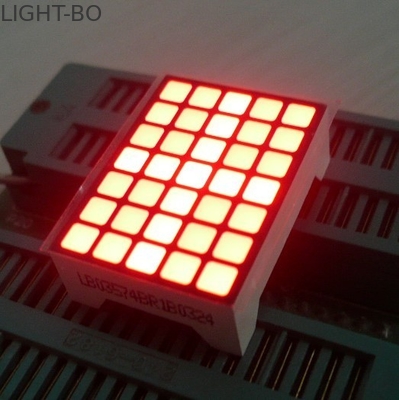

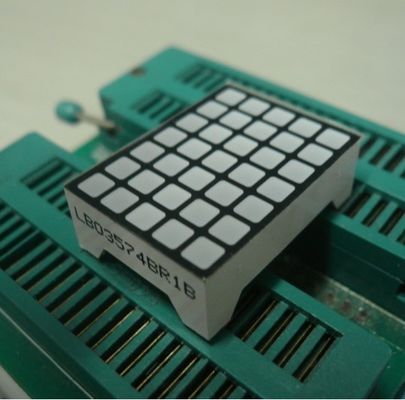

Ultra Bright Red 5x7 Dot Matrix LED Display 22x30x10mm Row Cathode Column Anode for Lift Floor Indicator

Ultra Bright Red 5x7 Dot Matrix LED Display 22x30x10mm Row Cathode Column Anode for Lift Floor Indicator

Brand Name:	LIGHTBO
Model Number:	LB03574BR1B
MOQ:	1000PCS
Price:	Negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Description:

Long Lifespan,Meet RoHS

Name:

Interior RGB Dot Matrix Led Display

Applications:

Can Display Numbers, Letters, Graphics Images

Advantage:

Cost-competitive,Stable Performance

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

10 mm Display

Ultra Bright Red Emission

Common Anode Design

Product Description

Ultra Red Dot Matrix LED Display 5x7 22 x 30 x 10 mm For Lift Position

High brightness Ultra Red Dot Matrix LED Display 5x7 22 x 30 x 10 mm For Lift Position

Quick Details

Square Dot matrix LED display
Dot size: 3.39mm * 3.9mm
Dimensions: 22 * 30 * 10 mm
Row Anode Column Cathode
Ultra Bright Red
Big viewing angle
Stable quality and performance
For elevator floor number indicators, lift position indicators

Technical Specifications

Dot Diameter	5mm
Dimensions	34.1 * 45.5 * 12mm
Construction	White diffused epoxy black face
Configuration	Row cathode column anode
Emitting Color (Standard)	Ultra bright red
Wavelength	620-625nm
Luminous Intensity	70-80mcd/LED
Forward Voltage	1.8-2.3V/LED
Recommended Forward Current	10-15mA

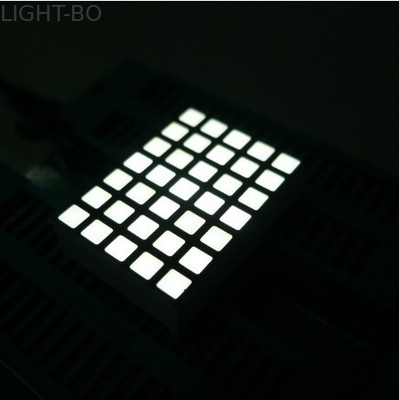

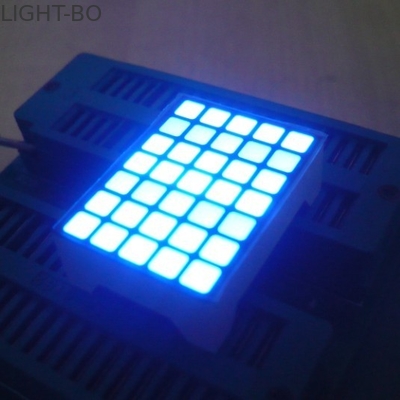

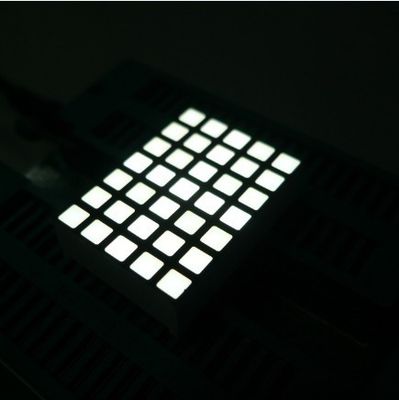

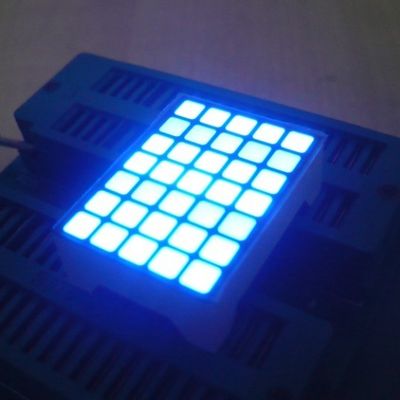

Available Colors	Red, blue, yellow green, pure green, pure white, orange, yellow, and amber

Product Description

Dot matrix LED displays are designed with advanced features for optimal performance:

High brightness produced by high luminous LED dice
Low current operation
Low power consumption
Stable quality and performance
Excellent dot uniformity
Wide viewing angle
Fast heat dissipation
Long lifespan
Easy mounting on PC boards and sockets
IC Compatible
Meet RoHS standards
Colors available: red, green, blue, white, amber, orange, bi-color, RGB
Character height available from 17.8mm (0.7") to 106.5mm (4.2")

Applications

Can display numbers, letters, graphics images
Message board
Moving signs
Lift / elevator floor number indicators, position indicators
Indoor and outdoor advertising screen
Interest rate screens
Time clock
Information display screen
Queue management systems
Traffic message
Video display board
Stadium video display

Competitive Advantages

Can display various contents
Stable performance
Low cost
Low power consumption
Long lifespan
Easy assembly
High brightness
Wide viewing angle
Various sizes and colors available
No MOQ requirement
Prompt delivery
Stable quality
Cost-competitive pricing
Excellent service
OEM & ODM services available

Company Information

Company Exhibition

Certifications

Shipping Methods

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are original manufacturers with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We can also accept sample orders and small orders with quantity less than our MOQ.

Q4: Before placing an order, can I get some samples for testing?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time: About 10-20 days; according to order quantity and raw materials. If you have an urgent order and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days.

Q6: What are your terms of payment?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Details of payment methods are negotiable.

Q7: Can you quote me FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please let us know your email address or contact us from our website directly for our catalogue and price list.

Q9: Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will provide the charge to you as requested.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize the sizes, LED color and functional icons according to your requirements.

Q12: If I send my design, can you make it exclusively for me and not show it to anyone else?

A: Yes, we will not show it or sell to others without your authorization.

Q13: What is the samples lead time for customized products?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers.

Q14: What are the shipping methods?

A: We usually ship goods by DHL, FEDEX, UPS, EMS, BY AIR, BY SEA, etc. You can also choose other methods that work best for you.

Q15: How do you ensure the quality of your products?

A: We are ISO 9001 QMS certified manufacturers with more than 20 years of experience. We conduct twice 100% testing for all our products before shipment.
