LED Clock Display
Created with Pixso.

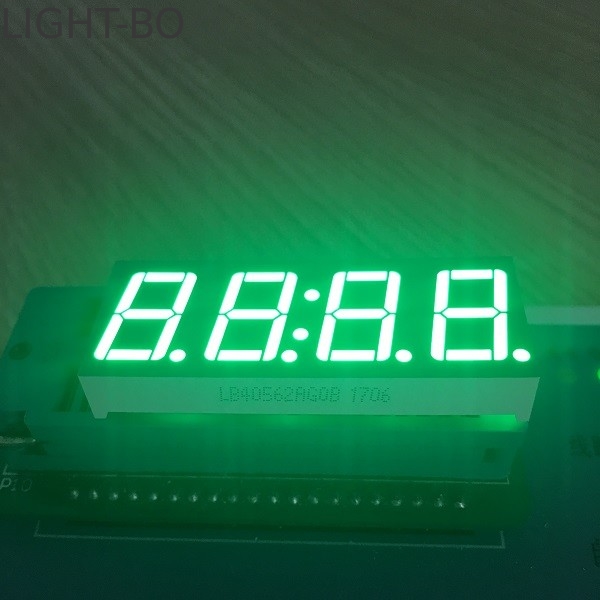

Pure Green LED Clock Display 4 digit 7 segment For Industrial Timer

Pure Green LED Clock Display 4 digit 7 segment For Industrial Timer

Brand Name: LIGHTBO
Model Number: LB40562AG0B
MOQ: 1000PCS
Price: NEGOTIABLE
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
DIMENSIONS:
50.4*19*8MM
Digit Height:
14.2mm (0.56")
Segment/face Color:
White Diffused Epoxy Grey Face
Polarity:
Common Anode
LED Color:
Pure Green
Wavelength:
515-525nm
Luminous Intensity:
120-140mcd
Forward Voltage:
2.8-3.3V/LED
Forward Current:
12-15mA/LED
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

digital clock display

,

common cathode seven segment display

Product Description



Pure Green LED Clock Display 4 digit 7 segment For Industrial Timer







Character height : 14.2mm (0.56 inches)


Outer dimensions: 50.3 x 19 x 8 mm


white diffused epoxy grey suface


Polarity :Common anode



Pure Green



Wavelength:515-525nm



Luminous intensity: 120-140 mcd/led



Forward voltage: 2.8-3.3v/led



Forward current: 12-15mA/led


Emitting colour: available in red,blue, green,amber, orange, yellow, white



Pure Green LED Clock Display 4 digit 7 segment For Industrial Timer 0

Super bright green common anode 4 digit 0.56 inches 7 segment led clock displays
Super bright green common anode 4 digit 0.56 inches 7 segment led clock displays


4 digit 0.56 inches Common Cathode Ultra bright Red 7 Segment LED Display

4 digit 0.56 inches Common Cathode Ultra bright Red 7 Segment LED Display4 digit 0.56 inches Common Cathode Ultra bright Red 7 Segment LED Display4 digit 0.56 inches Common Cathode Ultra bright Red 7 Segment LED Display4 digit 0.56 inches Common Cathode Ultra bright Red 7 Segment LED Display


High luminous intensity
Low power consumption
extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC Boards and sockets
IC Compatible
Long lifetime
Meet RoHS Compliant
Application ;
home appliances, set up boxes, isntrument panels,digital clock indicators ,digital led clock displays and so on.
