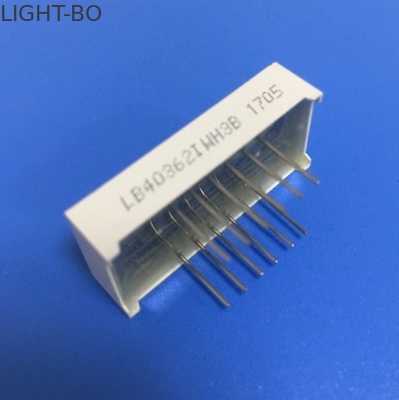

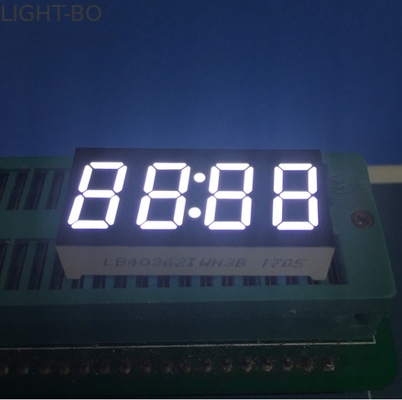

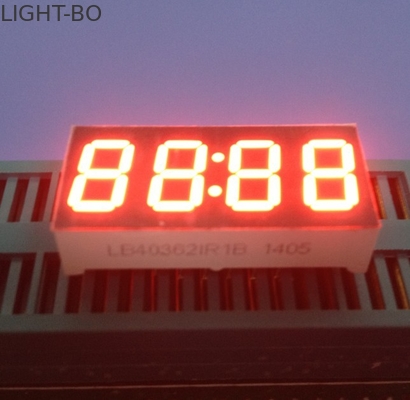

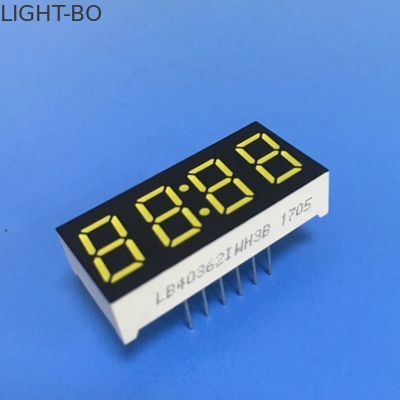

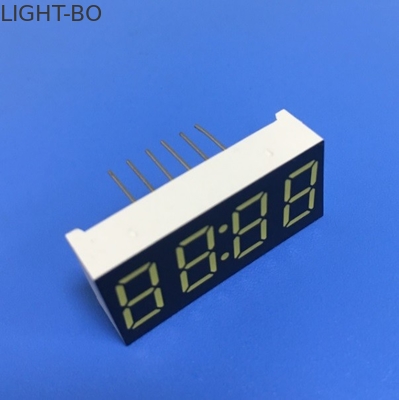

0.36 lnch Common Anode 4Dight 7 Segment led Display for microwave clock timer 30 X 14 X 7.2 mm

0.36 lnch Common Anode 4Dight 7 Segment led Display for microwave clock timer 30 X 14 X 7.2 mm

Brand Name:	LIGHTBO
Model Number:	LB40362IWH3B
MOQ:	1000PCS
Price:	negotiable
Payment Terms:	TT in advance& Western Union
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Character Height:

9.2mm (0.36 Inch)

Outer Dimensions:

30x14x7.2mm

Emitting Colour:

Ultra Bright White

Polarity:

Common Anode

Packaging Details:

EPE+CARTON

Supply Ability:

50000PCS/Day

Highlight:

seven segment led display

low power 7 segment display

Product Description

4 Digit Common Anode 7 Segment Display for microwave clock timer 30 X 14 X 7.2 mm

Product Description

Character height	9.2mm (0.36-inch)
Outer dimensions	30x14 x7.2 mm
Polarity	common anode
Emitting color	ultra bright white
Luminous intensity	80-100mcd
Forward voltage	2.8-3.3v/led
Forward current	12-15mA

0.36 lnch Common Anode 4Dight 7 Segment led Display for microwave clock timer 30 X 14 X 7.2 mm 0

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+85	℃
Storage Temperature Range	Tstg	-40～+85	℃
Solder Temperature(3 sec)	Th	260	℃

Code:R-Super Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage(Per dice)	Vf	If=20mA	2.8		3.3	V
Reverse Voltage(Per dice)	Vr	Ir=10uA	5			V
Luminous Intensty(Per dice)	Iv	If=20mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA				nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

Product Feature:
High luminous intensity and reliability
Low power requirement
Continuous uniform segments
Easy mounting on PC boards and sockets
Stable performance
long lifetime
Easy assembly
IC compatible
Meet RoHS Compliant

Product Application:

Widely used for Set-up boxes, clock indicators,multifunction digital cookers, home appliances, instrument panels and so on.

We Promise:
1. Your inquiry related to our products or prices will be replied in 24 hours.
2. Experienced staffs to answer all your enquires in fluent English.
3. We are doing the OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order , we will provide all the best quality , best service.
6. Advanced equipments and good materials: ASM machine, good chips and epoxy resin.
7. High brightness and low power consumption .
8. If our products have any problem , we will send free in the next order if it is our mistake.
