Brand Name: | LIGHTBO |
Model Number: | LB30803IR1B |
MOQ: | 1000PCS |
Price: | Negotiated |
Payment Terms: | TT in advance& Western Union |
Supply Ability: | 50000PCS/Day |
22.0mm Arrow Led Display , Common Anode 7 Segment Display 0.8 inch
Product Descriptions:
High-luminous intensity
Dight height | 0.8 inches(22.0mm) |
Quter dimensions | 43x26x8mm |
Polarity | Common anode |
Colour | Ultra Bright red |
Emitting colors | Red,Blue,Green,Yellow,Orange,Amber and White |
Product Features:
1. High-luminous intensity
2. Low-power consumption
3. Extremely low-current
4. Stable performance
5. Big viewing angle
6. Long lifespan
7. Easy mounting on PC boards and sockets
8. Certification: IC
9. RoHS Directive-compliant
Applications:
Widely used in set-top boxes,oven timer control,home appliances and instrument panel,clock displays,digital timers and so on
Why choose us?
1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If our products have any problem , we will send free in the next order if it is our mistake.
Absolute Maximum Ratings(Ta=25℃)
Parameter | Symbol | Ratings | Unit |
Forward Current(per dice) | Ipm | 20 | mA |
Reverse Voltage(per dice) | Vr | 5 | V |
Power Dissipation(per dice) | Pm | 50 | mW |
Operating Temperature Range | Topr | -40~+85 | ℃ |
Storage Temperature Range | Tstg | -40~+85 | ℃ |
Solder Temperature(3 sec) | Th | 260 | ℃ |
Code:W-Ultra Bright White
Parameter | Symbol | Condition | Min | Typ | Max | Unit |
Forward Voltage(Per dice) | Vf | If=20mA | 1.8 | 2.3 | V | |
Reverse Voltage(Per dice) | Vr | Ir=40uA | 5 | V | ||
Luminous Intensty(Per dice) | Iv | If=20mA | 70 | 80 | mcd | |
Wavelegnth | If=20mA | 620 | 625 | nm | ||
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse | Ifp | 100 | mA | |||
Operating Temperature Range | Torp | -35℃~+85℃ | ||||
Storage Temperature Range | Tstg | -35℃~+85℃ | ||||
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃ | ||||||
Absolute Maximum Rating at Ta=25℃ |

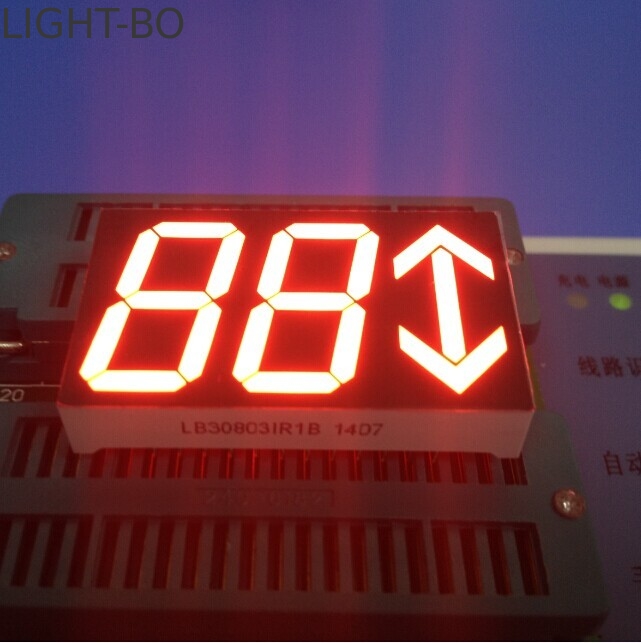

Product Pictures:
