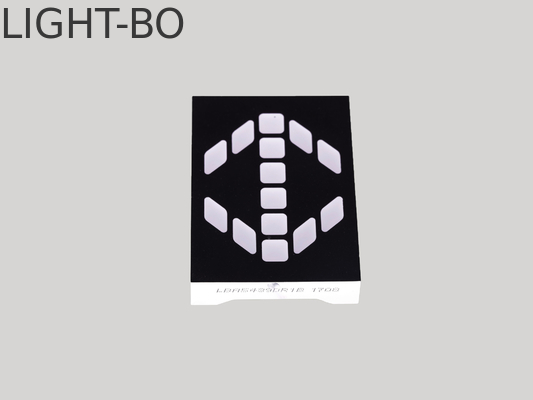

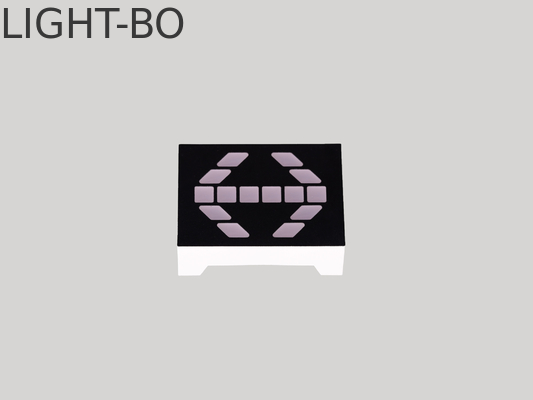

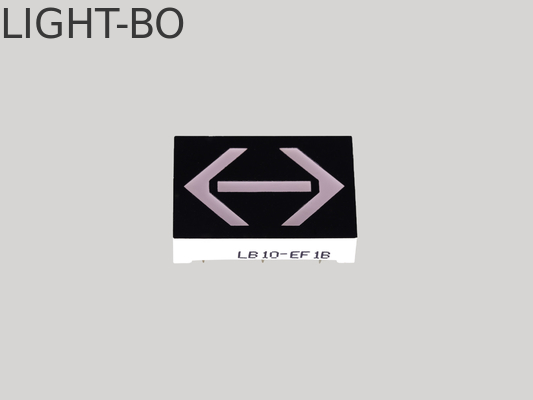

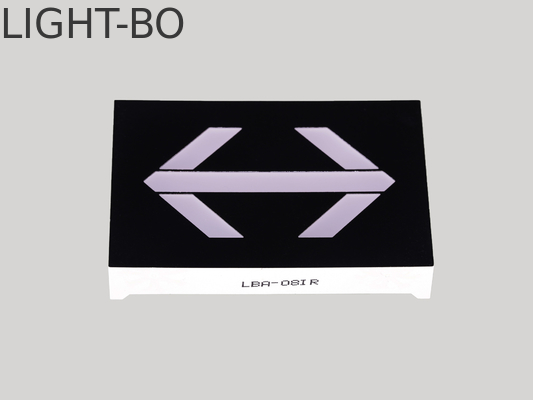

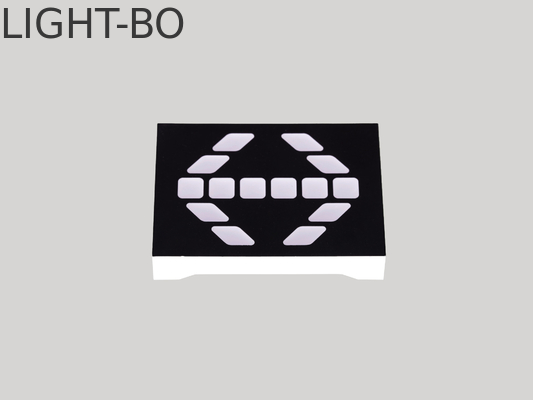

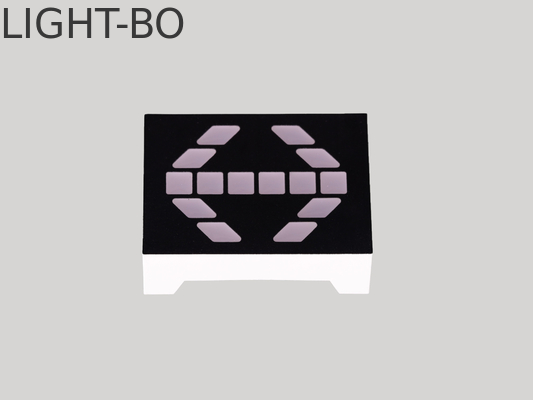

1.2 Inch Ultra Red Led Arrow Board For Elevator Direction Indicator

name

1.2 Inch Ultra Red Led Arrow Board For Elevator Direction Indicator

Brand Name: LIGHT-BO
Model Number: LBA2230LR1B
MOQ: 500 PCS
Price: NEGOTIABLE
Payment Terms: T/T
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN,CHINA
Certification:
SGS
Dimensions:
22*30*10mm
LED Color:
Ultra Bright Red
Wavelength:
620-625nm
Luminous Intensity:
70-80mcd
Forward Voltage:
1.8-2.3V/led
Packaging Details:
EPE+CARTON
Highlight:

seven segment led display

,

low power 7 segment display

Product Description

1.2 Inch Ultra Red Led Arrow Board For Elevator Direction Indicator




Key Specifications/Special Features:

Arrow LED display/LED Display/LED Numeric Display/Digit LED Display

High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Industrial standard size
Provides excellent reliability in bright ambient light
Made with white segments and black surface


Applications
Audio equipment or instrument panels
General use for digital indicators

  • Specifications:

  • Position indicator, floor indicator LED displays

  • Arrow height: 23.9mm

  • Dimensions: 22*30*10.5mm

  • Various colors are available

  • High luminous intensity

  • Low power consumption

  • Stable performance

  • Long lifetime

  • Meet RoHS compliant

  • Easy to assembly

  • IC compatible

  • Customized requirements are accepted

  • Applications:

  • Can be used as direction indicators, elevator floor indicators, lift position indicators
