Temperature Control LED Display
Created with Pixso.

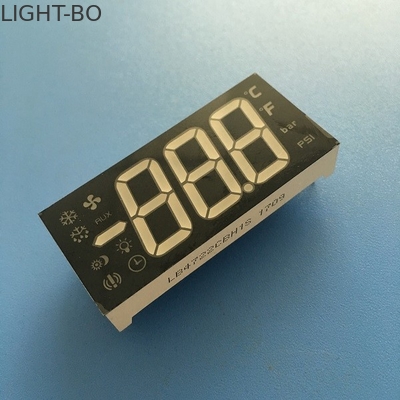

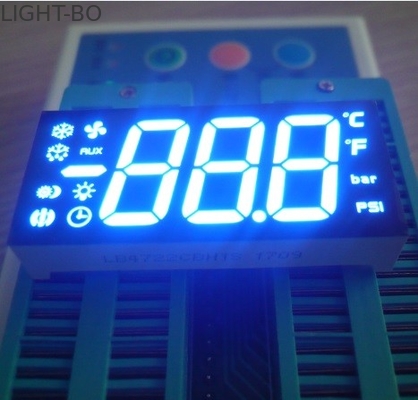

Customized Three Digit 7 Segment LED Display 47 X 22 X 9 mm Outer Dimensions

Customized Three Digit 7 Segment LED Display 47 X 22 X 9 mm Outer Dimensions

Brand Name: LIGHTBO
Model Number: LB4722CBH1S
MOQ: 1000PCS
Price: Negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Outer Dimenisons:
47*22*9(MM)
Digit Height:
17mm
Polarity:
Common Anode
LED Color:
Ultra Bright Blue
Application:
Refrigerator
Wave Length:
462-465nm
Packaging Details:
EPE + CARTON
Supply Ability:
50000PCS/Day
Highlight:

low power 7 segment display

,

seven segment led display

Product Description

Ultra bright blue customized Triple Digit 7 Segment LED Displaycommon anode for Refrigerator Control







  • Key Specifications/Special Features:

  •

  • 3- digit seven segment led numeric display

  •

  • Character height: 17mm (0.67inch)

  •

  • Outer dimensions: 47 x 22 x 9 mm

  •

  • Polarity: common anode

  •

  • Emitting colour: Ultra bright blue

  •

  • Wave length: 462-465nm

  •

  • Luminous intensity :80-100mcd

  •

  • Forward voltage: 2.8-3.3V/led

  •

  • Forward current: 12-15mA/led



  • With white segments and black surface with film

  • Emitting Colors:available in red, blue, green, white, amber, yellow and orange,Multi-colour

  • High luminous intensity and reliability

  • Low power consumption

  • Stable performance

  • Long lifetime

  • Easy assembly

  • IC compatible

  • Certificate: RoHS

  •

  • Applications:Home electronic appliances, air conditioner control,refrigerator indicators,refrigerator control ,cooling control,heating control,and so on.
