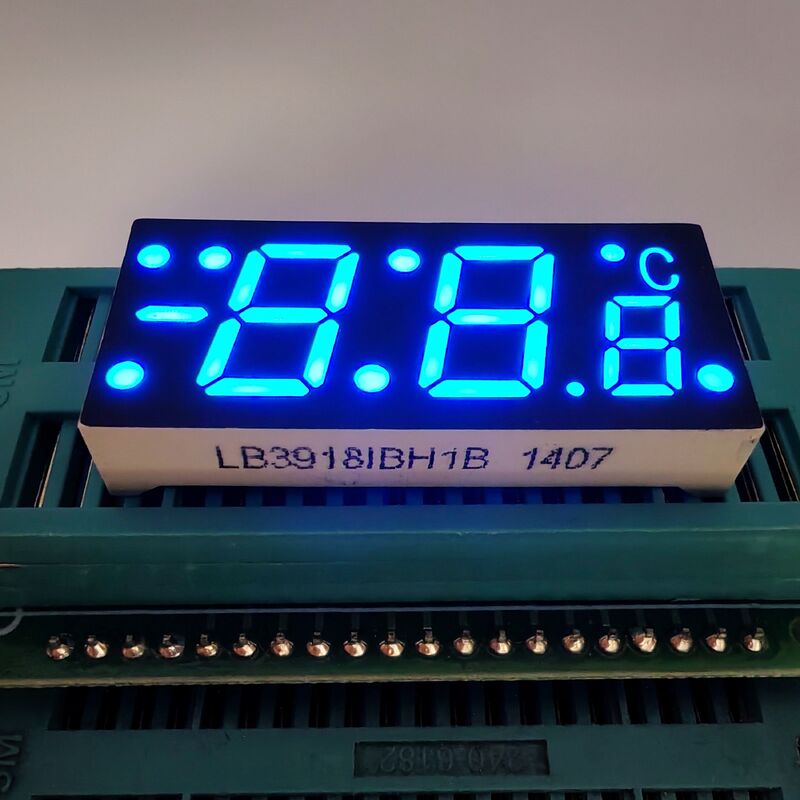

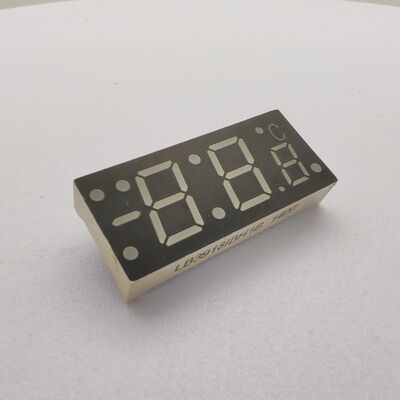

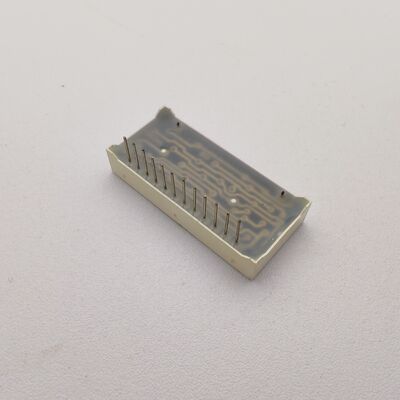

Ultra-Bright Blue 7-Segment Display for Temperature Measurement

Name: Ultra-Bright Blue 7-Segment Display for Temperature Measurement
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB3918LBH1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB3918LBH1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T,Western Union
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Colour:

Ultra-Bright Blue

Polarity:

Common Cathode

Application:

Temperature Indicator

Weight:

200 Grams

Led Life:

100,000 Hours

Luminous Intensity:

120-140mcd

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

blue 7-segment temperature display

ultra-bright LED temperature display

7-segment display for temperature measurement

Product Description

Ultra-Bright Blue 7-Segment Display for Temperature Measurement

Feature Category	Standard Specification	Customization & Options
Product Model	LB3918LBH1B	Custom part number marking supported
Product Name	Ultra-Bright Blue 7 Segment Display for Temperature Measurement	Application-specific designs and custom solutions available
Display Format	3 digits	2, 3, 4, 5, or 6 digits
LED Color	Ultra Bright Blue	White, Blue, Pure Green, Yellow Green, Orange, etc.
Electrical Polarity	Common Anode	Common Cathode
Lifetime (L70)	80,000 hours	-
Prototype Samples	Available upon request	Tooling/mold samples: 15-20 working days
Sample Lead Time	5-7 working days	Depends on final confirmed specifications
Production Lead Time	15-20 working days	Varies with order quantity and complexity
OEM/ODM Service	Fully supported	Developed from your drawing, sample, or concept
Logo/Branding	Supported	Customized per your provided artwork
MOQ (Minimum Order Quantity)	1,000 pcs	Initial pilot orders (100-500 pcs) negotiable

High Luminosity & Low Energy: Experience the pinnacle of luminescence with our LED display, engineered to deliver brilliant brightness while minimizing energy consumption. Thanks to its low forward voltage and ultra-efficient operating current, this display achieves high-brightness output with remarkable power conservation.
Uniform & Excellent Visibility: Our display ensures stunning clarity and readability with its evenly distributed luminous intensity across all segments, guaranteeing outstanding visibility even under the brightest lighting conditions.
Industrial Durability & Reliability: Designed with industrial-grade precision, our LED displays promise unwavering performance and robustness, built to endure and excel in the most demanding environments.
Long Life & Compliant: With an impressive operational lifespan, our products uphold RoHS/REACH environmental standards, demonstrating our unwavering commitment to sustainability and excellence.

Code: Yellow Green - J/JU. Immerse your displays in dynamic, vibrant colors, meticulously designed to align with your design needs and enhance visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Code: Amber/Yellow - Y. Achieve engaging and visually captivating displays with this warm hue, offering an inviting glow and irresistible allure.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code: Orange - F. Energize and animate your visual presentations with our vibrant orange, ensuring your display captures attention with style.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	60		80	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code: Super Bright Red - R. Immerse in the captivating allure of this vibrant red, perfect for displays that command attention and leave a memorable impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Code: Ultra Bright Red - UR. Amplify your display's impact with this intensely luminous red, delivering superior visibility and striking prominence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	80		100	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Color: Pure Green. Opt for this refreshing green to create designs that resonate with eco-friendly motifs, offering a rejuvenating and natural charm.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		180	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Code: Ultra Bright Blue - BH. Refresh your displays with this cool and vibrant blue, presenting a modern aesthetic that elevates any environment.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Code: Ultra Bright White - WH. Achieve unparalleled clarity with this pristine white, elevating your display to new heights of brilliance and elegance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC): Discover the exceptional performance metrics that underscore the superiority of our cutting-edge LED display technology.

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature(≤3 seconds)	Th	260	ºC

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) epitomizes excellence in OEM and ODM services since 2006. With ISO 9001:2015 certification, our 15+ years of legacy reflect our dedication to innovation and quality.
LIGHTBO empowers clients with top-notch, cost-effective custom solutions that not only cut expenses but also enhance competitive edges in the global arena.

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 2 At the cutting edge of innovation and design, our 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display elevate any application. Whether you're enhancing home appliances, providing precise temperature and humidity data, or crafting sophisticated solutions for refrigerator controllers, thermostats, and HVAC systems, our products deliver unmatched performance and quality. Experience the seamless blend of technology and design with Shenzhen Guangzhibao Technology Co., Ltd.

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 3

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 4

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 5

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 7

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 8

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 9

Ultra-Bright Blue 7-Segment Display for Temperature Measurement 10

FAQ(Frequently Asked Questions)

Q1 Are you trading company or manufacturer
A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays .
Q2 What is your main products
A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .
Q3 What is your MOQ
A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .
Q4 Before placing order, Can I get some samples for test
A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.
Q5 How long is your delivery time
A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock,
we can adjust our production plan to make it ready within 7-10 days .
Q6 What is your terms of payment
A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.
Q7 Can you quote me FOB prices
A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.
Q8 How can I get your catalogue and price list
A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .
Q9 Can I negotiate the prices
A: Yes, we may consider discounts for bulk orders.
Q10 How much will the shipping charges be
A: It depends on the size of your shipment and the method of shipping.
We will offer the charge to you as you requested.
Q11 Can you do custom design products
A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.
Q12 If I send my design , can you make it for myself only ,and will not show it to any one else
A: Yes , we will not show it or sell to others without your authorization.
Q13 IWhat will be the samples lead time for customized products
A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .
Q14 What is the shipping methods
A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.
Q15 How do you ensure the quality of your products
A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
