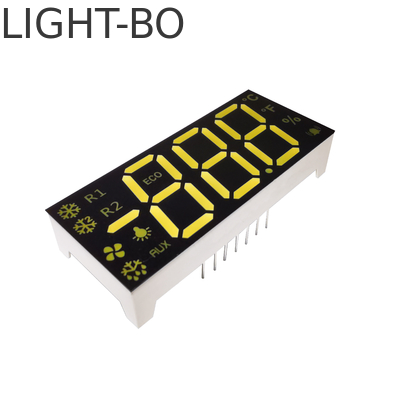

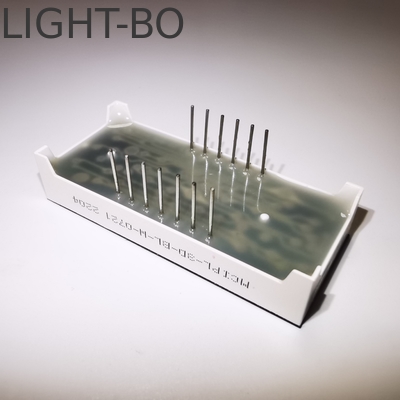

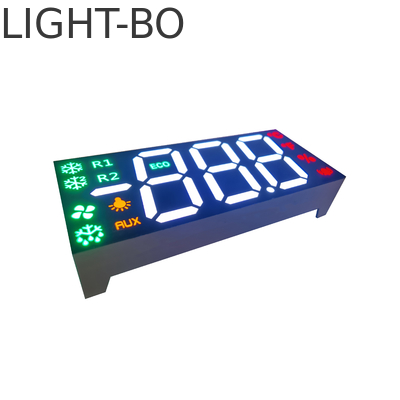

Ultra Red /Yellow Green/Amber Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller

Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller
Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller
Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller

Large Image :  Ultra Red /Yellow Green/Amber Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB4419-3ARJY1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Ultra Red /Yellow Green/Amber Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller

Description
Outer Dimension: 44*19*9mm Emitting Colour: Red & Yellow-Green&Amber
Digit Height: 0.67 Inch (17mm) Polarity: Common Anode
Lifespan: 80000hrs Usage: Indoor/Outdoor

Ultra Red /Yellow Green/Amber Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller

Features:

  • Outer dimensions:44*19*9mm

  • Digit height: 0.67 inch (17mm)

  • Emitting color : Red & Yellow-Green&Amber

  • Polarity: Common Anode

 Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm

Code:Amber

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA   20   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA 585   595 nm


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs,  Absolute Maximum Rating at Ta=25

Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller 0Ultra Red /Yellow Green/Amber  Triple Digit 17mm 7 Segment LED Display For Refrigerator Controller 1

FAQ:

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
