LED Clock Display
Created with Pixso.

Common Anode Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Brand Name: LIGHTBO
Model Number: LB40562AWH3S
MOQ: 1000PCS
Price: negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Digit Height:
14.2mm (0.56 Inch)
Packing Size:
50.3 X 19 X 8mm
Polarity:
Common Anode
Color:
Ultra Bright White
Digital Height:
14.2mm
Forward Voltage:
2.8-3.5V/led
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

digital clock display

,

common cathode seven segment display

Product Description
Ultra white 4 Digit 7 Segment Led clock Display 0.56 Inch common anode home appliances
Product Descriptions

Digital height: 14.2mm (0.56 inch)

Packing size: 50.3 x 19 x 8mm

Polarity: Common anode

Yellow diffusedepoxy grey face

LED Color:ultra bright white

Luminous intensity:80-100mcd

Forward voltage:2.8-3.5V/led

Forward current:10-15mA/led

Emitting Colors: red, blue, green, amber, orange, white and yellow

Product Features
  • RoHS Directive-compliant
  • High luminous intensity output
  • High-efficiency
  • Low power consumption
  • Extremely low current
  • Luminous evenly distributed on each segment
  • Stable performance
  • Easy assembly
  • IC Compatible
  • Long lifespan
  • OEM and ODM orders are accepted
Applications
  • Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Why choose us?
  1. Your inquiry related to our products will be replied in 24 hours.
  2. Experienced staffs to answer your inquiries in fluent English.
  3. Providing OEM and ODM service for more than 10 years.
  4. Protection of your sales area, ideas of design and all your private information.
  5. No matter big order or small order, we will serve you with best quality and best service.
  6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
  7. If you become our VIP,you will enjoy more preferential policy.
  8. If our products have any problem , we will send free in the next order if it is our mistake.
Absolute Maximum Ratings(Ta=25℃)
Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260
Code:R(Super Red)
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8
3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 5

V
Luminous Intensty(Per dice) Iv If=20mA 120
140 mcd
Spectrum With Of Half Value △λ If=20mA
20
nm
Wavelength If=20mA 525
535 nm
LED working lifetime 100,000hrs Absolute Maximum Rating at Ta=25℃

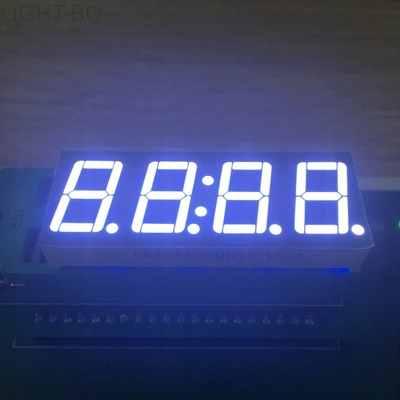

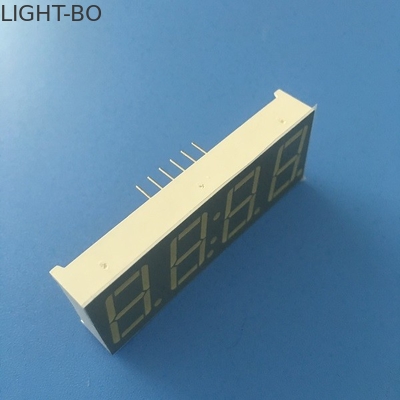

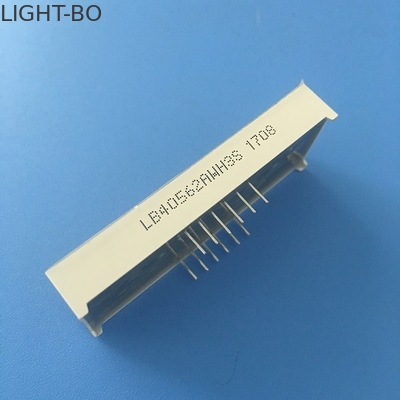

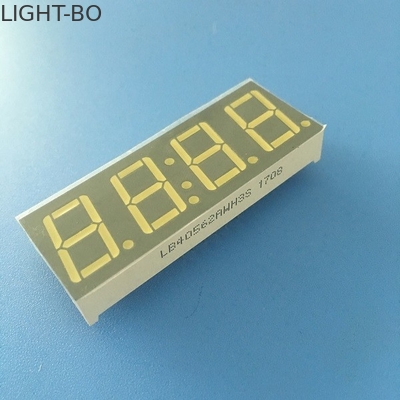

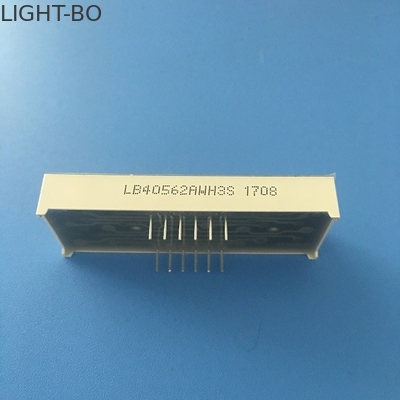

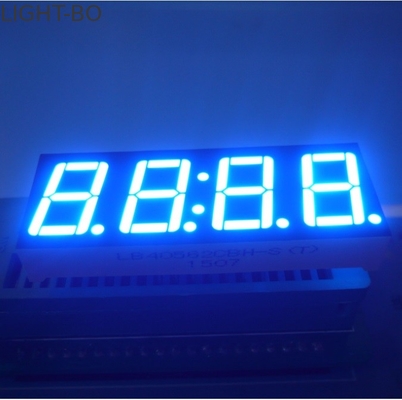

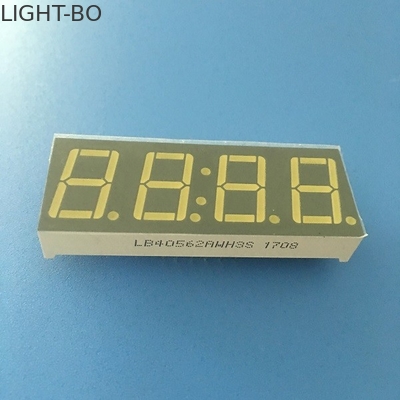

Product Pictures

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Office and Factory Overview

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Company Exhibitions

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Certifications

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Shippment Services

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

Common Anode  Digital Clock LED Display 0.56 Inch High Luminous Intensity Output

FAQ

Q1 Are you trading company or manufacturer?

A: We are original manufacturer with more than 20 years experience in optoelectronic LED displays (7 Segment LED display,4 Digit led display,SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,and so on) .

Q2 What is your main products ?

A: Our main products include 7 Segment LED display, SMD LED Display,Dot matrix LED Display, Arrow LED display, Custom Design LED Display ,LED light bar,Through hole led, SMD LEDs,LED Backlights, and so on .

Q3 What is your MOQ?

A: Our MOQ is 1000 pcs , We can also accept sample orders and small orders with quantity less than our MOQ .

Q4 Before placing order, Can I get some samples for test?

A: Yes. We can provide 5-10 free samples for your testing, but the freight cost will be borne by the customer.

Q5 How long is your delivery time?

A: Delivery time:About 10-20 days; According to order quantity and raw materials. If you have urgent order,and we have raw materials in stock, we can adjust our production plan to make it ready within 7-10 days .

Q6 What is your terms of payment?

A: We accept bank transfer,T/T,Western Union and Paypal with small amount. Detailes of payment methods can be negotiatble.

Q7 Can you quote me FOB prices?

A: Yes. We can quote you prices based on incoterms EXW, FOB, CIF,DDP.

Q8 How can I get your catalogue and price list?

A: Yes . Please let us know your email address or contact us from website directly for our catalogue and price list .

Q9 Can I negotiate the prices?

A: Yes, we may consider discounts for bulk orders.

Q10 How much will the shipping charges be?

A: It depends on the size of your shipment and the method of shipping. We will offer the charge to you as you requested.

Q11 Can you do custom design products ?

A: Yes , OEM&ODM service are available .We can customize the sizes,led color and functional icons according to your requirements.

Q12 If I send my design , can you make it for myself only ,and will not show it to any one else ?

A: Yes , we will not show it or sell to others without your authorization.

Q13 IWhat will be the samples lead time for customzied products ?

A: Samples lead time will be about 20-25 working days after receiving mold cost and mold drawing approval from customers .

Q14 What is the shipping methods?

A:We usually ship the goods by DHL, FEDEX,UPS,EMS,BY AIR,BY SEA etc, also you can choose the other way that best for you.

Q15 How do you ensure the quality of your products?

A: we are ISO 9001 QMS ceritified manufacturers with more than 20 years experience ,We conduct twice 100% percent test for all of our products before shipment .
