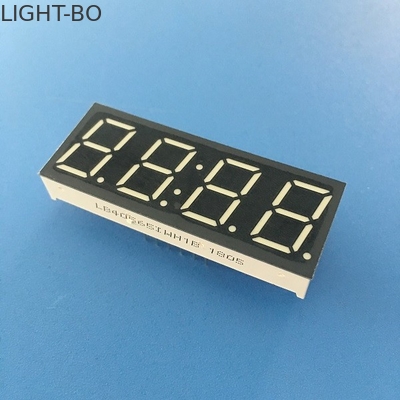

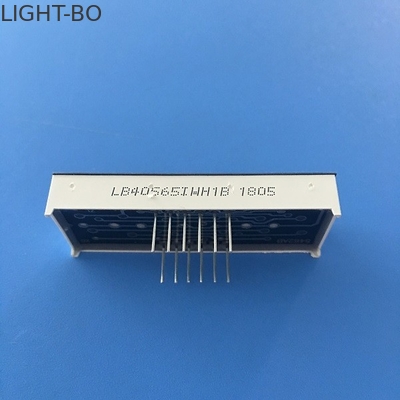

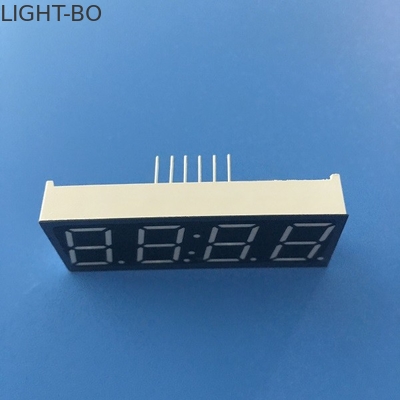

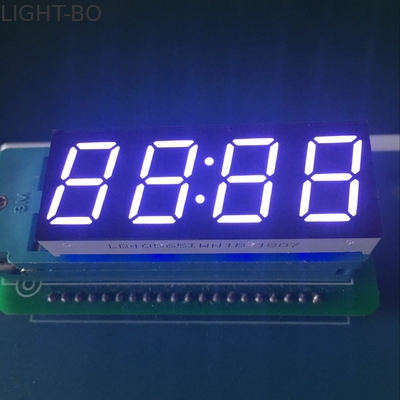

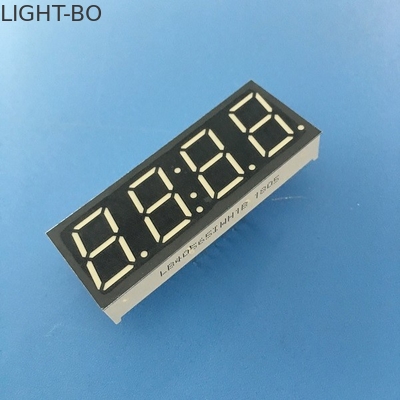

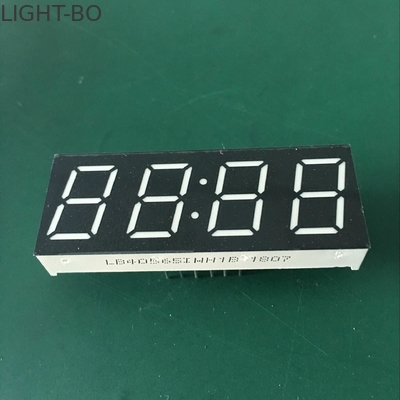

Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output

Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output
Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output
Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output

Large Image :  Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB40565IWH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Common Anode Digital Clock Display 0.56 Inch High Luminous Intensity Output

Description
Digit Height: 14.2mm (0.56 Inch) Packing Size: 50.3 X 19 X 8mm
Polarity: Common Anode Color: Ultra Bright White
High Light:

digital clock display

,

common anode 7 segment display

Good consistency Ultra white 0.56" LED Clock Display common Anode for oven timer









Product Descriptions:

Digital height: 14.2mm (0.56 inch)
Packing size: 50.3 x 19 x 8mm
Polarity: Common anode
 White segment black face
LED Color:ultra bright white
Luminous intensity:80-100mcd
Forward voltage:2.8-3.5V/led
Forward current:10-15mA/led
Emittinf Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260
