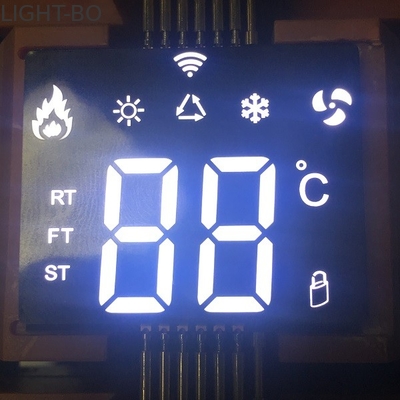

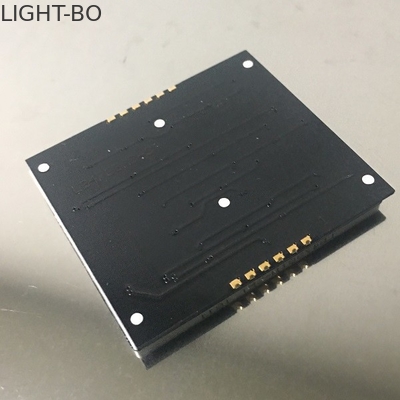

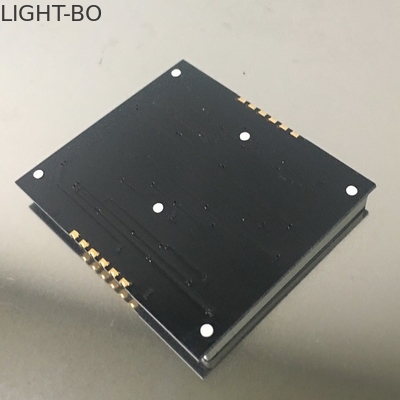

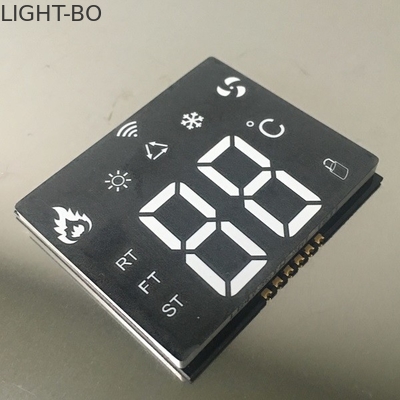

Ultra Thin Custom LED Display SMD White 7 Segment For Air Conditioner Controller

Large Image : Ultra Thin Custom LED Display SMD White 7 Segment For Air Conditioner Controller Get Best Price

Product Details:

Place of Origin:	SHENZHEN,CHINA
Brand Name:	LIGHT-BO
Certification:	SGS
Model Number:	LB4738IW-SMT

Payment & Shipping Terms:

Minimum Order Quantity:	500 PCS

Contact Now

Detailed Product Description

Outer Dimensions:

47*38mm

Thickness:

5mm Only

Polarity:

Common Anode

Emitting Colour:

Ultra Bright White

High Light:

7 segment numeric display

seven segment led display

Ultra thin Custom design ultra white SMD led display common anode for temperature controller

Outer dimensions: 47*38mm
Ultra thin. with thickness 4mm only
Common anode
Emitting colour: ultra bright white
X/Y:. 0.29-0.31
Luminous intensity:180-200mcd
Forward voltage: 2.8-3.3V/led
Forward current:10-15mA/led

Colors: red, blue, yellow green, pure green, amber, orange and pure white
High luminous intensity and reliability
Low power consumption
Extremely low current
Stable performance
Long lifespan
Easy-to-assemble
IC compatible
Meet RoHS Compliant
Applications:
Widely used for instrument panels,home appliances, digital indicators, temperature indicators,refrigerators,air conditioners,water heaters, and so on .
