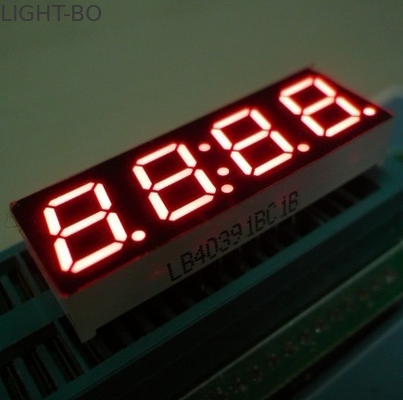

0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance

Certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
Customer Reviews
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Dennis

Really good service,delivery arrived today and the displays are perfect! thank you.

—— Tim

We have been using the oven’s display, and the quality is very reliable. Hope we can cooperate for a long time.

—— OKIDA

I'm Online Chat Now

0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance

0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance
0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance
0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance 0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance

Large Image :  0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB40802EBH1B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiable
Packaging Details: EPE+CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

0.8 Inch 4 Digit Seven Segment LED Clock Display High Luminous Intensity Stable Performance

Description
Package Dimensions: 71.6 X 25.8 X 7.4 Mm Character Height: 20.4mm (0.8 Inch)
Colour: Ultra Bright Blue Service: ODM/OEM
Advantage: Long Lifetime Characteristic: High Quality With Reasonable Price
High Light:

common anode 7 segment display

,

common cathode seven segment display


0.8 Inch 4 Digit Seven Segment Display Ultra Bright Blue Stable Performance



Product descriptions:
Package dimensions: 71.6 x 25.8 x 7.4 mm
Character height: 20.4mm (0.8 inch)
Colour: Ultra bright blue
Emitting colour: red, yellow, green, blue, orange and white

Product features:
High luminous intensity
Low power consumption
Extremely low current
Stable performance
Continuous uniform segments
Easy mounting on PC boards
Long lifetime
Meet RoHS compliant

Excellent design of outer appearance

Strict quality testing before it leave the factory

We have our own production workshop and production facility

We can customize it according to the customer's requirements

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright Blue
Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA 30     V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength  Dλ If=20mA 460   465 nm
LED working lifetime 100,000hrs  Absolute Maximum Rating at Ta=25℃


Applications:
Home appliances, instrument panels, digital clock indicators and so on.
