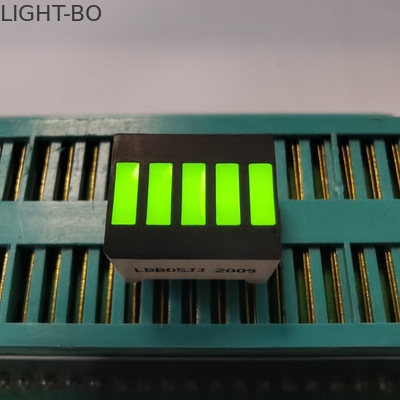

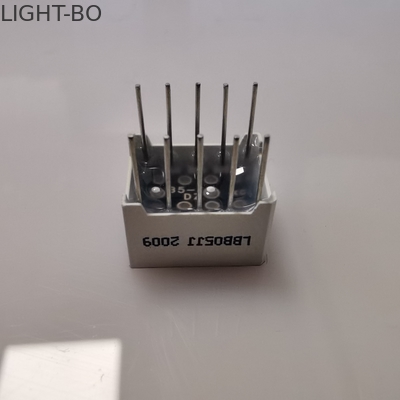

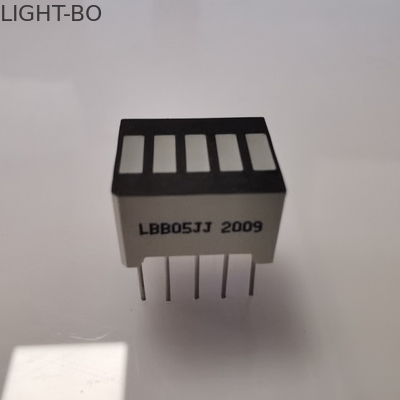

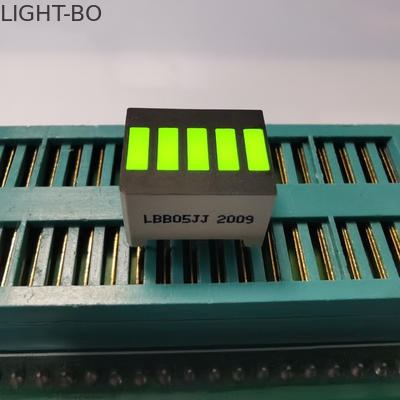

5 Segment 574nm Common Cathode LED Light Bar For Battery Display

5 Segment 574nm Common Cathode LED Light Bar For Battery Display
5 Segment 574nm Common Cathode LED Light Bar For Battery Display
5 Segment 574nm Common Cathode LED Light Bar For Battery Display 5 Segment 574nm Common Cathode LED Light Bar For Battery Display 5 Segment 574nm Common Cathode LED Light Bar For Battery Display 5 Segment 574nm Common Cathode LED Light Bar For Battery Display 5 Segment 574nm Common Cathode LED Light Bar For Battery Display

Large Image :  5 Segment 574nm Common Cathode LED Light Bar For Battery Display

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LBB05JJ
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

5 Segment 574nm Common Cathode LED Light Bar For Battery Display

Description
Outer Dimension: 12.5*10.1*7.9mm Emitting Colour: Yellow Green
Segment: 5 Polarity: Common Cathode
Lifespan: 100000hrs Application: Battery
High Light:

Common Cathode LED Light Bar

,

574nm LED Light Bar

,

Battery Display 5 Segment LED Light



5 Light Bar LED Display Yellow Green For Battery Display



Features:

  • Outer dimensions:12.5*10.1*7.9mm

  • Segment: 5

  • Emitting color : Yellow Green

  • Polarity: Common Cathode



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe





Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs

Absolute Maximum Rating at Ta=25



Shipping:

5 Segment 574nm Common Cathode LED Light Bar For Battery Display 0



Production:

5 Segment 574nm Common Cathode LED Light Bar For Battery Display 1





FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
