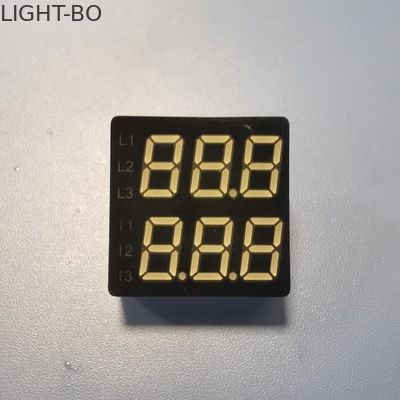

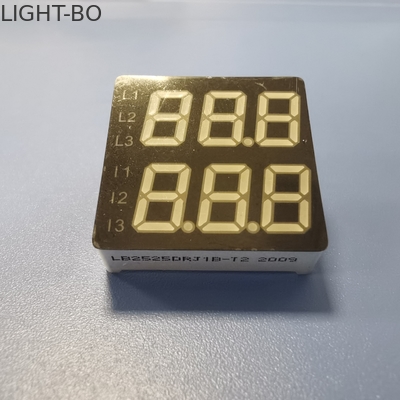

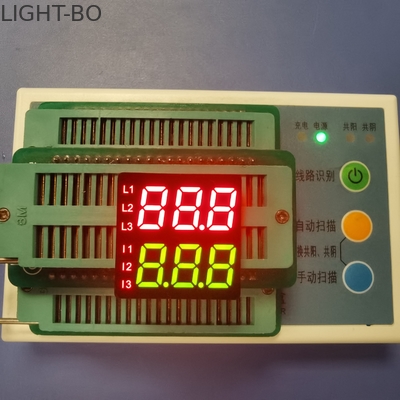

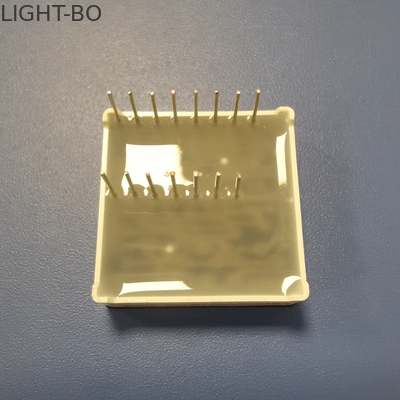

Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit

Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit
Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit
Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit

Large Image :  Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB2525DRJ1B-T2
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day

Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit

Description
Outer Dimension: 25*25 Emitting Colour: Red & Yellow-Green
Digit Height: 8.6mm Polarity: Common Cathode
Lifespan: 80000hrs Usage: Indoor/Outdoor
High Light:

Double Row 7 Segment LED Display

,

8.6mm Height 7 Segment LED Display

,

Two Color 3 Digit LED Display



Double Row 3 Digit 7segment Custom LED Display Two-Color



Features:

  • Outer dimensions:25*25mm

  • Digit height: 8.6 mm

  • Emitting color : Red&Yellow-Green

  • Polarity: Common Cathode



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe



Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Code:Ultra Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs

Absolute Maximum Rating at Ta=25

show:





Shipping:

Double Row 8.6mm Height 7 Segment LED Display Two Color 3 Digit 0







FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
