7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color

7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color

Brand Name: LIGHTBO
Model Number: LB2238LBG1C
MOQ: 1000PCS
Price: negotiable
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&SGS&ISO
Digit Height:
7mm (0.28")
Packing Size:
22*38*7mm
Polarity:
Common Cathode
Color:
White/pure Green
Packaging Details:
EPE+CARTON
Supply Ability:
50000PCS/Day
Highlight:

7 segment numeric display

,

low power 7 segment display

Product Description


7mm 8 Digit 7 Segment Display OEM ultra white pure green Color

Product Descriptions:

Digital height: 7mm (0.28")
Packing size: 22*38*7mm
Polarity:Common cathode
Colors: red, blue, green, amber, orange, white and yellow

Product Features:

RoHS Directive-compliant
High luminous intensity output
High-efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Easy assembly
IC Compatible
Long lifespan
OEM and ODM orders are accepted

Applications:

Widely used in set-top boxes,home appliances and instrument panels,clock displays,digital timers,and numeric displays.

Why choose us?

1. Your inquiry related to our products will be replied in 24 hours.
2. Experienced staffs to answer your inquiries in fluent English.
3. Providing OEM and ODM service for more than 10 years.
4. Protection of your sales area, ideas of design and all your private information.
5. No matter big order or small order, we will serve you with best quality and best service.
6. Advanced equipment and good materials: ASM machine, excellent chips and epoxy resin.
7. If you become our VIP,you will enjoy more preferential policy.
8. If our products have any problem , we will send free in the next  order if it is our mistake.

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85
Storage Temperature Range Tstg -40~+85
Solder Temperature(3 sec) Th 260



Code:W-Ultra Bright White



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=40uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 100   120 mcd
Chromaticity Coordinates X If=20mA 0.29   0.33 nm
Chromaticity Coordinates Y If=20mA 0.29   0.33 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃



Code:G-Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage(Per dice) Vf If=20mA 2.8   3.5 V
Reverse Voltage(Per dice) Vr Ir=10uA   5   V
Luminous Intensty(Per dice) Iv If=20mA 120   140 mcd
Spectrum With Of Half Value If=20mA   22   nm
Wavelength D If=20mA 520   525 nm
Peak Forward Current(Per dice)1/10 Duty Cycle,0.1ms Pulse Ifp 100 mA
Operating Temperature Range Torp -35℃~+85℃
Storage Temperature Range Tstg -35℃~+85℃
SolderTemperature 1.5mm below seating plane for 3 Seconds at 260℃
Absolute Maximum Rating at Ta=25℃

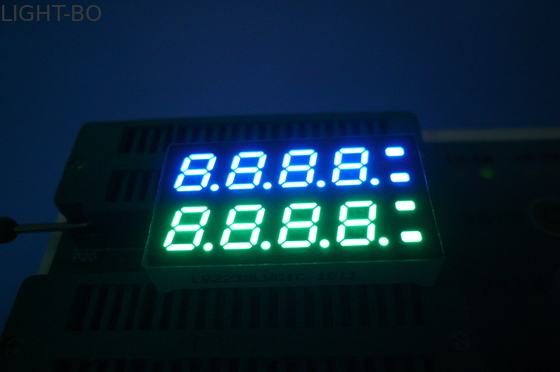

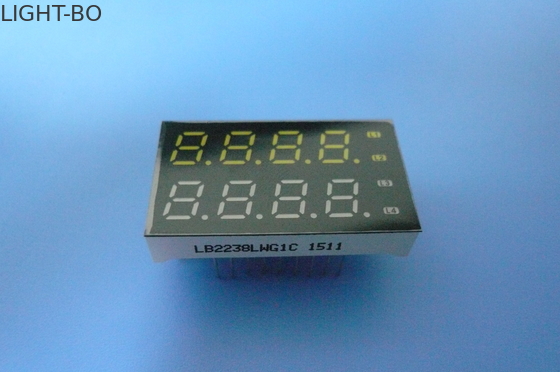

Product Pictures:

7mm 8 Digit 7 Segment Led Display OEM ultra white pure green Color 0
