120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel

I'm Online Chat Now
Certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
China Shenzhen Guangzhibao Technology Co., Ltd. certification
Thanks for your kindly hospitality. Your company is very professional , we will have nice cooperation in the near future.

—— Dennis

Really good service,delivery arrived today and the displays are perfect! thank you.

—— Tim

We have been using the oven’s display, and the quality is very reliable. Hope we can cooperate for a long time.

—— OKIDA

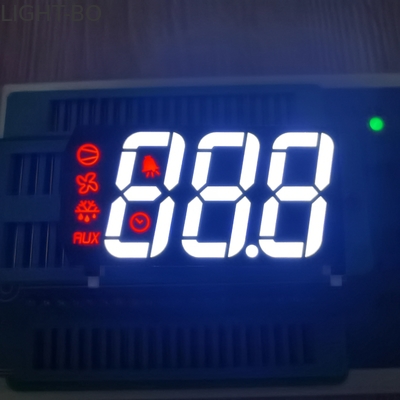

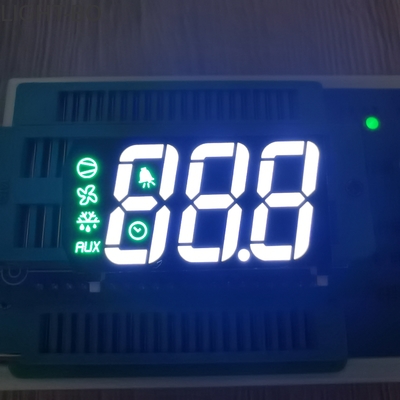

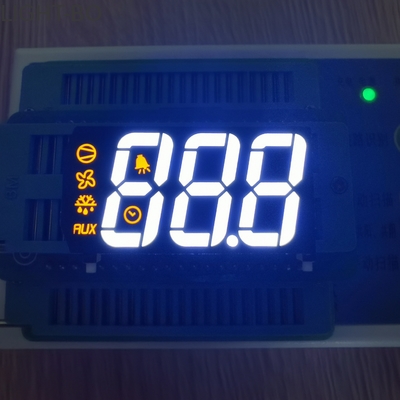

120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel

120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel
120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel 120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel 120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel

Large Image :  120mcd 0.67 Inch Triple Digit LED Display For Refrigerator Control Panel Get Best Price

Product Details:
Place of Origin: Shenzhen,China
Brand Name: LIGHTBO
Certification: RoHS&SGS&ISO
Model Number: LB30671BWY3B
Payment & Shipping Terms:
Minimum Order Quantity: 1000PCS
Price: Negotiation
Packaging Details: EPE +CARTON
Delivery Time: 10-15Days
Payment Terms: TT in advance& Western Union
Supply Ability: 50000PCS/Day
Detailed Product Description
Emitting Colour: Super Bright White / Yellow Package Dimension: 37.9 X 20.45 X 5.75mm
Digit Height: 0.67 Inch (17mm) Polarity: Common Cathode
Lifespan: 80000hrs Usage: Indoor/Outdoor
High Light:

0.67 Inch Triple Digit LED Display

,

120mcd Triple Digit LED Display

,

Refrigerator Control Panel Custom Led Panels



Customized White / Yellow Triple Digit LED Display For Refrigerator Control Panel



Features:

  • Outer dimensions:37.9 x 20.45 x 5.75mm

  • Digit height: 0.67 inch (17mm)

  • Emitting color : Super Bright white/Yellow

  • Polarity: Common Cathode



Advantages:

  • High-luminous intensity output

  • High-efficiency

  • Low-power consumption

  • Extremely low-current

  • Luminous evenly distributed on each segment

  • Emitting colors: various colors avaioaboe

Code:Ultra Bright white



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.6 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm




Code:Ultra Bright Red



Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm

Absolute Maximum Ratings(Ta=25℃)







Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 80,000hrs

Absolute Maximum Rating at Ta=25℃









FAQ:


1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
