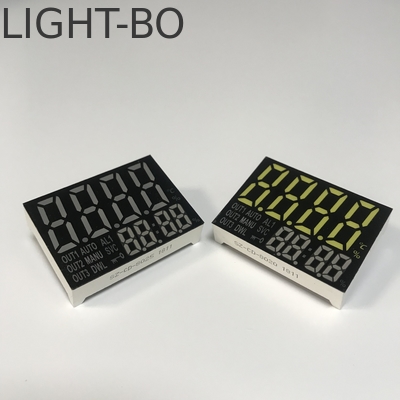

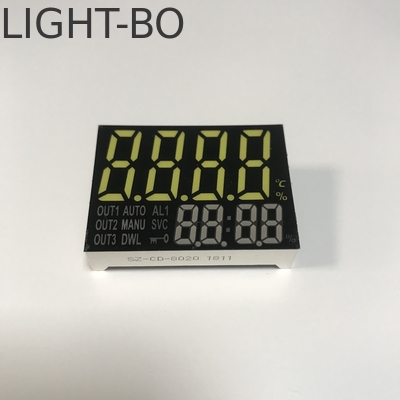

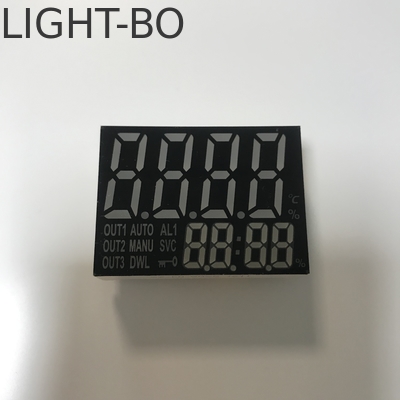

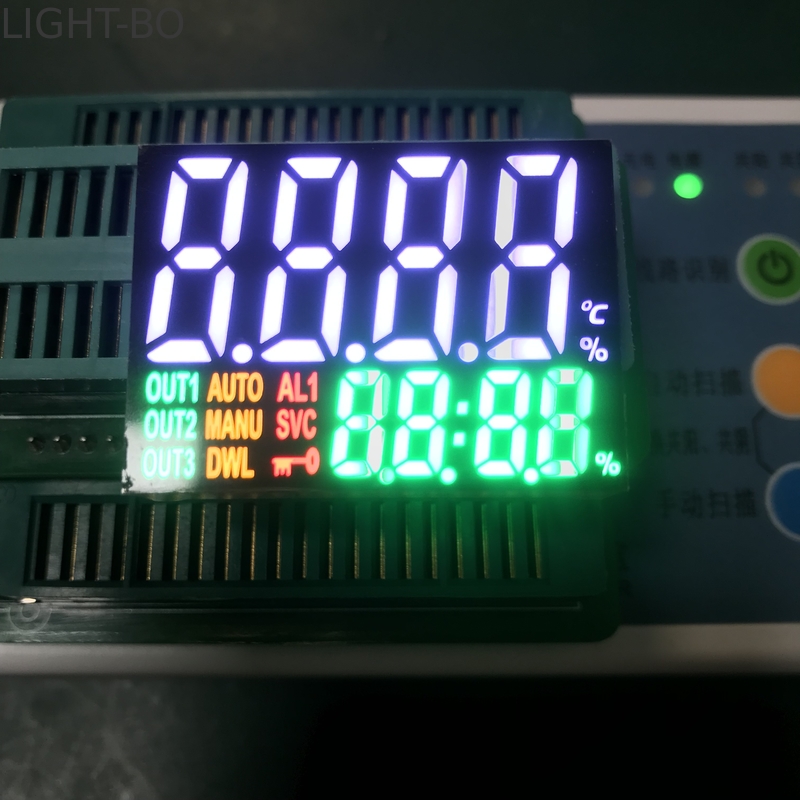

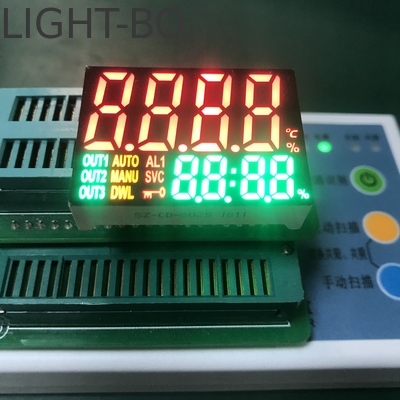

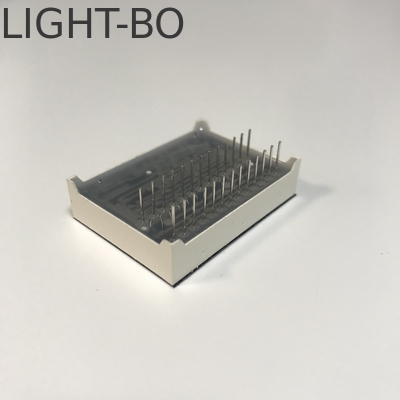

Multicolour Double Row Four Digit 7 Segment Led Display For Control Instruments

Multicolour Double Row Four Digit 7 Segment Led Display For Control Instruments

Brand Name:	LIGHT-BO
Model Number:	LB3828
MOQ:	1000 pcs
Price:	Negotiation
Payment Terms:	T/T,
Supply Ability:	30,000 pcs /day

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN,CHINA

Certification:

ROHS

Outer Dimension:

38*28mm

Emitting Colour:

Red & White&Yellow-Green&Amber

Digit Height:

0.67 Inch (17mm)

Polarity:

Common Anode

Lifespan:

80000hrs

Usage:

Indoor/Outdoor

Packaging Details:

EPE +CARTON

Supply Ability:

30,000 pcs /day

Highlight:

Four Digit Led Display

Control Instruments Led Display

7 Segment Led Display

Product Description

Ultra Red /White/Yellow Green/Amber Triple Digit 7 Segment LED Display For Refrigerator

Features:

Outer dimensions:44*19*9mm
Digit height: 0.67inch (17mm)
Emitting color : Red & White&Yellow-Green&Amber
Polarity: Common Anode

Advantages:

High-luminous intensity output
High-efficiency
Low-power consumption
Extremely low-current
Luminous evenly distributed on each segment
Emitting colors: various colors avaioaboe

Code:Yellow Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	20		40	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	569		574	nm

Code:Ultra Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Code:Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=40uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm

Code:Amber

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=20mA		20		mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA	585		595	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40～+120	℃
Storage Temperature Range	Tstg	-40～+120	℃
Solder Temperature(3 sec)	Th	260	℃

LED working lifetime 80,000hrs, Absolute Maximum Rating at Ta=25℃

Multicolour Double Row Four Digit 7 Segment Led Display For Control Instruments 0

FAQ:

1.Is your parts new ?

Answer: Yes, our parts could accept any kinds of testing, if there is any quality problem we will take responsibility.

2.What is your warranty?

Answer: Within one year after package have been received.

3.How to pay the order?

Answer: We could accept TT, Escrow, Paypal. After the order have been confirmed the invoice will be sent for reference. Then make payment as the way you like, as soon as the payment have been confirmed, we will arrange shipment.

4.Quality problems

Answer: If there is any quality problem or question, we could offer technical support or return service.

5.What is your lead time?

Answer: about 15-20 days ; For in-stock products. Lead time is about 5-7days after payment have been confirmed.

6. May I have a sample for testing?

Answer: Yes, only to pay shipping cost, free samples would be sent for testing.
