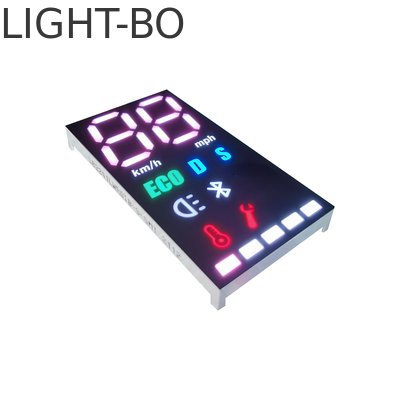

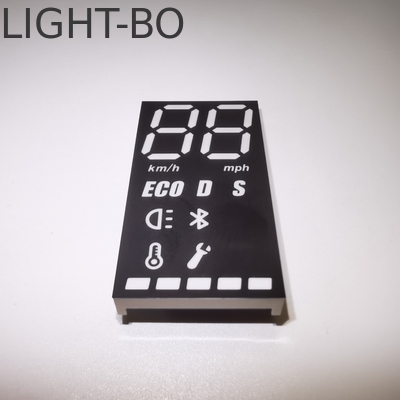

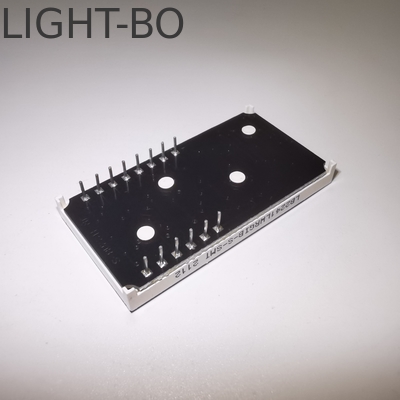

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

name

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Brand Name:	LIGHTBO
Model Number:	LB2241LWRIBG-SMT
MOQ:	1000PCS
Price:	Negotiation
Payment Terms:	TT in advance& Western Union,L/C
Supply Ability:	50000PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen,China

Certification:

RoHS&SGS&ISO

Color:

Super Bright White/Red/Green/Ice Blue

Outer Dimensions:

41.5*22*4.6MM

Polarity:

Common Cathode

Means Of Transport:

Ocean, Air, Land

Application:

Electric Motorcycle Vehicle Panel

Type:

Standard

Packaging Details:

EPE+Carton

Supply Ability:

50000PCS/Day

Highlight:

35mcd Seven Segment LED Display

,

Multicolour Seven Segment LED Display

,

635nm 3 Digit Led Display

Product Description

Multicolour 7 Segment LED Display common anode for Electric Motorcycle Vehicle Panel

High luminous intensity and reliability
High efficiency
Low power consumption
Extremely low current
Luminous evenly distributed on each segment
Stable performance
Long lifespan
Easy assembly
IC Compatible
Meet RoHS Compliant

Code: Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	3.0		3.5	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	200		220	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	525		530	nm

Code: Ultra Bright White

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.6	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	100		120	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm

Code: Bright Red

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	25		35	mcd
Spectrum With Of Half Value	△λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	625		635	nm

Code: ICE Blue

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.8		3.3	V
Reverse Voltage	Vr	Ir=10uA	30			V
Luminous Intensty	Iv	If=20mA		30		mcd
Spectrum With Of Half Value	△λ	If=20mA		30		nm
Wavelength	Dλ	If=20mA		480

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Company Exhibitions:

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Certifications:

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Office and Factory Overview:

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Shippment Services:

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Applications:

35mcd Multicolour Seven Segment LED Display 3 Digit 635nm For Motorcycle

Widely used in set-top boxes, home appliances and instrument panels, digital indicators and so on .
