18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

18mm Height 7 Segment LED Display 80mW Dual Line 4 Digits For Instrument Panel

Brand Name: LIGHTBO
Model Number: LB5736IWGRJY1B-SMT
MOQ: 1000PCS
Price: Negotiation
Payment Terms: TT in advance& Western Union, L/C
Supply Ability: 50000PCS/Day
Detail Information
Place of Origin:
Shenzhen,China
Certification:
RoHS&ISO9100
Color:
Bright White/Red/Green/Amber/Yellow-Green
Outer Dimensions:
57*36*8mm
Digit Height:
18mm/11mm
Polarity:
Common Anode
Lifespan:
100000hrs
Application:
Temperature Control
Packaging Details:
EPE+Carton
Supply Ability:
50000PCS/Day
Highlight:

18mm Height 7 Segment LED Display

,

7 Segment LED Display 80mW

,

Instrument Panel Seven Segment Display

Product Description

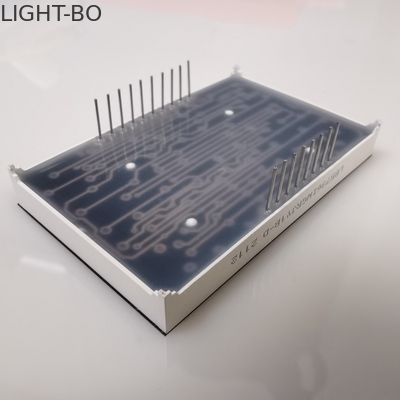

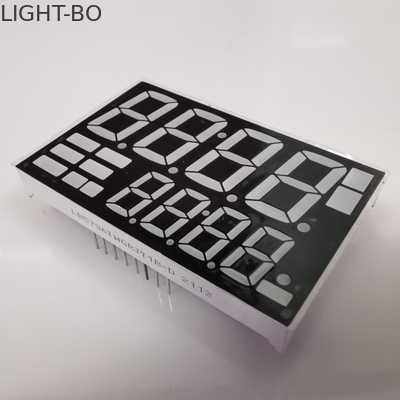

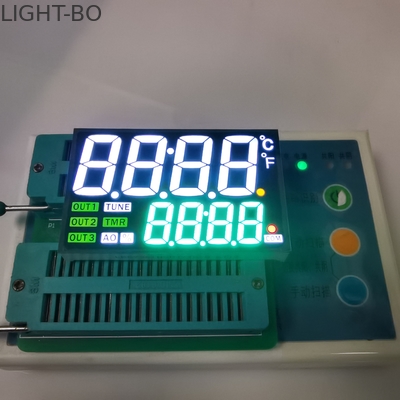

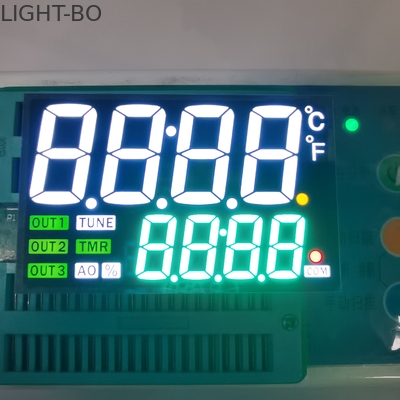

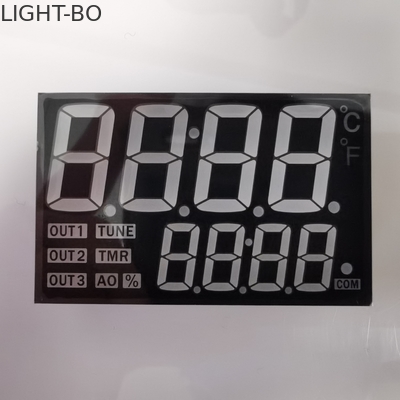

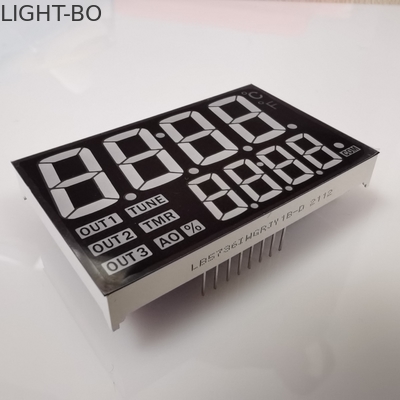

Ultra White / Ultra Green Dual Line 4 + 4 Digits Customized 7 Segment LED Display For Instrument Panel

  1. High luminous intensity and reliability
  2. High efficiency
  3. Low power consumption
  4. Extremely low current
  5. Luminous evenly distributed on each segment
  6. Stable performance
  7. Long lifespan
  8. Easy assembly
  9. IC Compatible
  10. Meet RoHS Compliant

Code:Pure Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 3.0   3.5 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 200   220 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 525   530 nm


Code:Ultra Bright White

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 2.8   3.6 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 100   120 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm

Code: Bright Red

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.2 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 25   35 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 625   635 nm


Code:Yellow Green

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA 20   40 mcd
Spectrum With Of Half Value △λ If=20mA   20   nm
Wavelength If=20mA 569   574 nm

Code:Amber

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.5 V
Reverse Voltage Vr Ir=10uA 5     V
Luminous Intensty Iv If=20mA   20   mcd
Spectrum With Of Half Value △λ If=20mA   30   nm
Wavelength If=20mA 585   595 nm


Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+120
Storage Temperature Range Tstg -40~+120
Solder Temperature(3 sec) Th 260

LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25
