Product Details:
|
| Outer Dimension: | 54*46*6MM | Polarity: | Common Anode |
|---|---|---|---|
| Emitting Colour: | Ultra Bright White/Red/Yellow | Trade Term: | ShenZhenEXW |
| Warranty: | 1 Years | Application: | Electric Motorcycle Vehicle |
| High Light: | 120mcd LED Seven Segment Display,80mW LED Display Module,Tri Vehicle LED Display Module |
||

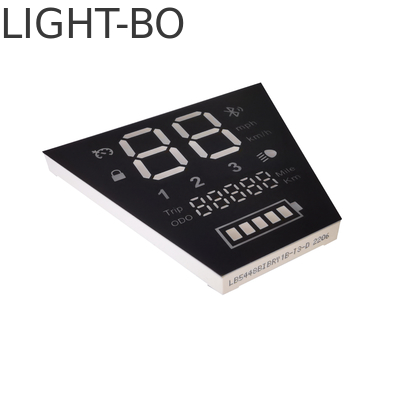

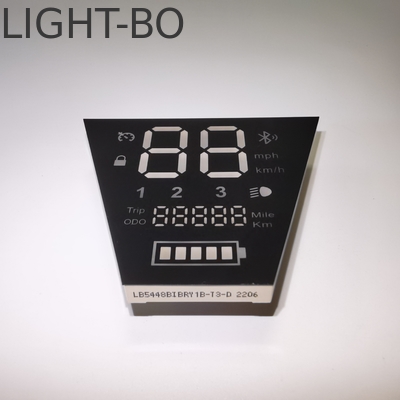

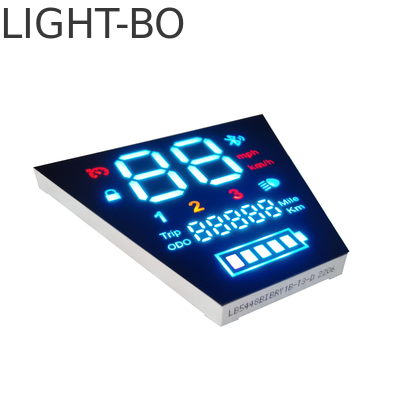

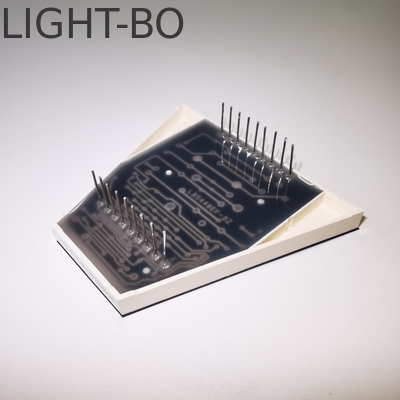

Customized White/Red/Yellow 7 Segment LED Display Module For Electric Motorcycle Vehicle
Features:
Custom led display module
Outer dimensions: 54*46*6MM
Common anode
Yellow segment white face with film
Ultra bright white /red/yellow
Emitting colors: available in red, blue, yellow green, pure green, pure white, amber, and orange
Advantages:
High luminous intensity and reliability
Low power consumption
Extremely low current
Stable performance
Long lifespan
Easy-to-assemble
IC compatible
Meet RoHS Compliant
Code:Ultra Bright White
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 2.8 | 3.6 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 100 | 120 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm |
Code: Bright Red
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | 2.2 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 25 | 35 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 625 | 635 | nm |
Code:Yellow Green
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 20 | 40 | mcd | |
| Spectrum With Of Half Value | △λ | If=20mA | 20 | nm | ||
| Wavelength | Dλ | If=20mA | 569 | 574 | nm |
Code:Amber
| Parameter | Symbol | Condition | Min | Typ | Max | Unit |
| Forward Voltage | Vf | If=20mA | 1.8 | 2.5 | V | |
| Reverse Voltage | Vr | Ir=10uA | 5 | V | ||
| Luminous Intensty | Iv | If=20mA | 20 | mcd | ||
| Spectrum With Of Half Value | △λ | If=20mA | 30 | nm | ||
| Wavelength | Dλ | If=20mA | 585 | 595 | nm |
Absolute Maximum Ratings(Ta=25℃)
| Parameter | Symbol | Ratings | Unit |
| Forward Current(per dice) | Ipm | 20 | mA |
| Reverse Voltage(per dice) | Vr | 5 | V |
| Power Dissipation(per dice) | Pm | 80 | mW |
| Operating Temperature Range | Topr | -40～+120 | ℃ |
| Storage Temperature Range | Tstg | -40～+120 | ℃ |
| Solder Temperature(3 sec) | Th | 260 | ℃ |
LED working lifetime 100,000hrs, Absolute Maximum Rating at Ta=25℃
