|Emitting Colour:||Super Bright Red||Outer Dimension:||37.8*21.1*7.9mm|
|Digit Height:||13.8mm (0.54")||Polarity:||Common Anode|

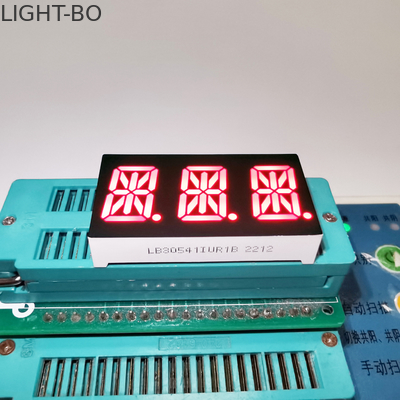

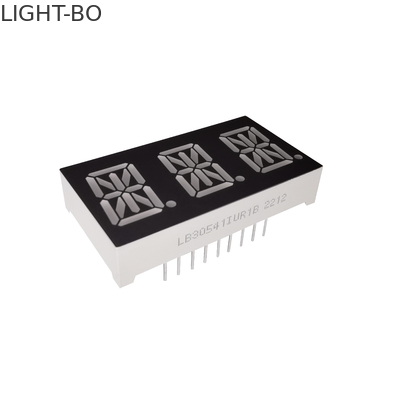

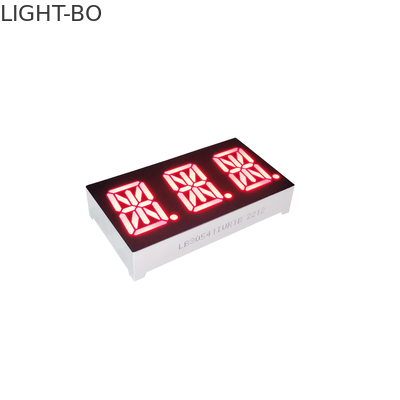

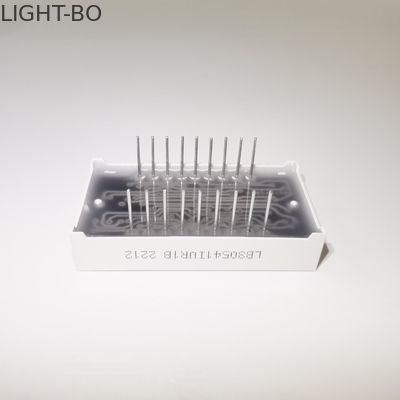

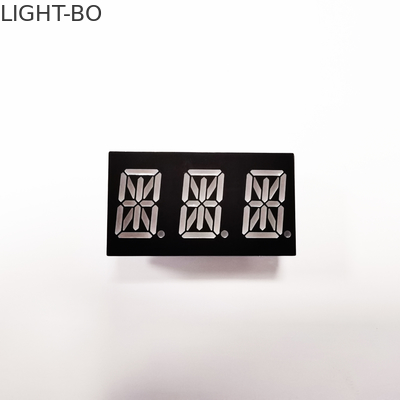

Super Red 14 Segment LED Display,
Triple Digit 14 Segment LED Display,
Instrument Panel 14 Segment Display
Quick Detail of Segment LED Displays
1. We can supply you all kinds of 7 segment LED display:
--- Digit size: from 0.25" to 20"
--- Digit Numer: 1, 2, 3, 4, 5 and 6 digits
2. Segment : 7 segment, 14 segment and 16 segment both available
3. Available Emitting color: Red, Yellow-green,green, blue, yellow, pink, white, bi-color
4. Available surface color: black,gray or red
Specification of Segment LED Displays
|Product Name||0.54 Inch 3 Digit 14 Segment LED Display||Other Optional|
|Part NO.||LB30541IUR1B||Can print your part number|
|Digit number||4 digit||1digits,2digits, 3digits,5digits,6 digits|
|Digit height||13.8mm (0.54 inch)||0.25,0.36,0.39....5.0(inch)|
|Color||RED||White, blue,pure green, yellow-green, orange,etc.|
|Size||37.8*21.1*7.9mm||Other size are supported|
|Polarity||Common Anode||Common Cathode|
|Lead time for sample||5-7 working days||Tooling samples are 15-20 working days|
|Lead time for formal order||15-20 working days||According to order quantity|
|OEM&ODM||Support||Based on customer’s drawing or idea|
|LOGO printing||Support||Based on customer’s drawing or idea|
|MOQ||1000PCS||Can accept 100-500pcs for first order|
|Spectrum With Of Half Value||λ||If=20mA||20||nm|
Absolute Maximum Ratings(Ta=25℃)
|Forward Current(per dice)||Ipm||20||mA|
|Reverse Voltage(per dice)||Vr||5||V|
|Power Dissipation(per dice)||Pm||80||mW|
|Operating Temperature Range||Topr||-40~+120||℃|
|Storage Temperature Range||Tstg||-40~+120||℃|
|Solder Temperature(3 sec)||Th||260||℃|
Feature of Segment LED Displays
--White segment Black surface
--High luminous intensity
--Low current operation
--Continuous uniform segments
--Easy mounting on PCB
Application of Segment LED Displays
-- Audio Equipment or instrument panels;
-- General using for digital indicators;
-- Multimedia products;
-- Bank exchange rate display;
-- LED clock display;
-- Display for gas station and other various display areas of equipment/machine.
Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems
