5x7 Dot Matrix LED Display
Created with Pixso.

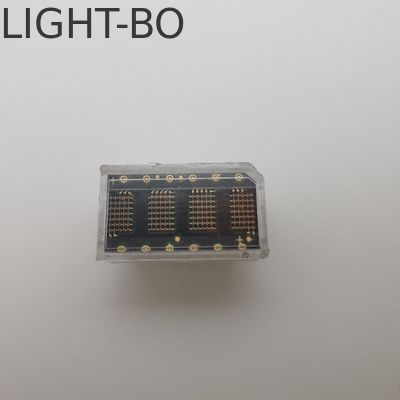

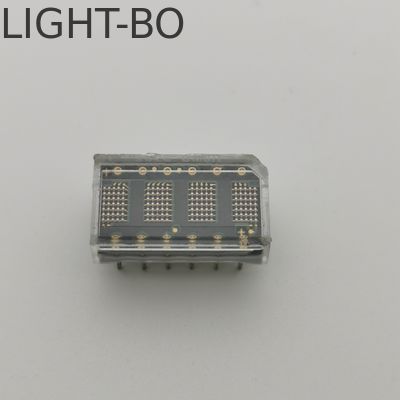

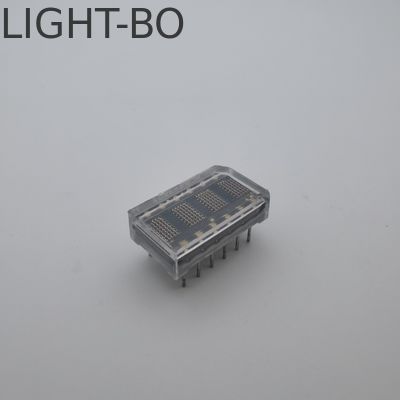

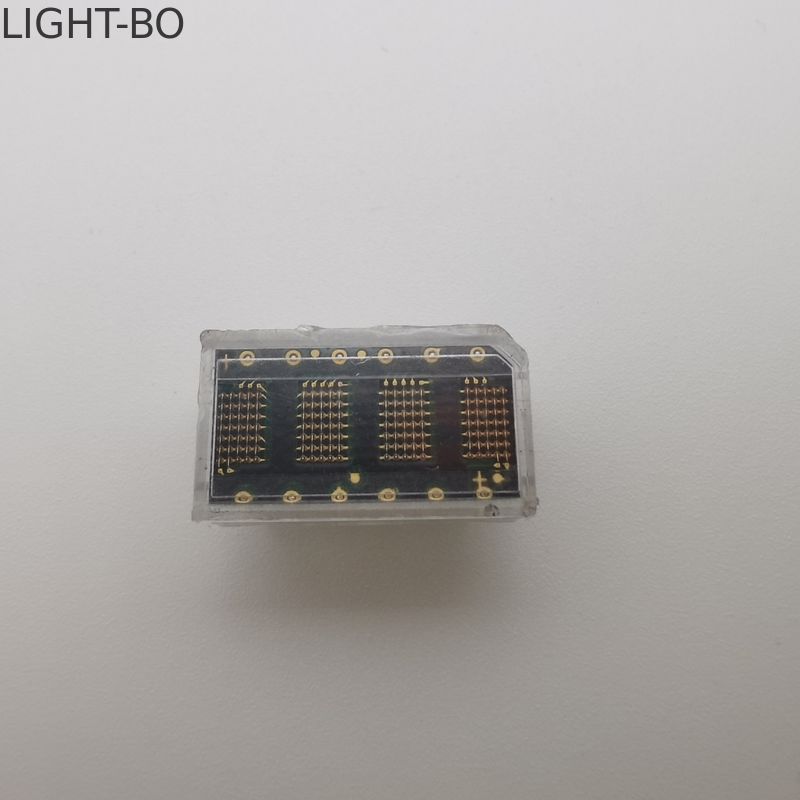

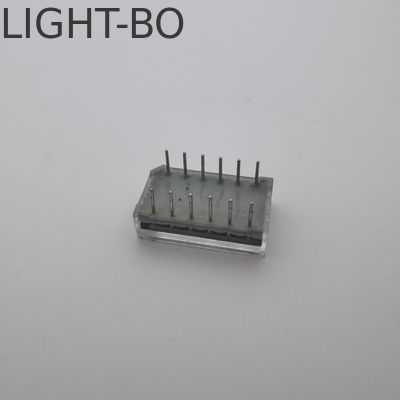

LED DISPLAY 5X7 Dot Matrix LED Display 4CHAR 3.8MM RED HCMS-3902

name

LED DISPLAY 5X7 Dot Matrix LED Display 4CHAR 3.8MM RED HCMS-3902

Brand Name: LIGHTBO
Model Number: LB-3902S(HCMS-3902)
MOQ: 1000PCS
Price: Negotiate
Payment Terms: TT in advance
Supply Ability: 50000pcs/days
Detail Information
Product Description
Detail Information
Place of Origin:
SHENZHEN，CHINA
Certification:
ISO9001&ROHS
Row And Column:
5x7
Operating Temperature:
-40°C To 85°C
Application:
Information Display
Chip Color:
Red
Mounting Type:
Through-Hole/Surface Mount
Wavelength:
620-625nm
Power Supply:
5V
Packaging Details:
EPE+Carton
Supply Ability:
50000pcs/days
Highlight:

5x7 Dot Matrix LED Display

,

5x7 led dot matrix display

Product Description

LED DISPLAY 5X7 Dot Matrix LED Display 4CHAR 3.8MM RED HCMS-3902





Color:RED

Parameter Symbol Condition Min Typ Max Unit
Forward Voltage Vf If=20mA 1.8   2.3 V
Reverse Voltage Vr Ir=10uA   5   V
Luminous Intensty Iv If=20mA 80   95 mcd
Spectrum With Of Half Value λ If=20mA   20   nm
Wavelength Dλ If=20mA 620   625 nm

Absolute Maximum Ratings(Ta=25℃)

Parameter Symbol Ratings Unit
Forward Current(per dice) Ipm 20 mA
Reverse Voltage(per dice) Vr 5 V
Power Dissipation(per dice) Pm 80 mW
Operating Temperature Range Topr -40~+85 ℃
Storage Temperature Range Tstg -40~+85 ℃
Solder Temperature(3 sec) Th 260 ℃



LB-3902S(HCMS-3902) is an intelligent alphanumeric LED display module that integrates a character generator, driver circuitry, and a serial interface. It is compact, easy to drive, and requires no external character ROM, making it ideal for a wide range of small-scale character display applications.

1. Instrumentation Displays

  • Digital voltmeters and ammeters

  • Multifunction test equipment (e.g., oscilloscopes, signal generators)

  • Human-Machine Interfaces (HMIs) in industrial controllers

2. Communication Devices

  • Routers, modems, and switches for status display

  • Telephony terminals and intercom systems for message output

3. Portable Devices

  • Handheld terminals, digital scales, and portable testers

  • Medical equipment (e.g., blood glucose meters, blood pressure monitors)

4. Consumer Electronics

  • Front panel displays for audio systems, amplifiers, and DVD players

  • Status displays in smart home systems

5. Industrial Automation & Process Control

  • Machine status or fault code indicators

  • Real-time production data output on factory lines

6. Embedded Development & Education

  • Character display demos in MCU or FPGA development projects

  • Educational lab equipment requiring simple displays
