Super Bright Red Square DOT Matrix 5*7 LED Display for Lift Floor Number Indicator

Name: Super Bright Red Square DOT Matrix 5*7 LED Display for Lift Floor Number Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03576ER1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB03576ER1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Outer Dimensions:

24*32*7mm

Polarity:

Row Cathode Column Anode

Display Type:

LED Dot Matrix Display

Forward Current:

5-10mA/LED

Wavelength:

620-625nm

Application:

Information Display Screen

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

Lift Floor Number Indicator LED Display

Red Square DOT Matrix LED Display

Product Description

Super Bright Red Square DOT Matrix 5×7 LED Display for Lift Floor Number Indicator

High-performance 5×7 square dot matrix LED display specifically designed for lift floor number indicators and industrial display applications.

Key Specifications

Emitting dot diameter: 3.5mm
Outer dimensions: 24×32×7 mm
Connection: Row cathode column anode
Emitting color: Super bright RED
Wavelength: 620-625nm
IV: 70-90mcd
VF: 1.8-2.2V/LED
Available in red, blue, yellow, green, orange, white and amber

Product Features

High luminous intensity with low power consumption
Stable performance and long lifetime
Continuous uniformity
Easy assembly
IC Compatible
RoHS directive-compliant

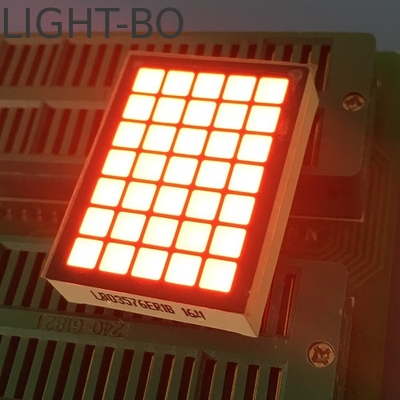

5×7 dot matrix LED display close-up view

Technical Parameters by Color Code

Yellow Green - J/JU

Vibrant yellow-green display option offering excellent visibility and aesthetic appeal for various applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow hue providing excellent visibility with a comfortable glow for extended viewing.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Energetic orange color offering high visibility and visual impact for attention-grabbing displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

High-intensity red display providing maximum visibility and impact for critical indicator applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Maximum brightness red option for applications requiring the highest level of visibility and presence.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green display ideal for eco-friendly designs and applications requiring natural, refreshing visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Vibrant blue display offering modern aesthetic appeal with excellent visibility in various lighting conditions.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Pure white display providing exceptional clarity and sophisticated appearance for premium applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring optimal reliability and durability under demanding operating conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we are committed to innovation and superior quality in LED display technology.

LIGHTBO delivers top-tier, cost-efficient custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic industry landscapes.

Product Applications

Our comprehensive range of LED displays including 7 Segment LED Display, Customized LED Display, Numeric LED Display, and Dot Matrix LED Display are engineered for diverse applications. These solutions enhance functionality and visual appeal in household appliances, temperature and humidity monitoring systems, refrigerator controllers, thermostats, and HVAC systems with superior performance and quality.

Certifications

Office and Factory Overview

Company Exhibitions

Shipping and Logistics

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs. We also accept sample orders and small orders with quantities less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, but freight costs will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with available materials, we can adjust production to complete within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much will shipping charges be?

A: Shipping charges depend on shipment size and shipping method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and approved mold drawings.

Q14: What shipping methods do you use?

A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing on all products before shipment.
