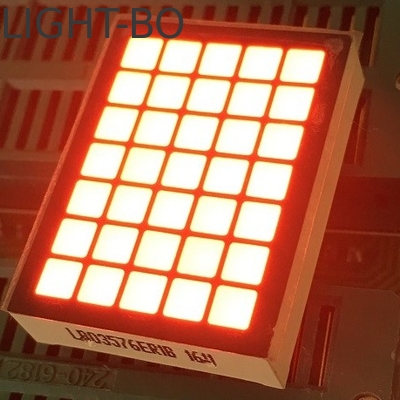

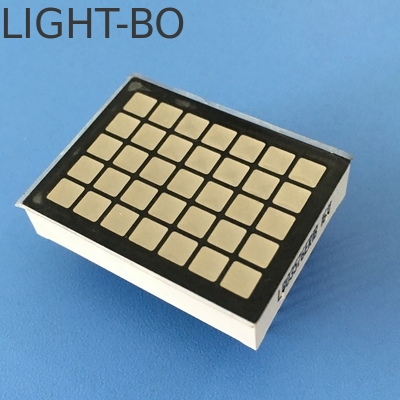

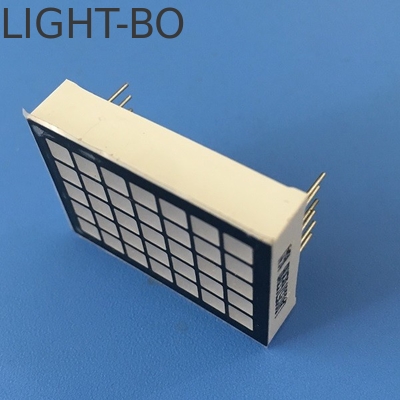

Square DOT Matrix LED Display Super Bright Red 5*7 for Lift Floor Number Indicator

Square DOT Matrix LED Display Super Bright Red 5*7 for Lift Floor Number Indicator

Brand Name:	LIGHT-BO
Model Number:	LB03576BR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Outer Dimensions:

24*32*7mm

Pixel Pitch:

3 Mm

Application:

Lift Position Indicator

Forward Current:

5-10mA/LED

Forward Voltage:

2.8-3.2V/led

Wavelength:

620-625nm

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

5*7 Dot Matrix LED Display

Red DOT Matrix LED Display

Product Description

5*7 square dot matrix led display
Emitting dot diameter:3.5mm
Outer dimensions:24*32*7 mm
Connection:Row Anode column Cathode
Emitting color:Super bright RED
Wavelength:620-625nm
IV: 70-90mcd
VF:1.8-2.2V/LED
Available in red,blue,yellow,green,orange,white and amber

Product Features

High luminous intensity low power consumption
Stable performance
Long lifetime
Continuous uniformity
Easy assembly
IC Compatible
RoHS directive-compliant

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Applications:
Widely used for lift position indicators, elevator floor indicators and display screens,moving signs,message boards,home appliances and so on

Why choose us?
1. Best quality
- Three times of inspection on all products on production:
Step 1；raw material check
Step 2: process check and full inspection after chip&wire bonding
Step 3: full test before packing and partial check before shipment
2. Best price
- manufacturer
- best suppliers sources
- all products by oneself
3. Our customer
- long-term relationships with Gree, Media, Panasonic, Chigo, TCL, Samsung, Kone Elevators, Hisense etc
4. Company strength
- good quality&competitive price
- listed company
- factory of over 100 workers, with many auto-machines under advanced ERP management.
- management system: ISO 9001:2008,SGS
