Super White Square DOT Matrix LED Display 5*7 for Lift Floor Number Indicator

Name: Super White Square DOT Matrix LED Display 5*7 for Lift Floor Number Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03576BW1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB03576BW1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	20000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Outer Dimensions:

24*32*7mm

Polarity:

Row Anode Column Cathode

Application:

Lift Position Indicator

Display Type:

LED Dot Matrix Display

Forward Current:

5-10mA/LED

Forward Voltage:

2.8-3.2V/led

Delivery Date:

10-15 Days

Colour:

Ultra Bright White

Outer Dimenisons:

22*30*10MM

Chip Color:

Red

Operating Temperature Range:

-20°C To +70°C

Interface Type:

Direct Drive Or Via Driver IC

Emitting Colour:

Ultra Bright White

Brightness:

High

Dot Type:

5*7 Suqare Dot Matrix

Lifespan:

50,000 Hours (typical)

Specification:

12.7 X 17.8 X 6.3 Mm

Interface:

Direct Drive Or Via Driver IC

Operating Temperature:

-20°C To 70°C

Packaging Details:

EPE+Carton

Supply Ability:

20000pcs/days

Highlight:

5*7 Dot Matrix LED Display

White Dot Matrix LED Display

Product Description

Super White Square DOT Matrix LED Display 5×7 for Lift Floor Number Indicator

5×7 square dot matrix LED display designed for lift floor number indicators and other industrial applications.

Product Specifications

Emitting dot diameter: 3.5mm

Outer dimensions: 24×32×7 mm

Connection: Row Anode column Cathode

Emitting color: Super Bright White

Wavelength: 620-625nm

IV: 70-90mcd

VF: 1.8-2.2V/LED

Available in red, blue, yellow, green, orange, white and amber

Product Features

High luminous intensity with low power consumption
Stable performance and long lifetime
Continuous uniformity across display
Easy assembly and IC compatible
RoHS directive-compliant

Quality Assurance

Three-stage inspection process ensures superior quality:

Step 1: Raw material inspection
Step 2: Process check and full inspection after chip & wire bonding
Step 3: Full testing before packing and partial check before shipment

Technical Parameters

Yellow Green - J/JU

Vibrant yellow-green color option for enhanced visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow hue for inviting visual displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Energetic orange color for vibrant display applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

High-intensity red for maximum visibility and impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Maximum brightness red for superior visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green color for eco-friendly and natural designs.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Modern blue color for contemporary display aesthetics.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Pristine white for superior clarity and elegance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

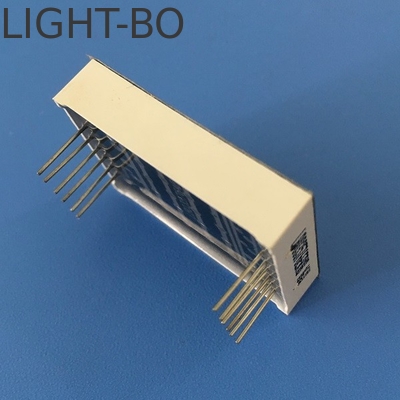

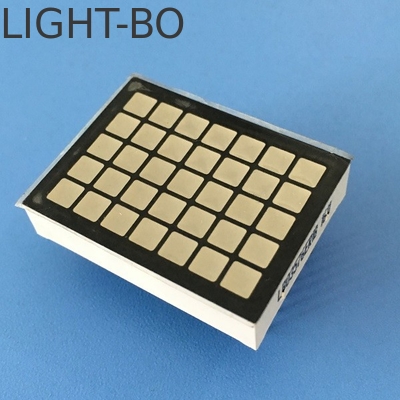

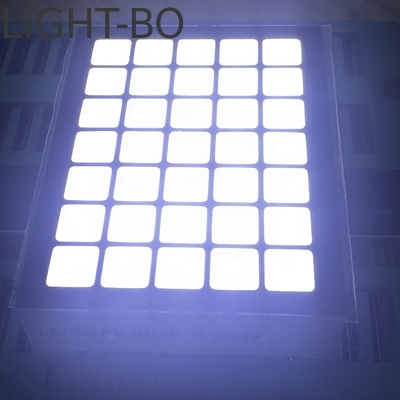

Product Images

Company Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leader in OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we are committed to innovation and superior quality. Our company serves major clients including Gree, Media,Chigo, TCL, Samsung, Kone Elevators, and Hisense.

Applications

Our LED displays are ideal for various applications including household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems. We offer 7 Segment LED Displays, Customized LED Displays, Numeric LED Displays, and Dot Matrix LED Displays.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED display, SMD LED Display, Dot matrix LED Display, Arrow LED display, Custom Design LED Display, LED light bar, Through hole LED, SMD LEDs, LED Backlights, and more.

Q3: What is your MOQ?

A: Our MOQ is 1000 pcs, but we also accept sample orders and small orders with quantity less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is about 10-20 days, depending on order quantity and raw materials. For urgent orders with available raw materials, we can deliver within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union and PayPal for small amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are the shipping charges?

A: Shipping charges depend on shipment size and method. We will provide charges upon request.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the lead time for customized product samples?

A: Sample lead time is about 20-25 working days after receiving mold cost and mold drawing approval.

Q14: What shipping methods do you use?

A: We ship by DHL, FEDEX, UPS, EMS, by air, by sea, or any other method that works best for you.

Q15: How do you ensure product quality?

A: We are ISO 9001 QMS certified manufacturers with over 20 years of experience. We conduct twice 100% testing of all products before shipment.
