5*7 Square DOT Matrix LED Display Super Bright Red for Elevator Floor Indicator

Name: 5*7 Square DOT Matrix LED Display Super Bright Red for Elevator Floor Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03574BR1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB03574BR1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Advantage:

OEM & ODM Acceptable

Emitting Dot Diameter:

3.39mm

Face Color:

White DOT Matrix Black Face

Connection:

Row Anode Column Cathode

Outer Dimenisons:

22*30*10mm

Luminous Intensity:

50-60mcd

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Elevator Floor Indicator LED Display

Square DOT Matrix LED Display

5*7 DOT Matrix LED Display

Product Description

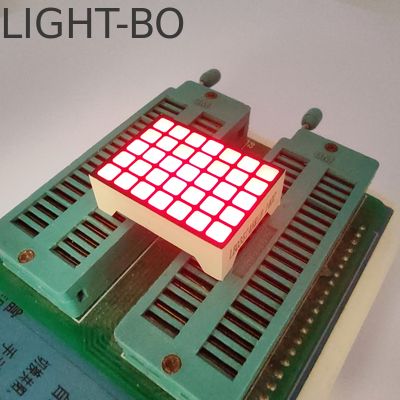

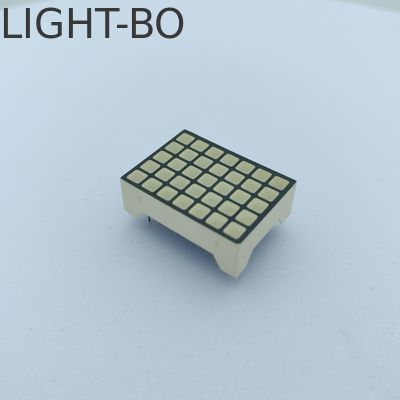

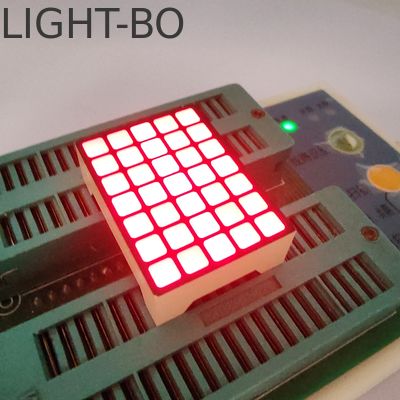

5×7 Square DOT Matrix LED Display - Super Bright Red for Elevator Floor Indicator

High-performance 5×7 square dot matrix LED display designed specifically for elevator floor indicators and industrial applications. Features super bright red illumination with excellent visibility and reliability.

Key Specifications

Matrix Configuration: 5×7 square dot matrix
Emitting Dot Diameter: 3.39mm
Outer Dimensions: 22×30×10mm
Connection Type: Row anode column cathode
Available Colors: Red, blue, yellow, green, orange, white, and amber

Electrical Characteristics

Forward Voltage (Vf): 1.8-2.2V/LED
Luminous Intensity: 50-60mcd
Color Temperature: 6000-6500K

Detailed Technical Parameters by Color Code

Yellow Green (Code: J/JU)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	30	40	mcd
Wavelength	Dλ	If=10mA	569	574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.5	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	585	595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.4	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	60	80	mcd
Wavelength	Dλ	If=10mA	600	605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	50	60	mcd
Wavelength	Dλ	If=10mA	630	635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	1.8	2.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	80	100	mcd
Wavelength	Dλ	If=10mA	625	635	nm

Pure Green

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.6	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	180	mcd
Wavelength	Dλ	If=10mA	515	525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Max	Unit
Forward Voltage	Vf	If=10mA	2.8	3.2	V
Reverse Voltage	Vr	Ir=10uA	5		V
Luminous Intensity	Iv	If=10mA	120	140	mcd
Wavelength	Dλ	If=10mA	460	465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K

Absolute Maximum Ratings (Ta=25°C)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	°C
Storage Temperature Range	Tstg	-40~+85	°C
Solder Temperature (≤3 seconds)	Th	260	°C

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing and reliable performance.

Product Applications

Our 5×7 dot matrix LED displays are engineered for seamless integration into various applications including elevator floor indicators, household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems.

Certifications & Quality Assurance

Office and Factory Overview

Company Exhibitions

Shipping and Logistics

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are an original manufacturer with more than 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our main products include 7 Segment LED displays, SMD LED displays, Dot matrix LED displays, Arrow LED displays, Custom Design LED displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your MOQ?

A: Our MOQ is 1000 pieces. We also accept sample orders and small orders with quantities less than our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes. We can provide 5-10 free samples for testing, but the freight cost will be borne by the customer.

Q5: How long is your delivery time?

A: Delivery time is approximately 10-20 days, depending on order quantity and raw material availability. For urgent orders with available raw materials, we can adjust production to deliver within 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for small amounts. Payment method details are negotiable.

Q7: Can you quote FOB prices?

A: Yes. We can quote prices based on incoterms EXW, FOB, CIF, and DDP.

Q8: How can I get your catalogue and price list?

A: Please provide your email address or contact us directly through our website for our catalogue and price list.

Q9: Can I negotiate prices?

A: Yes, we may consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping charges depend on shipment size and shipping method. We will provide charges based on your requirements.

Q11: Can you do custom design products?

A: Yes, OEM & ODM services are available. We can customize sizes, LED colors, and functional icons according to your requirements.

Q12: If I send my design, will you keep it confidential?

A: Yes, we will not show or sell your design to others without your authorization.

Q13: What is the sample lead time for customized products?

A: Sample lead time is approximately 20-25 working days after receiving mold cost and mold drawing approval.

Q14: What shipping methods do you use?

A: We typically ship via DHL, FedEx, UPS, EMS, by air, or by sea. You can choose the method that works best for you.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct twice 100% testing of all products before shipment.
