Pure Green 3mm 5 X 7 DOT Matrix LED Display for Digital Time Zone Clock Indicator

Pure Green 3mm 5 X 7 DOT Matrix LED Display for Digital Time Zone Clock Indicator

Brand Name:	LIGHT-BO
Model Number:	LB03572BG1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Features:

Competitive Price With High Quality

Application:

Information Display

Shape:

Dot Matrix

Pixel Pitch:

3 MM

Reverse Voltage:

Ip Rating:

IP54

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Product Description

Pure Green 3mm 5 X 7 DOT Matrix LED Display for Digital Time Zone Clock Indicator

Product Descriptions:
5*7 dot matrix led display
Emitting dot diameter:3mm
Outer dimensions:22.75 x 31.8 X 8.5mm
Connection:Row anode column Cathode
Emitting color:Pure Green
620-625NM
120-160MCD
2.5-3.0V/LED
Available in red,blue,yellow,green,orange,white and amber

Product Feature:

Forward voltage (high luminous intensity output)

Low power consumption

Extremely low current

Luminous evenly distributed on each segment

Industrial standard size

Provides excellent reliability in bright ambient light

Stable performance

Long lifetime

Meet RoHS/REACH compliant

Code:Ultra Bright White -WH

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.0	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	120		140	mcd
LED color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Color:Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=20mA	2.5		3.0	V
Reverse Voltage	Vr	Ir=10uA		5		V
Luminous Intensty	Iv	If=20mA	120		160	mcd
Spectrum With Of Half Value	λ	If=20mA		20		nm
Wavelength	Dλ	If=20mA	515		525	nm

Code:Yellow Green- J/JU

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	30		40	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		573	nm

Code:Amber/Yellow -Y

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Code:Orange -F

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Code:Super Bright Red -R

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensty	Iv	If=10mA	50		60	mcd
Spectrum With Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Absolute Maximum Ratings(Ta=25℃)

Parameter	Symbol	Ratings	Unit
Forward Current(per dice)	Ipm	20	mA
Reverse Voltage(per dice)	Vr	5	V
Power Dissipation(per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+120	℃
Storage Temperature Range	Tstg	-40~+120	℃
Solder Temperature(3 sec)	Th	260	℃

Industrial Equipment

Industrial ovens, reliability test equipment, analytical instruments, process control equipment, test and measuring instruments, temperature controllers, programmable logic controllers, security systems

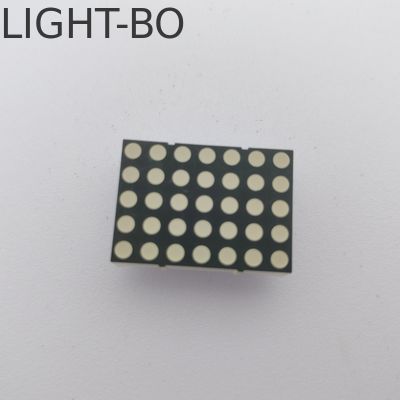

Pure Green 3mm 5 X 7 DOT Matrix LED Display for Digital Time Zone Clock Indicator 0

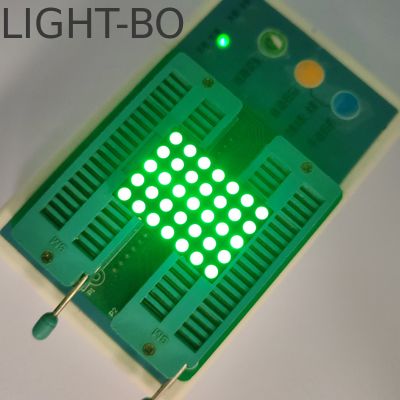

Pure Green 3mm 5 X 7 DOT Matrix LED Display for Digital Time Zone Clock Indicator 1
