3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator

Name: 3mm DOT Matrix LED Display 5 X 7 for Digital Time Zone Clock Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03572EBH1S
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB03572EBH1S
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Outer Dimensions:

22.75 X 31.8 X 8.5mm

Application:

Electronic Displays

Led Color:

Ultra Bright Blue

Luminous Intensity:

100-120mcd

Description:

3mm 5 X 7 Dot Matrix Led Display

Brightness:

High

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Digital Time Zone Clock LED Display

DOT Matrix LED Display 5 X 7

Product Description

3mm DOT Matrix LED Display 5×7 for Digital Time Zone Clock Indicator

High-performance 5×7 dot matrix LED display designed for digital time zone clock indicators and various industrial applications.

Product Specifications

Emitting dot diameter: 22.75 × 31.8 × 8.5mm

Outer dimensions: Row Cathode Column anode

Connection: Ultra Bright Blue

Emitting color: 460-470NM

Wavelength: 100-120MCD

Luminous Intensity: 2.6-3.0V/LED

Forward Voltage: red, blue, yellow, green, orange, white and amber

Available colors: 3mm

Quality Assurance

Raw material inspection
Process verification and full inspection after chip & wire bonding
Comprehensive testing before packaging and partial verification before shipment

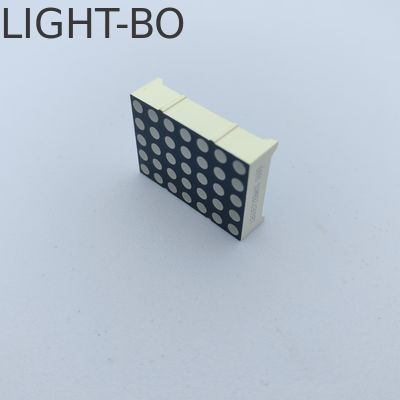

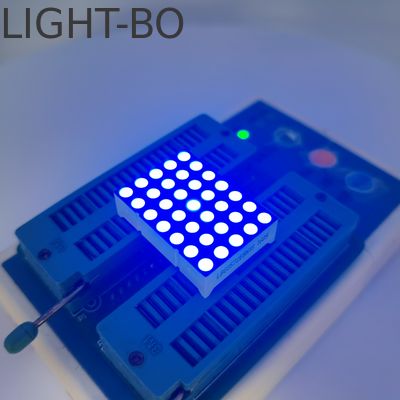

Product Images

Technical Parameters

Yellow Green - J/JU

Vibrant yellow-green color option for enhanced visual appeal and design flexibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow - Y

Warm amber/yellow hue providing comfortable illumination and visual attraction.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange - F

Energetic orange color for dynamic visual displays with enhanced visibility.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red - R

High-intensity red for maximum visibility and attention-commanding displays.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red - UR

Maximum luminosity red for superior visibility and display impact.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Crisp green color ideal for eco-friendly designs and natural visual appeal.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue - BH

Vibrant blue for modern, sophisticated display applications.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width Of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White - WH

Pure white for exceptional clarity and elegant display performance.

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Performance specifications ensuring optimal reliability under demanding conditions.

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Profile

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions built on a foundation of trust and technical expertise.

LIGHTBO provides cost-effective custom solutions that enhance competitive advantages in global markets, empowering clients to succeed in dynamic industry landscapes.

Applications

Ultra Red 5×7 DOT Matrix Display application example

Our cutting-edge Ultra Red 5×7 DOT Matrix Display, along with 7 Segment LED Display, Customized LED Display, and Numeric LED Display products, are engineered for seamless integration into diverse applications including:

Household appliances modernization
Precise temperature and humidity monitoring
Refrigerator controllers and thermostats
HVAC systems and industrial controls

Certifications & Facilities

Company Exhibitions

Shipping & Logistics

We support multiple shipping methods including DHL, FEDEX, UPS, EMS, air freight, and sea freight to meet your specific requirements.

Frequently Asked Questions

Q1: Are you a trading company or manufacturer?

A: We are the original manufacturer with over 20 years of experience in optoelectronic LED displays.

Q2: What are your main products?

A: Our product range includes 7 Segment LED displays, SMD LED Displays, Dot matrix LED Displays, Arrow LED displays, Custom Design LED Displays, LED light bars, Through hole LEDs, SMD LEDs, and LED Backlights.

Q3: What is your minimum order quantity (MOQ)?

A: Our standard MOQ is 1000 pieces, but we accept sample orders and smaller quantities below our MOQ.

Q4: Can I get samples for testing before placing an order?

A: Yes, we provide 5-10 free samples for testing, with freight costs borne by the customer.

Q5: What is your delivery time?

A: Standard delivery is 10-20 days, depending on order quantity and material availability. Urgent orders with available materials can be completed in 7-10 days.

Q6: What are your payment terms?

A: We accept bank transfer, T/T, Western Union, and PayPal for smaller amounts. Payment methods are negotiable.

Q7: Can you provide FOB prices?

A: Yes, we quote prices based on incoterms including EXW, FOB, CIF, and DDP.

Q8: How can I get your catalog and price list?

A: Please provide your email address or contact us directly through our website.

Q9: Can I negotiate prices?

A: Yes, we consider discounts for bulk orders.

Q10: How much are shipping charges?

A: Shipping costs depend on shipment size and method. We provide quotes based on your requirements.

Q11: Do you offer custom design services?

A: Yes, we provide comprehensive OEM & ODM services, customizing sizes, LED colors, and functional icons to your specifications.

Q12: Will my custom design remain confidential?

A: Yes, we will not share or sell your design to others without authorization.

Q13: What is the lead time for custom product samples?

A: Custom samples typically require 20-25 working days after receiving mold costs and design approval.

Q14: What shipping methods do you use?

A: We ship via DHL, FEDEX, UPS, EMS, air freight, and sea freight. You can choose the method that best suits your needs.

Q15: How do you ensure product quality?

A: As ISO 9001 certified manufacturers with over 20 years of experience, we conduct comprehensive 100% testing of all products before shipment.
