Super Bright Red 5*7 Square DOT Matrix LED Display for Elevator Floor Indicator

Name: Super Bright Red 5*7 Square DOT Matrix LED Display for Elevator Floor Indicator
Brand: Shenzhen Guangzhibao Technology Co., Ltd.
SKU: LB03574ER1B
Price: 9.20 USD
Availability: InStock

Brand Name:	LIGHT-BO
Model Number:	LB03574ER1B
MOQ:	1000
Price:	Negotiate
Payment Terms:	TT in advance
Supply Ability:	50000pcs/days

Detail Information

Product Description

Detail Information

Place of Origin:

SHENZHEN，CHINA

Certification:

ISO9001&RoHS

Advantage:

OEM & ODM Acceptable

Emitting Dot Diameter:

3.39MM

Face Color:

White DOTMatrix Black Face

Connection:

Row Cathode Column Anode

Outer Dimenisons:

22*30*10MM

Luminous Intensity:

50-60mcd

Packaging Details:

EPE+Carton

Supply Ability:

50000pcs/days

Highlight:

Red Dot Matrix LED Display

Square Dot Matrix LED Display

5*7 Dot Matrix LED Display

Product Description

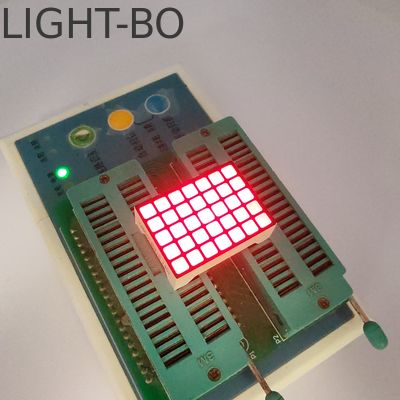

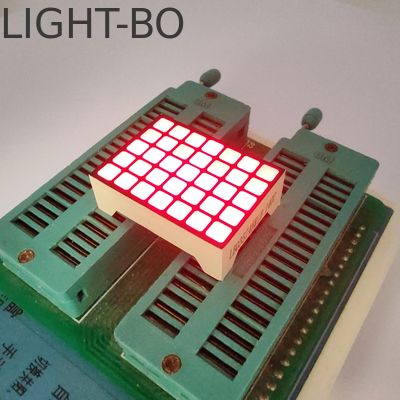

Super Bright Red 5×7 Square DOT Matrix LED Display

High-performance LED display specifically designed for elevator floor indicators and industrial applications.

Product Specifications

5×7 square dot matrix configuration
Emitting dot diameter: 3.39mm

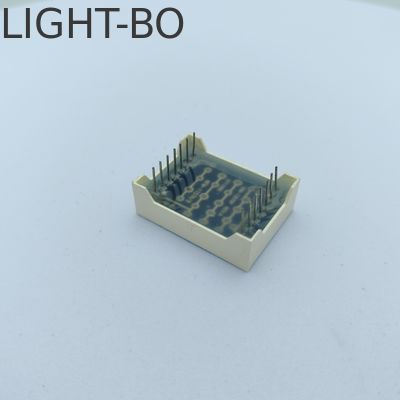

Outer dimensions: 22×30×10mm
Connection: Row Cathode Column Anode
Emitting color: Super Bright Red
CCT: 6000-6500K
Luminous intensity: 50-60mcd
Forward voltage: 1.8-2.2V/LED
Available in multiple colors: red, blue, yellow, green, orange, white, and amber

Technical Parameters by Color Code

Yellow Green (Code: J/JU)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	30		40	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	569		574	nm

Amber/Yellow (Code: Y)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.5	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	585		595	nm

Orange (Code: F)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.4	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	60		80	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	600		605	nm

Super Bright Red (Code: R)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	50		60	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	630		635	nm

Ultra Bright Red (Code: UR)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	1.8		2.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	80		100	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	625		635	nm

Pure Green

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.6		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		180	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	515		525	nm

Ultra Bright Blue (Code: BH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
Spectrum Width of Half Value	△λ	If=10mA		20		nm
Wavelength	Dλ	If=10mA	460		465	nm

Ultra Bright White (Code: WH)

Parameter	Symbol	Condition	Min	Typ	Max	Unit
Forward Voltage	Vf	If=10mA	2.8		3.2	V
Reverse Voltage	Vr	Ir=10uA	5			V
Luminous Intensity	Iv	If=10mA	120		140	mcd
LED Color Temperature	K	If=10mA	5500	20	6800	K
Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm

Absolute Maximum Ratings (Ta=25ºC)

Parameter	Symbol	Ratings	Unit
Forward Current (per dice)	Ipm	20	mA
Reverse Voltage (per dice)	Vr	5	V
Power Dissipation (per dice)	Pm	80	mW
Operating Temperature Range	Topr	-40~+85	ºC
Storage Temperature Range	Tstg	-40~+85	ºC
Solder Temperature (≤3 seconds)	Th	260	ºC

Manufacturer Information

Shenzhen Guangzhibao Technology Co., Ltd. (BRAND: LIGHT-BO) has been a leading provider of OEM and ODM solutions since 2006. With ISO 9001:2015 certification and over 15 years of experience, we deliver innovative, high-quality LED display solutions with competitive pricing and global market advantages.

Applications

Our Ultra Red 5×7 DOT Matrix Display, 7 Segment LED Display, Customized LED Display, and Numeric LED Display are engineered for diverse applications including elevator floor indicators, household appliances, temperature and humidity displays, refrigerator controllers, thermostats, and HVAC systems.
