Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel

Brand Name:	LIGHT-BO
Model Number:	LB20561IWH3B
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T, Western Union,
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Production Capacity:

20,000 Pcs /day

Packing:

Epe+carton

Delivery Date:

5 - 7 Days

Type:

Standard

Character Height:

14.2mm ( 0.56")

Outer Dimensions:

25x19x8mm

Emitting Colour:

Ultra White

Polarity:

Common Anode

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Product Description

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel

Product Overview
Light-Bo’s 2-digit 7-segment LED display is engineered to deliver crisp visibility and reliable performance for a range of electronic devices. With a 0.56-inch (14.2mm) character height and compact dimensions (25×19×8mm), it features striking yellow segments on a black surface, paired with ultra bright white emission—ensuring high readability in diverse environments. Designed with a common anode configuration, this display balances powerful luminous intensity (80-100mcd/LED) with low power consumption (2.8-3.2V/LED), making it ideal for instrument panels, home appliances, digital indicators, and numeric displays.

Main Product Image

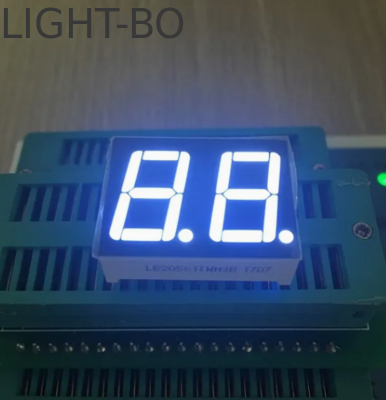

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel 1

Key Features
Ultra Bright White Emission: Delivers vivid white light (80-100mcd) for clear readability, with options for ultra bright red, blue, yellow green, pure green, amber, and orange to match custom needs.
Compact Design: 25×19×8mm dimensions and 0.56-inch (14.2mm) character height fit seamlessly into space-constrained devices like small home appliances and instrument panels.
High Contrast: Yellow segments on a black surface enhance visibility, ensuring digits stand out even in low-light conditions.
Energy Efficient: Operates at 2.8-3.2V/LED with a recommended current of 5-10mA/LED, minimizing power usage while maintaining brightness.
Common Anode Configuration: Simplifies integration into existing circuits, compatible with standard ICs for easy assembly on PC boards.
Durable Performance: Stable operation, long lifespan, and RoHS compliance ensure reliability in daily use—perfect for household and industrial applications.

Detail Image

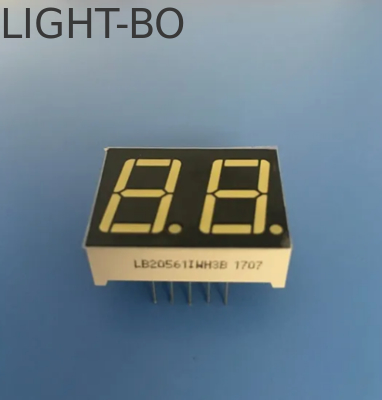

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel 2

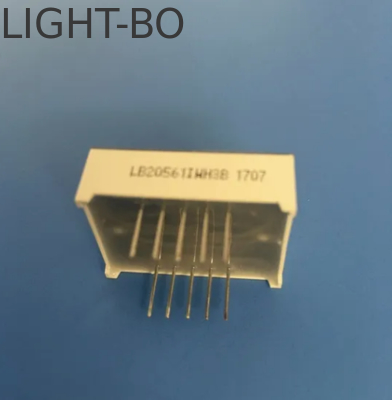

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel 3

Technical Specifications

Specification	Details
Brand Name	Light-Bo
Type	Standard
Digit Count	2 digits
Character Height	14.2mm (0.56 inch)
Outer Dimensions	25×19×8mm
Polarity	Common Anode
Emitting Color	Ultra bright white (multi-color options available)
Surface Design	Yellow segments on black surface
X/Y Ratio	0.29-0.33
Luminous Intensity	80-100mcd/LED
Forward Voltage	2.8-3.2V/LED
Recommended Current	5-10mA/LED
Compliance	RoHS

Applications
Ideal for:
Instrument panels
Home appliances (microwaves, coffee makers, etc.)
Digital numeric displays
Digital indicators
Compact electronic devices requiring 2-digit readouts

Application Scenario Image

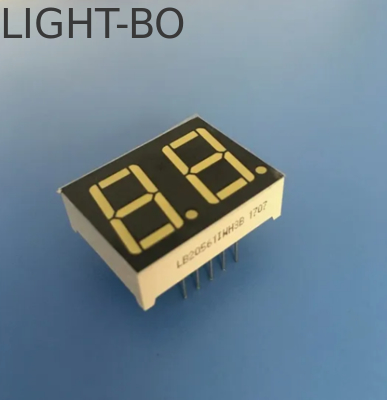

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel 4

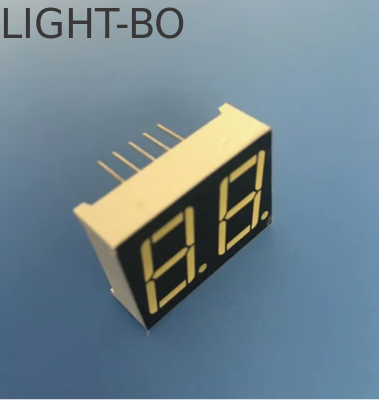

Ultra bright white 0.56" Dual digit 7 segment led display common anode for equipment panel 5

Order & Logistics
Minimum Order: 1000 pieces
Trade Term: EXW
Payment Terms: L/C, T/T, WU
Origin: Guangdong, China (Mainland)
Transport Options: Ocean, Air, Land
Production Capacity: 20,000 pcs/day
Packing: EPE + Carton (secure protection for transit)
Delivery Time: 5-7 days

Why Choose This Display?
Light-Bo’s 2-digit 7-segment display combines ultra bright white emission, compact size, and efficient performance—making it perfect for applications requiring clear 2-digit readouts. Its yellow segments on a black surface, low power requirement, and RoHS compliance ensure reliability and sustainability, while easy assembly simplifies manufacturing. Backed by high production capacity and fast delivery, it’s a trusted solution for your home appliances and instrument panels.
