Light-Bo's customized 3-digit 7-segment LED display, featuring a 0.67-inch (17mm) character height and integrated minus sign, is engineered for versatile performance in home appliances and climate control systems. With robust package dimensions (47×22×8mm) and dual-color options—ultra bright red (620-625nm) and pure green (515-525nm)—it delivers clear visibility for both positive and negative values (thanks to the minus sign). Configured as common cathode (with common anode also available), this display balances high luminous intensity (80-100mcd) with low power consumption, making it ideal for air conditioner controls, refrigerator indicators, and heating/cooling systems.

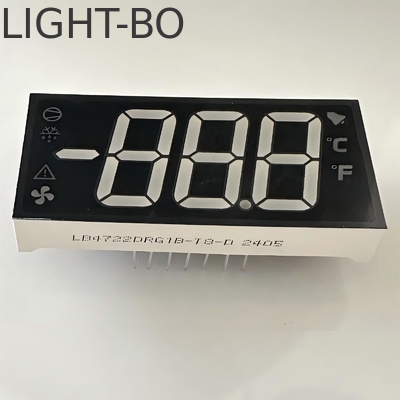

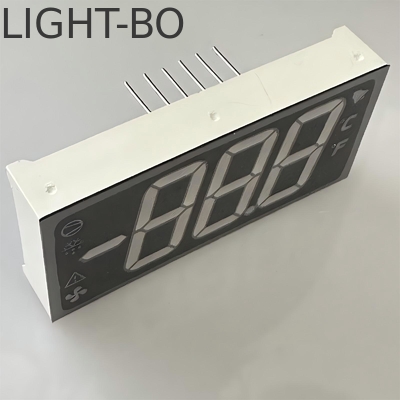

Product Image

Key Features

3-Digit with Minus Sign: Unique design includes a minus sign for displaying negative values (e.g., temperature below zero), critical for climate control systems.

Dual Color Options: Ultra bright red (620-625nm, 1.8-2.3V) and pure green (515-525nm, 2.8-3.3V) cater to diverse appliance aesthetics and functional needs, with additional colors available (blue, ice blue, white, etc.).

Optimal Size: 0.67-inch (17mm) character height and 47×22×8mm dimensions ensure readability without occupying excess space in appliance panels.

High Visibility: 80-100mcd luminous intensity and white segments on a black surface (with protective film) guarantee clarity in bright or dim environments.

Energy Efficient: Low forward current (5-10mA/LED) minimizes power usage, ideal for long-term operation in home appliances.

Easy Integration: Common cathode configuration (common anode optional), IC compatibility, and simple assembly streamline installation into PC boards.

Durable & Compliant: Stable performance, long lifespan, and RoHS certification ensure reliability in household and climate control applications.

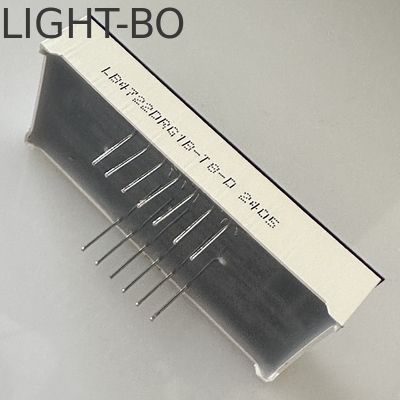

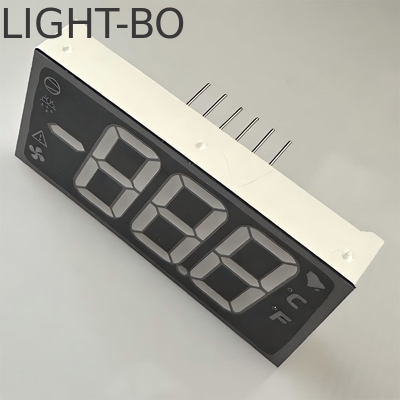

Detail Image

Technical Specifications

Applications

Ideal for:

Air conditioner and refrigerator controls

Heating, cooling, and climate control systems

Home electronic appliances requiring numeric readouts (including negative values)

Temperature indicators and regulatory displays

Order & Logistics

Minimum Order: 1000 pieces

Trade Term: EXW

Payment Terms: T/T, WU

Origin: Guangdong, China (Mainland)

Transport Options: Ocean, Air, Land

Production Capacity: 100,000 pcs/week

Packing: EPE + Carton (secure protection for segments and minus sign)

Delivery Time: 10-15 days

• Absolute Maximum Ratings(Ta=25ºC)

  Parameter	Symbol	Ratings	Unit
  Forward Current(per dice)	Ipm	20	mA
  Reverse Voltage(per dice)	Vr	5	V
  Power Dissipation(per dice)	Pm	80	mW
  Operating Temperature Range	Topr	-40~+85	ºC
  Storage Temperature Range	Tstg	-40~+85	ºC
  Solder Temperature(≤3 seconds)	Th	260	ºC

  Code:Yellow Green- J

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	30		40	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	569		574	nm



  Code:Amber/Yellow -Y

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.5	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	585		595	nm



  Code:Orange -F

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.4	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	60		80	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	600		605	nm



  Code:Super Bright Red -R

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	50		60	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	630		635	nm



  Code:Ultra Bright Red -UR

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	1.8		2.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	80		100	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	625		635	nm



  Code:Pure Green -G

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.6		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		180	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	515		525	nm


  Code:Ultra Bright Blue -BH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  Spectrum With Of Half Value	△λ	If=10mA		20		nm
  Wavelength	Dλ	If=10mA	460		465	nm

•

• Code:Ultra Bright White -WH

  Parameter	Symbol	Condition	Min	Typ	Max	Unit
  Forward Voltage	Vf	If=10mA	2.8		3.2	V
  Reverse Voltage	Vr	Ir=10uA	5			V
  Luminous Intensty	Iv	If=10mA	120		140	mcd
  LED color Temperature	K	If=10mA	5500	20	6800	K
  Chromaticity Coordinates	X/Y	If=10mA	0.29,0.32		0.30,0.33	nm
