15W high efficiency 195x195mm beam angle 120 degrees dultra thin LED downlights for building

Brand Name:	LIGHT-BO
Model Number:	GZB-GFA5W
MOQ:	1000
Price:	Negotiate
Payment Terms:	T/T
Supply Ability:	20000 PCS/Day

Detail Information

Product Description

Detail Information

Place of Origin:

Shenzhen, China

Certification:

ISO9001&RoHS

Power Rating:

15W

Physical Size:

195×195mm

Input Voltage:

AC100-240V

LED Quantity:

75 LEDs

Color Rendering Index (Ra):

≥80

Packaging Details:

EPE+CARTON

Supply Ability:

20000 PCS/Day

Highlight:

15W ultra thin LED downlights

195x195mm LED downlights for building

120 degree beam angle LED downlights

Product Description

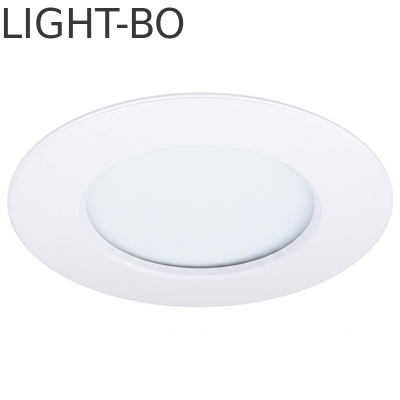

GZB-GFA15W 15W Ultra-Thin LED Downlight - 195x195mm, 120° Beam Angle for Building Indoor Lighting

The GZB-GFA15W ultra-thin LED downlight is a high-efficiency lighting solution engineered for modern building interiors, combining sleek design (195x195mm size) with powerful performance. Operating at 15W with 75 LEDs, it delivers 1275lm of soft, flicker-free light across three adjustable color temperatures (3000K warm white, 4500K natural white, 6000K cool white) and a high color rendering index (Ra≥80)--ensuring true-to-life color representation for spaces like supermarkets, hospitals, and offices.

Key Specifications

Specification	Details
Model Number	GZB-GFA15W
Power Rating	15W (high efficiency for energy savings)
Physical Size	195×195mm (ultra-thin profile for unobtrusive installation)
Input Voltage	AC100-240V (wide range for global compatibility) / 50Hz
LED Quantity	75 LEDs (ensures high lumen output and uniform light)
Color Temperature (CCT)	3000K (warm white), 4500K (natural white), 6000K (cool white)
Color Rendering Index (Ra)	≥80 (high CR for accurate color reproduction)
Luminous Flux	1275lm (bright enough for large spaces)
Beam Angle	120° (wide coverage for uniform lighting)
Power Factor (PF)	≥0.9 (high power efficiency)
Housing Color	Spray white (blends with most ceiling designs)

Core Product Features

1. Exceptional Energy Efficiency & Long Lifespan

80% Light Conversion Rate: Cuts power consumption by 70% compared to traditional lighting
50,000-Hour Lifespan: Lasts 5-10 times longer than traditional downlights

2. Superior Luminous Performance

Soft, Flicker-Free Light: Prevents eye strain with instant start and zero flicker
High Color Rendering (Ra ≥80): Ensures colors appear true to life
120° Wide Beam Angle: Provides broad, uniform coverage without harsh shadows

3. Easy Installation & Strong Compatibility

Retrofit-Friendly Design: Matches traditional downlight installation dimensions
Wide Voltage Compatibility (AC100-240V): Works across global voltage standards

4. Green & Safe Operation

No Harmful Radiation/Substances: Free from UV and IR radiation
Low Heat Emission: Efficient heat dissipation design keeps fixture cool

Applications

Tailored for indoor building lighting where efficiency, durability, and aesthetics matter:

Commercial Spaces: Supermarkets, office buildings, exhibition halls
Public Facilities: Schools, hospitals, municipal buildings
Residential Areas: Living rooms, bedrooms, kitchens

Why Choose the GZB-GFA15W LED Downlight?

Cost Savings: 70% energy reduction and 50,000-hour lifespan lower long-term costs
Versatility: 3 CCT options and 120° beam angle adapt to diverse spaces
Ease of Retrofit: No circuit/ceiling modifications mean fast, low-cost upgrades
