Yellow/Red/Blue Big 10 Segment LED Display Modules, Used for Instrument Panels

These specialized 10-segment LED display modules are engineered for flexible, high-visibility numeric and symbolic readouts across industries—featuring three primary emission colors (yellow, red, blue) and a compact, space-saving form factor (25.4×10.1×7.9mm). Configured as common cathode for seamless integration into standard circuits (from appliance controls to automotive dashboards), they deliver bright, consistent illumination with core advantages like high luminous intensity, extremely low current, and a big viewing angle.

Beyond the primary yellow/red/blue options, the modules support 5 additional colors (yellow green, pure green, pure white, amber, orange) to match diverse design needs, while RoHS compliance and IC compatibility ensure global usability. Ideal for instrument panels and digital indicators, they balance durability (stable performance, long lifespan) with ease of assembly—making them a versatile solution for appliances, automotive, electronics, and industrial equipment.

10-segment configuration: Beyond standard 7-segment displays, the extra 3 segments enable more flexible visual communication—supporting extended numeric symbols (e.g., decimal points, negative signs for temperature readings like "-5°C") or simplified icons (e.g., "ON/OFF" indicators for appliances, "LOW" fuel alerts for cars). This makes it ideal for instrument panels needing precise, multi-functional displays.

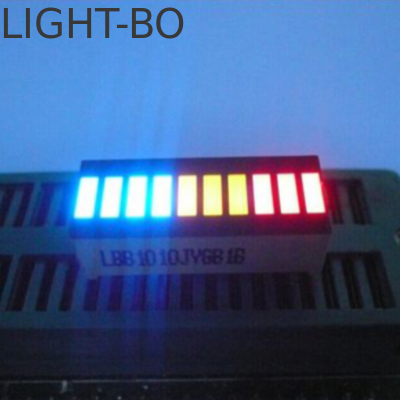

Primary yellow/red/blue for targeted use cases:

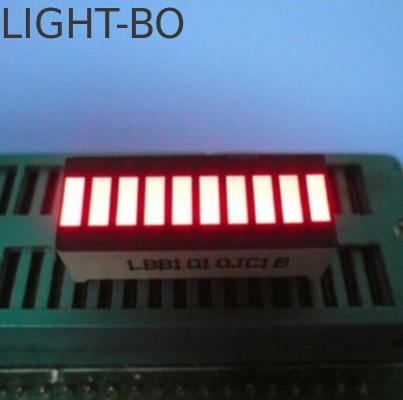

Red: High-contrast for "alert" statuses (e.g., car dashboard "LOW OIL", industrial equipment "ERROR").
Yellow: Soft yet visible for "warning" or ambient readouts (e.g., appliance "HIGH TEMP", queue management "NEXT 5").

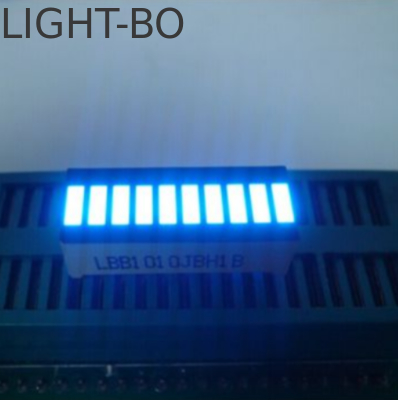

Blue: Modern, sleek for "normal" operation (e.g., TV set-top box "CHANNEL 120", digital clock "08:30").

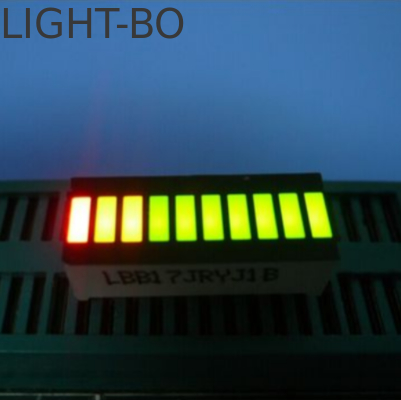

5 additional colors: Cater to niche needs—e.g., pure green for "eco-mode" indicators (appliances), pure white for high-brightness industrial gauges, amber for retro-style automotive dashboards.

High luminous intensity: Cuts through ambient light in diverse environments—from bright kitchen countertops (appliances) to sunny car interiors (dashboards) or industrial workshops (test equipment)—ensuring readability without eye strain.

Big viewing angle: Wide vertical and horizontal visibility guarantees clear readouts from off-center positions (e.g., a driver glancing at the fuel gauge, a technician monitoring a power converter from across a room).

Good consistency & stable performance: Light distributes evenly across all 10 segments, avoiding "dark spots" or flickering. Built with high-quality LED chips to resist voltage fluctuations and environmental wear (e.g., humidity in kitchens, vibration in cars), ensuring long-term reliability.

Low power consumption & extremely low current: Minimizes energy draw, making it suitable for battery-powered devices (e.g., portable thermostats) or 24/7 operated equipment (e.g., refrigerator controls, car dashboards in standby). Aligns with eco-friendly standards for appliances and automotive electronics.

IC compatible: Works seamlessly with common display driver ICs (e.g., 74HC595, TM1638), eliminating the need for custom adapters. Simplifies circuit design for manufacturers across industries.

Easy assembly: Compact 25.4×10.1×7.9mm dimensions and standardized pin layout enable direct mounting on PCBs or sockets—even for space-constrained instrument panels (e.g., small automotive dashboards, compact water heater controls).

RoHS Directive-compliant: Free from restricted substances, ensuring compliance with global regulations (EU CE, US FCC, automotive ECE) for export to key markets. Critical for industries like automotive and medical equipment with strict safety standards.

These modules excel in scenarios requiring flexible, durable 10-segment displays—spanning 5 core sectors:

• 1. Home Appliances
  Air conditioners (temperature settings, mode codes), refrigerators (internal temperature, door-open alerts), water heaters (heating status, temperature), electric ovens (timer, heat levels), microwaves (countdown, power), rice cookers (cooking stage), induction cookers (heat intensity), cooker hoods (fan speed).
• 2. Automotive
  Car dashboards (fuel gauge, speedometer auxiliary readouts, battery voltage), parking sensors (distance indicators), and warning lights (e.g., "LOW BRAKE FLUID" in red).
• 3. Consumer Electronics
  TV set-top boxes (channel numbers, signal strength), DVD players (playback time, track numbers), and digital displays for portable devices (e.g., Bluetooth speakers, smart thermostats).
• 4. Industrial Equipment
  Test and measurement devices (calibration values, pressure), power converters (voltage/current), gaming machines (score displays), thermostats/humidity controllers (environmental readings), temperature indicators (industrial ovens), inverters (power output), digital timers (production lines).
• 5. Public & Specialized Use
  Queue management systems (ticket numbers), interest rate screens (bank lobbies), digital calendars (offices), oil/gas price indicators (stations), and digital clock indicators (public spaces).

These modules stand out for their cross-industry versatility and targeted performance:

• The 10-segment design enables more functional readouts than standard 7-segment displays, suiting complex needs like negative temperatures or warning symbols.
• Multi-color options and common cathode polarity simplify integration into diverse products—from refrigerators to cars—reducing the need for multiple display SKUs.
• Energy efficiency, durability, and RoHS compliance meet the strict standards of industries like automotive and industrial equipment, while easy assembly speeds up production.

For manufacturers across appliances, automotive, electronics, or industrial sectors seeking a flexible, reliable 10-segment display solution, these modules deliver consistent performance, global compatibility, and value.
